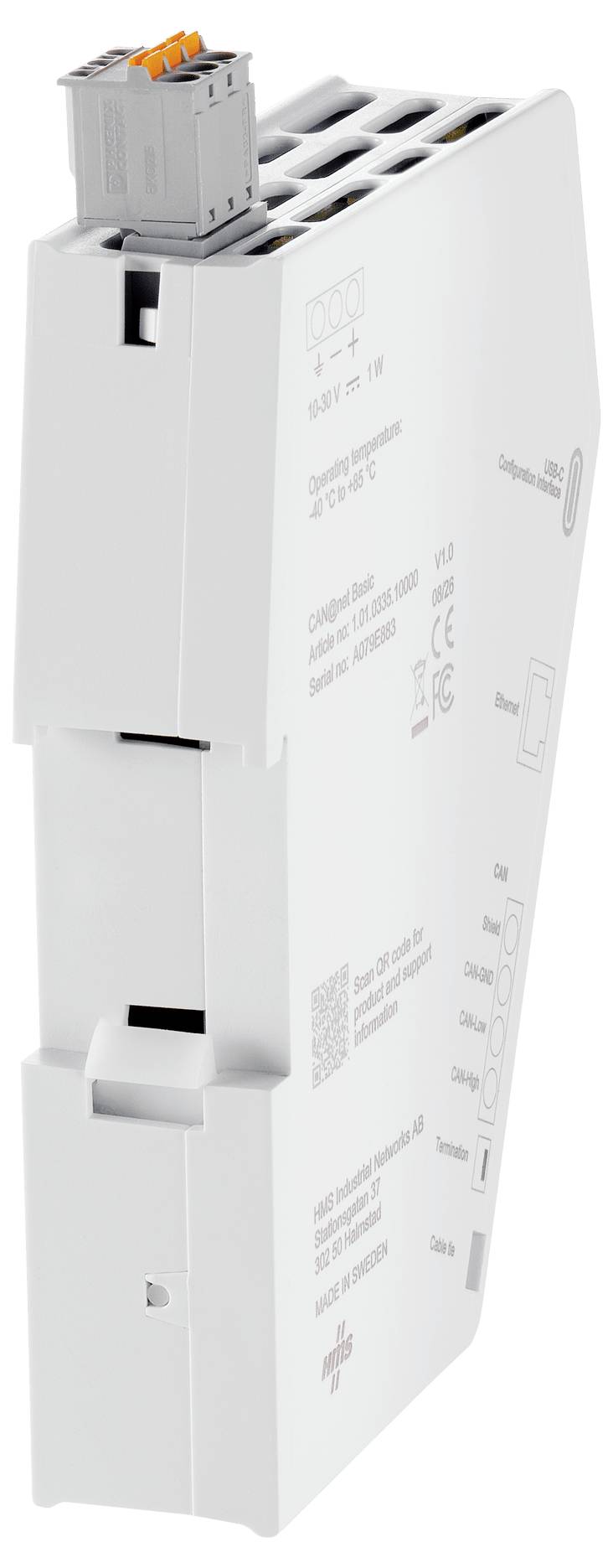

Ixxat 1.01.0335.10000 CAN@net Basic CAN bus 24 V DC 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 419.33 / piece)
€ 419.33
plus VAT.
Highlights & Details
Ixxat can@net basic – CAN/CAN FD Ethernet gateway, PC-CAN interface and CAN Ethernet CAN bridge in one device
- Simple coupling of CAN/CAN FD systems and devices
- Enables system expansion and tree/star topologies
- Bridging long distances with CAN-to-Ethernet-to-CAN
- Filter and ID implementation functionality
- Line protection by galvanic insulation
Technical specifications
- CAN baud rate: 20 to 1000 kbps; CAN FD data rate: 500 to 8000 kbps
- Ethernet: 10BASE-T/100BASE-TX (10/100 Mbps); UDP/IP with DHCP, UDP broadcast/multicast
- ASCII Interface Mode: All systems with UDP/TCP IPv4 support

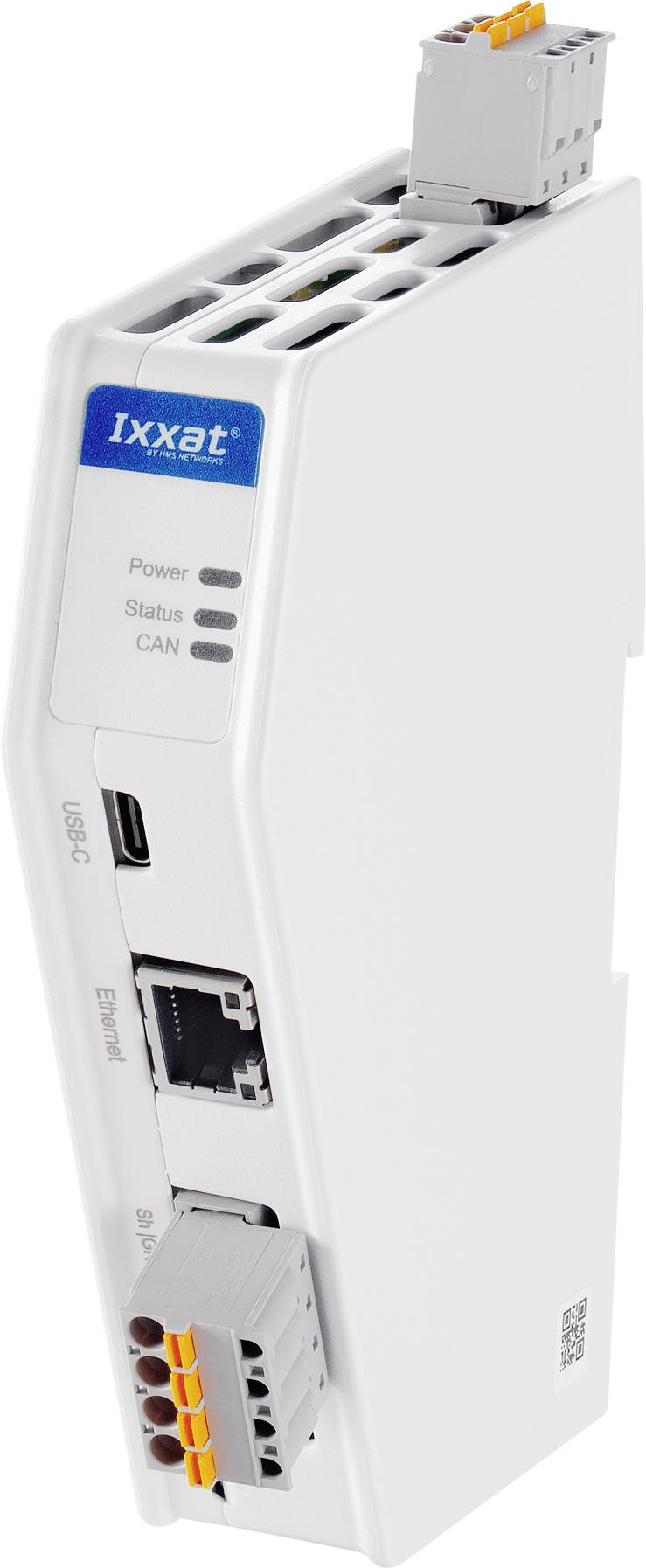

- Connections: 4-pin push-in spring connector (CAN), 3-pin push-in spring connector (power supply), RJ45 (Ethernet), USB-C.
- Galvanic isolation: CAN: 2.5 kV for 1 minute; Ethernet: 1.5 kV for 1 minute
- Product type
CAN bus
- Type
CAN@net Basic
- Operating voltage
24 V DC
- Manufacturer part #
1.01.0335.10000
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3763285 Ixxat 1.01.0335.10000 CAN@net Basic CAN bus 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3763285 Ixxat 1.01.0335.10000 CAN@net Basic CAN bus 24 V DC 1 pc(s)
Description
The Ixxat CAN@net Basic is a CAN/CAN FD-to-Ethernet gateway with a CAN-FD channel. It enables easy access to CAN FD systems via Ethernet and can exchange messages between spatially separated CAN networks via UDP/IP as a CAN Ethernet CAN bridge.
With the help of filter, ID translation and data mapping functions, traffic can be processed and optimized in a targeted manner. The configuration of the device is done comfortably via USB-C with a Windows configuration tool.
The galvanic separation reliably increases the protection of connected devices and network segments from damage to the electronics through voltage spikes.
This text is machine translated.
With the help of filter, ID translation and data mapping functions, traffic can be processed and optimized in a targeted manner. The configuration of the device is done comfortably via USB-C with a Windows configuration tool.
The galvanic separation reliably increases the protection of connected devices and network segments from damage to the electronics through voltage spikes.
This text is machine translated.
Hints
Not included: Device Configuration Cable (USB-C)
