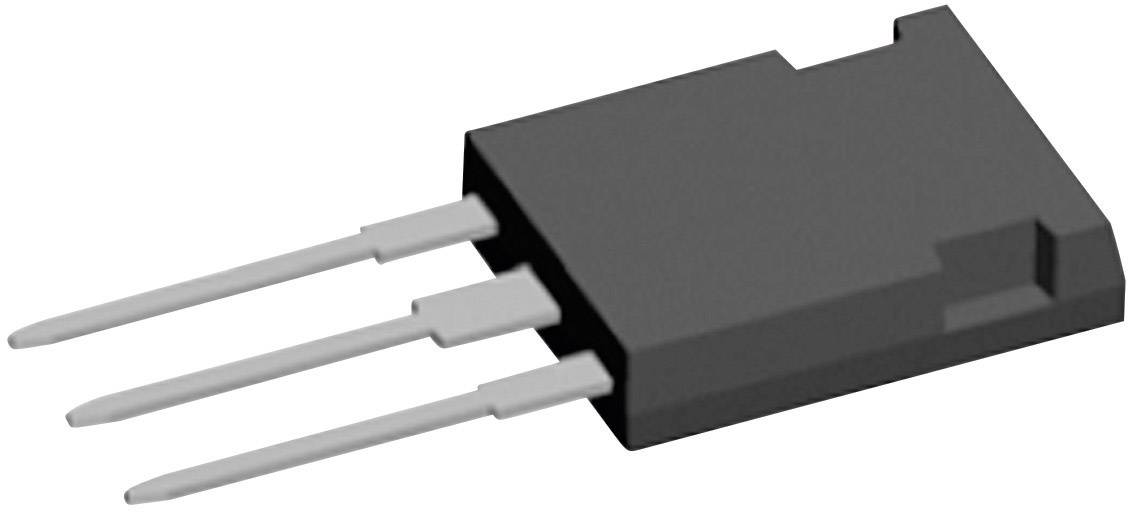

Image similar
1/2
Image similar
IXYS CLA80E1200HF Thyristor (SCR) PLUS 247 3 1200 V 80 A
EAN:
Part number:
Item no:
Product type
Thyristor (SCR)
Enclosure
PLUS 247 3
U(DRM)
1200 V
I(T)(RMS)
126 A
Forward voltage U(F)
1.77 V
Datasheet (PDF)
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Technical specifications
- Type
CLA80E1200HF
- Product type
Thyristor (SCR)
- Enclosure
PLUS 247 3
- Manufacturer
IXYS
- Manuf. code
IXY
- U(DRM)
1200 V
- Gate trigger voltage U(GT)
1.5 V
- Gate trigger current I(GT)
38 mA
- Average forward current I(T)(AV)
80 A
- I(T)(RMS)
126 A
- Forward voltage U(F)
1.77 V
- I(d)
50 µA
- I(H)
100 mA
- I(TSM 50 Hz)
900 A
- I(TSM 60 Hz)
970 A
- Mounting type
Through-hole
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+150 °C
- RoHS-compliant
