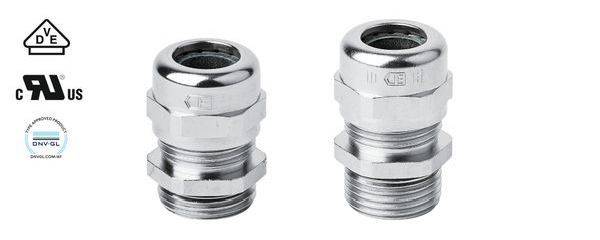

Jacob 50.620 M-L Cable gland built-in strain relief M20 x 1.5 Brass 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M20 x 1.5
Material
Brass
Clamp Ø
9 mm
Terminal Ø (max.)
13 mm
Technical specifications
- Product type
Cable gland
- Features
built-in strain relief
- External thread
M20 x 1.5
- Material
Brass
- Clamp Ø
9 mm
- Terminal Ø (max.)
13 mm
- Thread length
10 mm
- Min. temperature
-20 °C
- Max. temperature
100 °C
- Spanner size
22 mm
- Halogen-free
No
- Content
1 pc(s)
- Manufacturer part #
50.620 M-L
- Type
50.620 M-L
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3023708 Jacob 50.620 M-L Cable gland built-in strain relief M20 x 1.5 Brass 1 pc(s)
Description
Integrated strain relief, twist protection, large sealing and clamping area, easy to install, with Viton sealing ring and Viton O-ring on request, *IP69K tested for M12 - M25, M50, M63, long connection thread, long cable gland Metric brass
This text is machine translated.
This text is machine translated.
