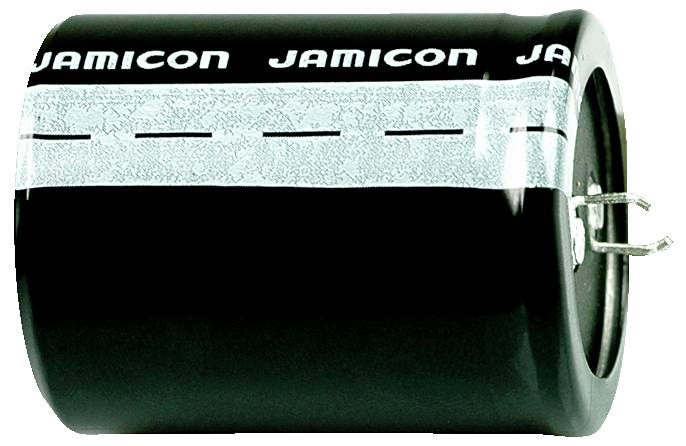

Jamicon Electrolytic capacitor Radial lead 10 mm 10.000 µF 50 V 20 % (Ø x H) 30 mm x 35.0 mm 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
10.000 µF
Nominal voltage
50 V
Datasheet (PDF)
Highlights & Details
Jamicon Elko 10000UF 50V 30x35mm
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series LS
- Design_1: Radial
- Applications: Recommended Applications: Apply to switched-mode power supplies and other industrial/commercial sectors
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: Snap-in
- Delivery form_1: Loose
- Connections_1: 2-pin
- Pitch_1:10 mm
- Capacity 10,000 µF
- Capacity_1: 10,000
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.35
- Apparent resistance 4 Ohm
- Nominal voltage DC 50 V
- Lifetime_1: 2,000 h
- Packaging type
Bulk
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
10 mm
- Dim
(Ø x H) 30 mm x 35.0 mm
- Capacity (elec.)
10.000 µF
- Nominal voltage
50 V
- Tolerance ±
20 %
- Height
35.0 mm
- (Ø)
30 mm
- Content
1 pc(s)
- Material
Aluminium
- Width
30 mm
- Length
35.0 mm
- RoHS-compliant
Yes
- Type
TLS109M050S1A5S35L
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
25 °C
Documents & Downloads
Datasheet
Datasheet 3462957 Jamicon Electrolytic capacitor Radial lead 10 mm 10.000 µF 50 V 20 % (Ø x H) 30 mm x 35.0 mm 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3462957 Jamicon Electrolytic capacitor Radial lead 10 mm 10.000 µF 50 V 20 % (Ø x H) 30 mm x 35.0 mm 1 pc(s) Bulk
Description
Jamicon series LSW electrolytic capacitors Snap-in RM 10
