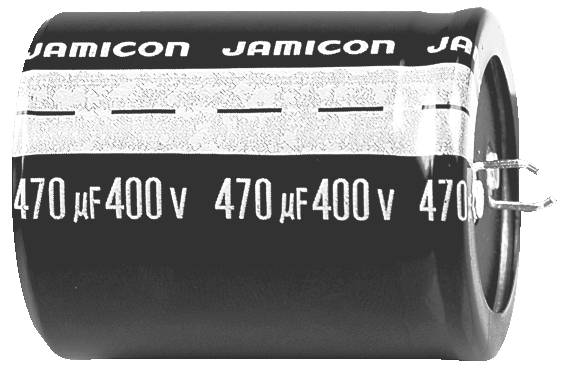

Jamicon Electrolytic capacitor Radial lead 10 mm 470 µF 400 V 20 % (Ø x H) 35 mm x 45.0 mm 1 pc(s) Single
Part number:
Item no:
Packaging type
Single
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
470 µF
Nominal voltage
400 V
Datasheet (PDF)
Highlights & Details
Jamicon Elko 470uF 400V 35x45mm
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series HS
- Design_1: Radial
- Applications: Recommended for switched-mode power supplies and other high-temperature applications in industry
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: Snap-in
- Delivery form_1: Loose
- Connections_1: 2-pin
- Pitch_1:10 mm
- Capacity 470 µF
- Capacity_1: 470
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.15
- Apparent resistance 6 Ohm
- Nominal voltage DC 400 V
- Lifetime_1: 2,000 h
- Packaging type
Single
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
10 mm
- Dim
(Ø x H) 35 mm x 45.0 mm
- Capacity (elec.)
470 µF
- Nominal voltage
400 V
- Tolerance ±
20 %
- Height
45.0 mm
- (Ø)
35 mm
- Content
1 pc(s)
- Material
Aluminium
- Width
35 mm
- Length
45 mm
- RoHS-compliant
Yes
- Type
THS477M400S1A5T45L
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3462952 Jamicon Electrolytic capacitor Radial lead 10 mm 470 µF 400 V 20 % (Ø x H) 35 mm x 45.0 mm 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 3462952 Jamicon Electrolytic capacitor Radial lead 10 mm 470 µF 400 V 20 % (Ø x H) 35 mm x 45.0 mm 1 pc(s) Single
Description
Jamicon flat cap. Electrolytic capacitor snap-in RM10 10
