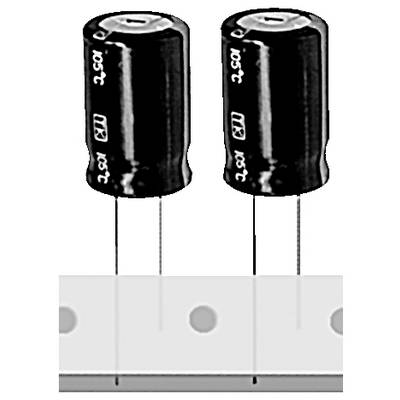

Jamicon Electrolytic capacitor Radial lead 5 mm 10 µF 63 V DC 20 % (Ø x H) 5 mm x 11.0 mm 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
10 µF
Nominal voltage
63 V DC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.06142
50
9% = € 0.01
€ 0.05582
100
13% = € 0.01
€ 0.05359
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.06142 / piece)
€ 0.06
plus VAT.
Highlights & Details
Jamicon Elko 10uF 63V 5x11 mm RM2/5 belt
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series TK
- Design_1: Radial
- Applications: For general purposes, decoupling, bypass and filter circuits in consumer electronics
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: THT
- Delivery form_1: Taped
- Connections_1: 2-pin
- Properties_1: • Small built
- • In an aluminum cup, insulated
- • Radial connections: Grid spacing on cup 2mm, at belt 5mm
- • Extended temperature range (up to 105°C)
- • High reliability
- Wire diameter 0.5 mm.
- Pitch_1:5 mm
- Capacity 10 µF
- Capacity_1: 10
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.1
- Leakage current 4 µA
- Ripple current 39 mA
- Nominal voltage DC 63 V
- Surge voltage 79 V
- Lifetime_1: 2,000 h
- Belt pitch 5 mm
- Packaging type
Tape
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
5 mm
- Dim
(Ø x H) 5 mm x 11.0 mm
- Capacity (elec.)
10 µF
- Nominal voltage
63 V DC
- Tolerance ±
20 %
- Height
11.0 mm
- (Ø)
5 mm
- Content
1 pc(s)
- Material
Aluminium
- Width
5 mm
- Length
11.0 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Type
JTK106M063T1AMC11L
Documents & Downloads
Datasheet
Datasheet 3527518 Jamicon Electrolytic capacitor Radial lead 5 mm 10 µF 63 V DC 20 % (Ø x H) 5 mm x 11.0 mm 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3527518 Jamicon Electrolytic capacitor Radial lead 5 mm 10 µF 63 V DC 20 % (Ø x H) 5 mm x 11.0 mm 1 pc(s) Tape
Description
Miniature electrolytic capacitors radial 63V 20% 105°C
