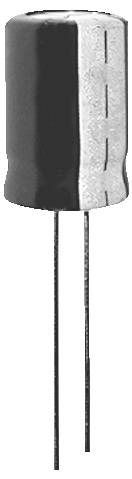

Jamicon Electrolytic capacitor Radial lead 7.5 mm 2.200 µF 25 V 20 % (Ø x H) 16 mm x 25.0 mm 1 pc(s) Piece
Part number:
Item no:
Packaging type
Piece
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
2.200 µF
Nominal voltage
25 V
Datasheet (PDF)
Highlights & Details
Jamicon Elko 2200uF 25V 16x25mm RM7.5
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series: SK
- Design_1: Radial
- Applications: For general purposes, decoupling, bypass and filter circuits in consumer electronics
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: Aluminium cups in vinyl cover
- Wire diameter 0.8 mm.
- Pitch_1:7.5 mm
- Capacity 2,200 µF
- Capacity_1: 2,200
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.14
- Leakage current 4 µA
- Ripple current 1,540 mA
- Nominal voltage DC 25 V
- Surge voltage 32 V
- Lifetime_1: 1,000 h
- Packaging type
Piece
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
7.5 mm
- Dim
(Ø x H) 16 mm x 25.0 mm
- Capacity (elec.)
2.200 µF
- Nominal voltage
25 V
- Tolerance ±
20 %
- Height
25.0 mm
- (Ø)
16 mm
- Content
1 pc(s)
- Width
16 mm
- Length
25.0 mm
- RoHS-compliant
Yes
- Max. temperature
85 °C
- Type
JSK228M025S1G5M25L
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3462932 Jamicon Electrolytic capacitor Radial lead 7.5 mm 2.200 µF 25 V 20 % (Ø x H) 16 mm x 25.0 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3462932 Jamicon Electrolytic capacitor Radial lead 7.5 mm 2.200 µF 25 V 20 % (Ø x H) 16 mm x 25.0 mm 1 pc(s) Piece
Description
Miniature electrolytic capacitors radial 25V 20% 85°C
