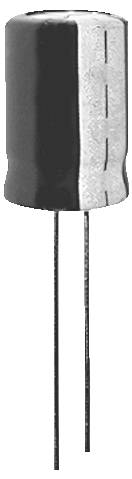

Jamicon Electrolytic capacitor Radial lead 7.5 mm 4.700 µF 25 V 20 % (Ø x H) 18 mm x 35.0 mm 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
4.700 µF
Nominal voltage
25 V
Datasheet (PDF)
Highlights & Details
Jamicon electrolytic capacitor 4700UF 25V 18x35mm RM7.5
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series: SK
- Design_1: Radial
- Applications: For general purposes, decoupling, bypass and filter circuits in consumer electronics
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: Aluminium cups in vinyl cover
- Wire diameter 0.8 mm.
- Pitch_1:7.5 mm
- Capacity 4,700 µF
- Capacity_1: 4,700
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.14
- Leakage current 4 µA
- Ripple current 2,380 mA
- Nominal voltage DC 25 V
- Surge voltage 32 V
- Lifetime_1: 1,000 h
- Packaging type
Bulk
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
7.5 mm
- Dim
(Ø x H) 18 mm x 35.0 mm
- Capacity (elec.)
4.700 µF
- Nominal voltage
25 V
- Tolerance ±
20 %
- Height
35.0 mm
- (Ø)
18 mm
- Content
1 pc(s)
- Material
Aluminium
- Width
18 mm
- Length
35.0 mm
- RoHS-compliant
Yes
- Max. temperature
85 °C
- Type
JSK478M025S1G5M32L
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3462935 Jamicon Electrolytic capacitor Radial lead 7.5 mm 4.700 µF 25 V 20 % (Ø x H) 18 mm x 35.0 mm 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3462935 Jamicon Electrolytic capacitor Radial lead 7.5 mm 4.700 µF 25 V 20 % (Ø x H) 18 mm x 35.0 mm 1 pc(s) Bulk
Description
Miniature electrolytic capacitors radial 25V 20% 85°C
