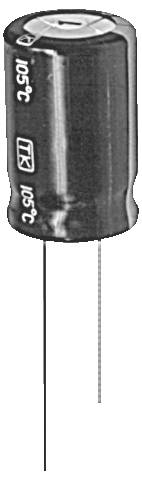

Jamicon JTK106M063S1AMC11L // TKR100M1JD11M Electrolytic capacitor Radial lead 2 mm 10 µF 63 V 20 % (Ø x H) 5 mm x 11.0
Part number:
Item no:
Packaging type
Bulk
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
10 µF
Nominal voltage
63 V
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series TK
- Design_1: Radial
- Applications: For general purposes, decoupling, bypass and filter circuits in consumer electronics
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: Small design
- In an aluminum cup, insulated
- Radial connections
- Extended temperature range (up to 105°C)
- High reliability
- Wire diameter 0.5 mm.
- Pitch_1:2 mm
- Capacity 10 µF
- Capacity_1: 10
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.1
- Leakage current 4 µA
- Ripple current 55 mA
- Nominal voltage DC 63 V
- Surge voltage 79 V
- Lifetime_1: 2,000 h
- Packaging type
Bulk
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
2 mm
- Dim
(Ø x H) 5 mm x 11.0 mm
- Capacity (elec.)
10 µF
- Nominal voltage
63 V
- Tolerance ±
20 %
- Height
11.0 mm
- (Ø)
5 mm
- Content
1 pc(s)
- Material
Aluminium
- Width
5 mm
- Length
11.0 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Type
JTK106M063S1AMC11L // TKR100M1JD11M
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-55 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3462971 Jamicon JTK106M063S1AMC11L // TKR100M1JD11M Electrolytic capacitor Radial lead 2 mm 10 µF 63 V 20 % (Ø x H) 5 mm x 11.0
User & Safety Instructions
User & Safety Instructions 3462971 Jamicon JTK106M063S1AMC11L // TKR100M1JD11M Electrolytic capacitor Radial lead 2 mm 10 µF 63 V 20 % (Ø x H) 5 mm x 11.0
Description
Miniature electrolytic capacitors radial 63V 20% 105°C
