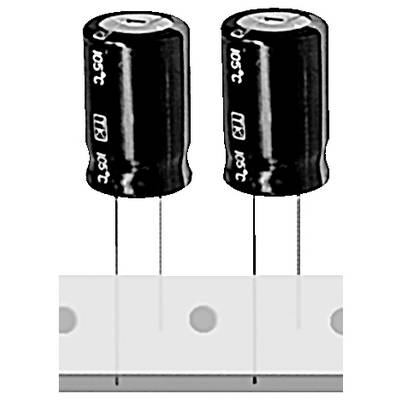

Jamicon JTK477M035T1GMH16L // TKP471M1VG16M Electrolytic capacitor Radial lead 5 mm 470 µF 35 V DC 20 % (Ø x H) 10 mm x
Part number:
Item no:
Packaging type
Tape
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
470 µF
Nominal voltage
35 V DC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 0.22628
50
9% = € 0.02
€ 0.20566
100
13% = € 0.03
€ 0.19743
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 0.22628 / piece)
€ 0.68
plus VAT.
14-day return policy included
Technical specifications
- ESD Packaging: No ESD
- Series TK
- Design_1: Radial
- Applications: For general purposes, decoupling, bypass and filter circuits in consumer electronics
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: THT
- Delivery form_1: Taped
- Connections_1: 2-pin
- Properties_1: • Small design
- • In an aluminum cup, insulated
- • Radial connections: 5 mm cup, 5 mm belt
- • Extended temperature range (up to 105°C)
- • High reliability
- Wire diameter 0.6 mm.
- Pitch_1:5 mm
- Capacity 470 µF
- Capacity_1: 470
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.12
- Leakage current 4 µA
- Ripple current 430 mA
- Nominal voltage DC 35 V
- Surge voltage 44 V
- Lifetime_1: 2,000 h
- Belt pitch 5 mm
- Packaging type
Tape
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
5 mm
- Dim
(Ø x H) 10 mm x 16.0 mm
- Capacity (elec.)
470 µF
- Nominal voltage
35 V DC
- Tolerance ±
20 %
- Height
16.0 mm
- (Ø)
10 mm
- Content
1 pc(s)
- Material
Aluminium
- Width
10 mm
- Length
16 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Type
JTK477M035T1GMH16L // TKP471M1VG16M
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3523370 Jamicon JTK477M035T1GMH16L // TKP471M1VG16M Electrolytic capacitor Radial lead 5 mm 470 µF 35 V DC 20 % (Ø x H) 10 mm x
User & Safety Instructions
User & Safety Instructions 3523370 Jamicon JTK477M035T1GMH16L // TKP471M1VG16M Electrolytic capacitor Radial lead 5 mm 470 µF 35 V DC 20 % (Ø x H) 10 mm x
Description
Miniature electrolytic capacitors radial 35V 20% 105°C
