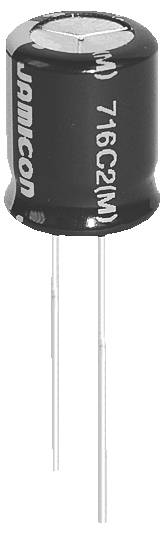

Jamicon JTL108M025S1ABK20L // TLR102M1EI20R Electrolytic capacitor Radial lead 5 mm 1.000 µF 25 V 20 % 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
1.000 µF
Nominal voltage
25 V
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series TL
- Design_1: Radial
- Applications: Suitable for EVG, adapter and switched-mode power supply
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Characteristics_1: Low impedance and long life with a continuous load of 5000 hours.
- Wire diameter 0.6 mm.
- Pitch_1:5 mm
- Capacity 1,000 µF
- Capacity_1: 1,000
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.14
- Leakage current 3 µA
- Ripple current 1.58 mA
- Equivalent Series Resistance (ESR): 0.057 ohms
- Nominal voltage DC 25 V
- Surge voltage 32 V
- Lifetime_1: 5,000 h
- Packaging type
Bulk
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
5 mm
- Capacity (elec.)
1.000 µF
- Nominal voltage
25 V
- Tolerance ±
20 %
- Height
20.0 mm
- Content
1 pc(s)
- Material
Aluminium
- RoHS-compliant
Yes
- Type
JTL108M025S1ABK20L // TLR102M1EI20R
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
55 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3463012 Jamicon JTL108M025S1ABK20L // TLR102M1EI20R Electrolytic capacitor Radial lead 5 mm 1.000 µF 25 V 20 % 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3463012 Jamicon JTL108M025S1ABK20L // TLR102M1EI20R Electrolytic capacitor Radial lead 5 mm 1.000 µF 25 V 20 % 1 pc(s) Bulk
Description
Jamicon electrolytic capacitors radial
