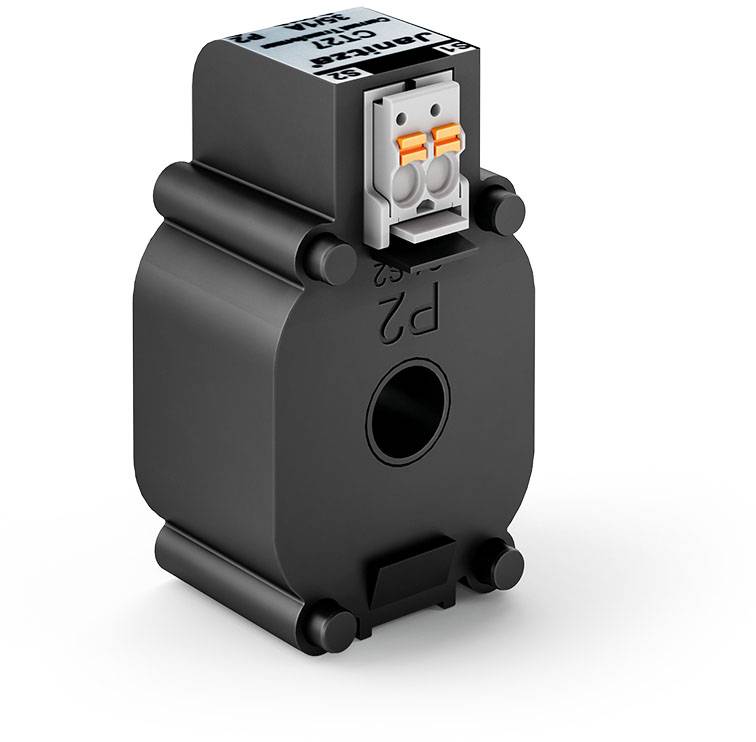

Janitza CT27-35 1503080 3-phase current transformer Primary current 35 A Secondary current 1 A 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 42.01 / piece)
€ 42.01
plus VAT.
Technical specifications
- Product type
3-phase current transformer
- Primary current
35 A
- Secondary current
1 A
0.2 VA
- Type
CT27-35
- Dim
(L x W x H) 27 x 23 x 46 mm
- Weight
50 g
- Factory colour
Black
- Width
23 mm
- Height
46 mm
- Length
27 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2452084 Janitza CT27-35 1503080 3-phase current transformer Primary current 35 A Secondary current 1 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2452084 Janitza CT27-35 1503080 3-phase current transformer Primary current 35 A Secondary current 1 A 1 pc(s)
Description
Plug-on current transformer gear ratios: 35/1A; 50Hz Icth: cont. Limit current 120% Ith. therm. Limit current 60xIn/1s conductor cross-section 0,5mm² Ambient temperature 45°C max. standard IEC60044-1 material PA6.6 cable gland Ø 7.5 mm
This text is machine translated.
This text is machine translated.
Features
- Compact current transformer
- Especially suitable for digital measuring devices
- Current transformer according to IEC 61869-2
- Gear ratios 35/1, 64/1 A, class 1
- Primary window can be used for insulated cable Ø 7.5 mm
- For use on a 3-phase circuit breaker with a phase spacing of 17.5 mm
- DIN rail mounting (35 mm) via rail clamp (optional)
- Connection of several converters of this series possible (Lego converters)
- This text is machine translated.
