Buy Janitza KUW1/40-150 1503322 Cable current transformer Primary current 150 A Secondary current 1 A Line feed-through diam

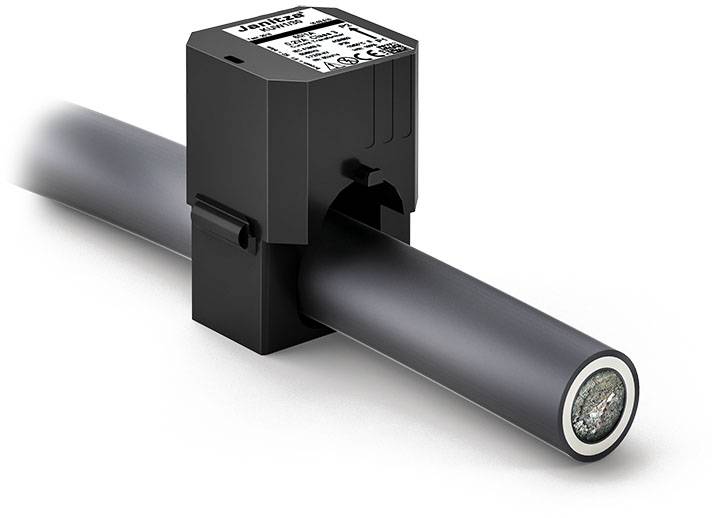

A small, rectangular sensor that encircles a pipe. Technical specifications are printed on the sensor.

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 109.24 / piece)

€ 109.24

plus VAT.

Report legal concerns

Highlights & Details

Cable conversion transformer 150/1A-Class 1

Line feed-through diameter 18 mm

Technical specifications

Product type: Cable current transformer

Primary current: 150 A

Secondary current: 1 A

: 0.2 VA

Line feed-through diameter: 18 mm

Type: KUW1/40-150

Weight: 400 g

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Primary current

Power

Secondary current

Line feed-through diameter

Janitza KUW1/40-150 1503322 Cable current transformer Primary current 150 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:2452093

This article

150 A

0.2 VA

1 A

18 mm

Janitza KUW1/40-100 1503320 Cable current transformer Primary current 100 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:2452091

100 A

0.2 VA

1 A

18 mm

Janitza KUW1/40-125 1503321 Cable current transformer Primary current 125 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:2452092

125 A

0.2 VA

1 A

18 mm

Janitza KUW1/40-150 1503329 Cable current transformer Primary current 150 A Secondary current 5 A Line feed-through diameter:18 mm 1 pc(s)

Item no:2452094

150 A

1 VA

5 A

18 mm

Janitza KUW2/40-200 1503351 Cable current transformer Primary current 200 A Secondary current 1 A Line feed-through diameter:28 mm 1 pc(s)

Item no:2452095

200 A

0.2 VA

1 A

28 mm

Janitza KUW2/40-250 1503352 Cable current transformer Primary current 250 A Secondary current 1 A Line feed-through diameter:28 mm 1 pc(s)

Item no:2452096

250 A

0.2 VA

1 A

28 mm

Janitza KUW2/40-250 1503353 Cable current transformer Primary current 250 A Secondary current 5 A Line feed-through diameter:28 mm 1 pc(s)

Item no:2452097

250 A

1 VA

5 A

28 mm

Janitza KUW2/40-400 1503356 Cable current transformer Primary current 400 A Secondary current 1 A Line feed-through diameter:28 mm 1 pc(s)

Item no:2452098

400 A

0.2 VA

1 A

28 mm

Janitza KUW2/40-400 1503357 Cable current transformer Primary current 400 A Secondary current 5 A Line feed-through diameter:28 mm 1 pc(s)

Item no:2452099

400 A

1 VA

5 A

28 mm

Janitza KUW4/60-400 1503369 Cable current transformer Primary current 400 A Secondary current 5 A Line feed-through diameter:42 mm 1 pc(s)

Item no:2452100

400 A

0.5 VA

5 A

42 mm

Documents & Downloads

Datasheet

Datasheet 2452093 Janitza KUW1/40-150 1503322 Cable current transformer Primary current 150 A Secondary current 1 A Line feed-through diam

User & Safety Instructions

User & Safety Instructions 2452093 Janitza KUW1/40-150 1503322 Cable current transformer Primary current 150 A Secondary current 1 A Line feed-through diam

Description

150/1A; 0.2 VA; Class 1 Ith 60xIn/1 sOverload capability: 100% permanent Protection class: E (max. 120°) Protection class: IP20 Ambient temperature: -5....+40°C Primary conductor: Max. diam. 18mm connection: L=3m cable 0,5mm²TQ 40

This text is machine translated.

Features

Especially suitable for digital measuring devices
Particularly fast mounting
For use with insulated cables up to 2 x 42 mm max.
Gear ratios of 60 ... 1,000 / 1 A or 150 ... 1,000 / 5 A.
Includes color-coded secondary cables
Additional fixing of the converter by two UV-resistant cable ties included in delivery
Suitable for subsequent installation, since the primary circuit does not need to be separated
ideal for use in very compact installation spaces
