Name: JBC Tools C120007 Desoldering tip Blade shaped Tip size 3.5 mm Content 1 pc(s)
Brand: JBC Tools
SKU: 3780303

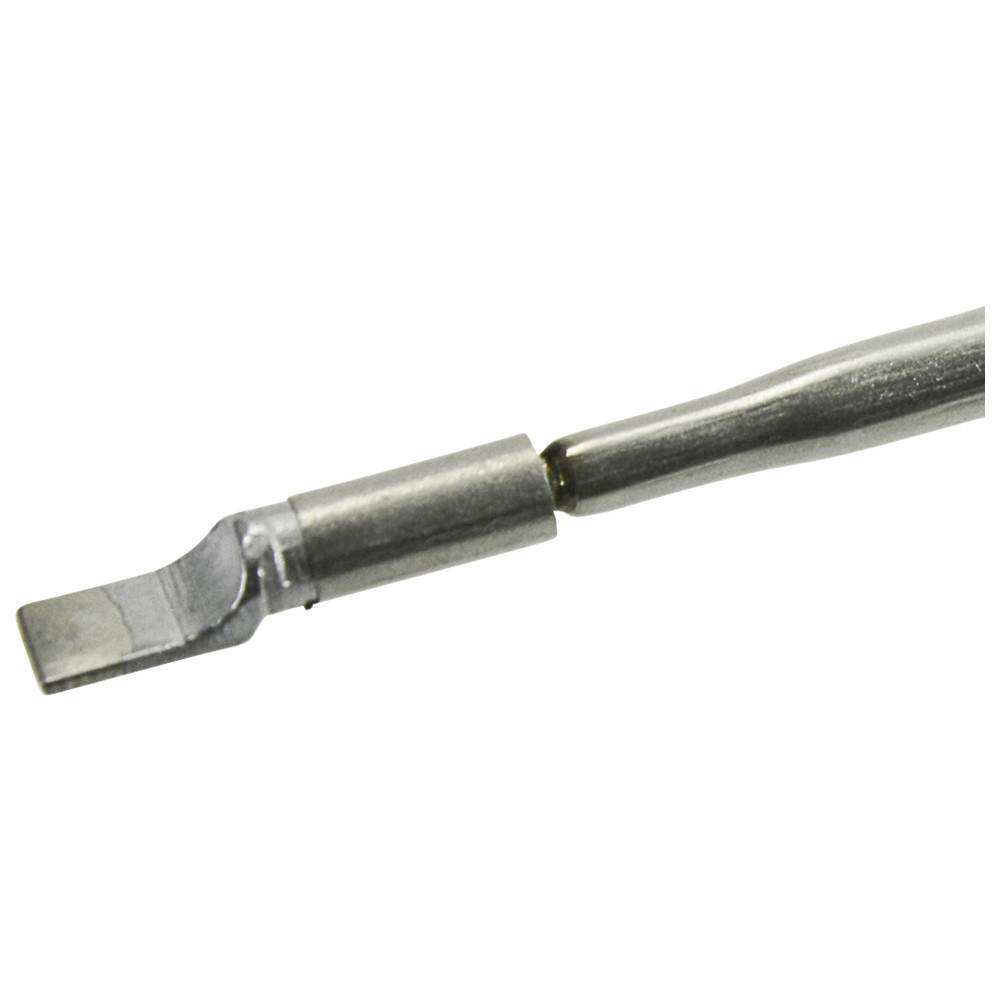

Close-up of a metal soldering iron tip with a flat chisel-shaped end on a white background.

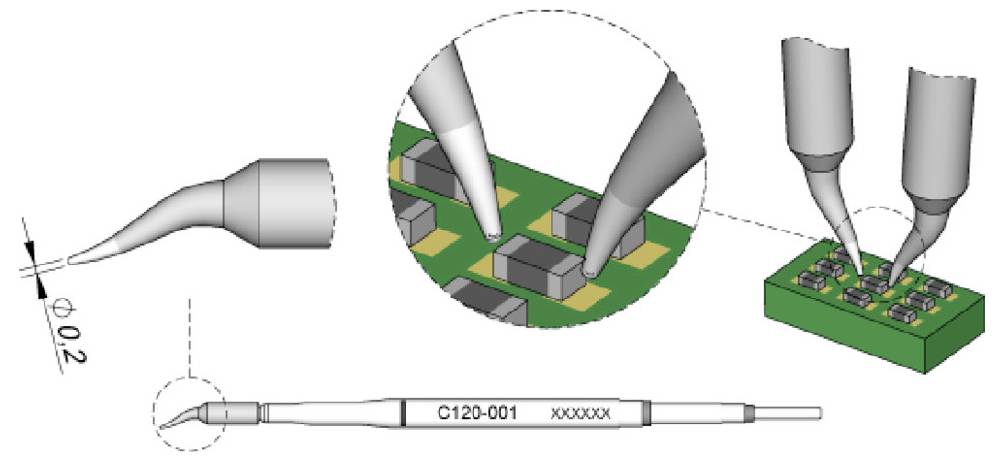

Diagram of a dispenser applying tiny adhesive dots to electronic circuit boards, with a close-up showing nozzle placement and a tool labeled 'C120-001'.

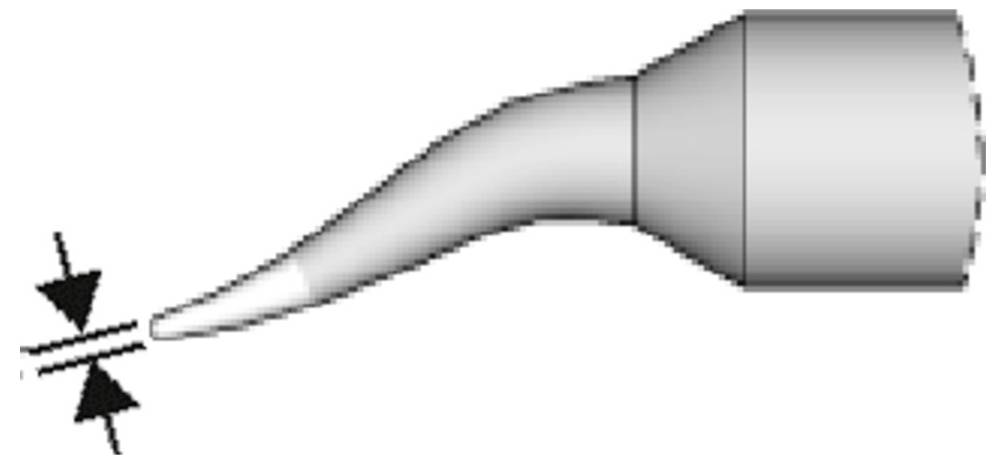

Needle tip pressing between two arrows, indicating the point of a syringe or fine nozzle insertion.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Design: Diagonal, right-hand
Type/dimensions C120007/3.5 mm

Tip shape: Blade shaped

Product type: Desoldering tip

Compatible with: JBC

Type: C120007

Tip size: 3.5 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3780303 JBC Tools C120007 Desoldering tip Blade shaped Tip size 3.5 mm Content 1 pc(s)

Description

Desoldering tips from the C120 series for the JBC micro-desoldering tweezers PA120. The C120 range of desoldering tips are designed for soldering and desoldering chip components or Dual-in-line components to reduce machining time. With micro desoldering tweezers, the tips can be aligned and used according to the user's requirements.
Features: C120 series of soldering tips are suitable for the JBC PA120 micro desoldering tweezers - excellent galvanizing, good thermal performance - very long durability with lead-free alloys - soldering tips are supplied individually. Selection criteria: Type/dimensions: C120007/3.5 mm Design: Diagonal, right . Technical data: Weight: 10 g Product number: JBC-C120007 Shop number: 802630 EAN: 8427327253087

This text is machine translated.
