JBC Tools C250403 Soldering tip Round, bent Tip length 9.5 mm Content 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications

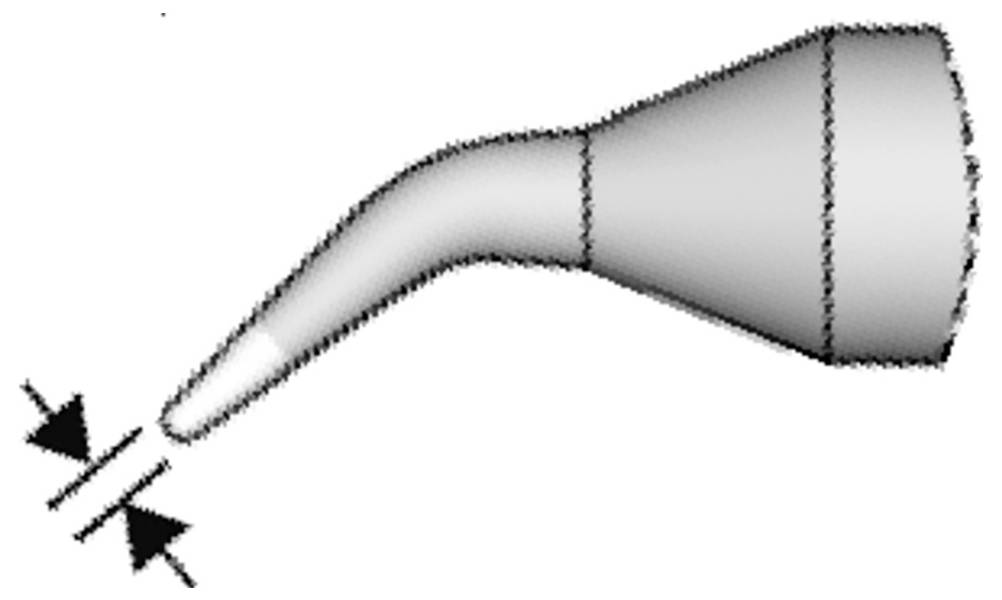

- Type/Dimension C250403/Ø 1.0 mm
- Shape: Bent
- Tip shape
Round, bent
- Product type
Soldering tip
- Compatible with
JBC
- Type
C250403
- Tip length
9.5 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3780338 JBC Tools C250403 Soldering tip Round, bent Tip length 9.5 mm Content 1 pc(s)
Description

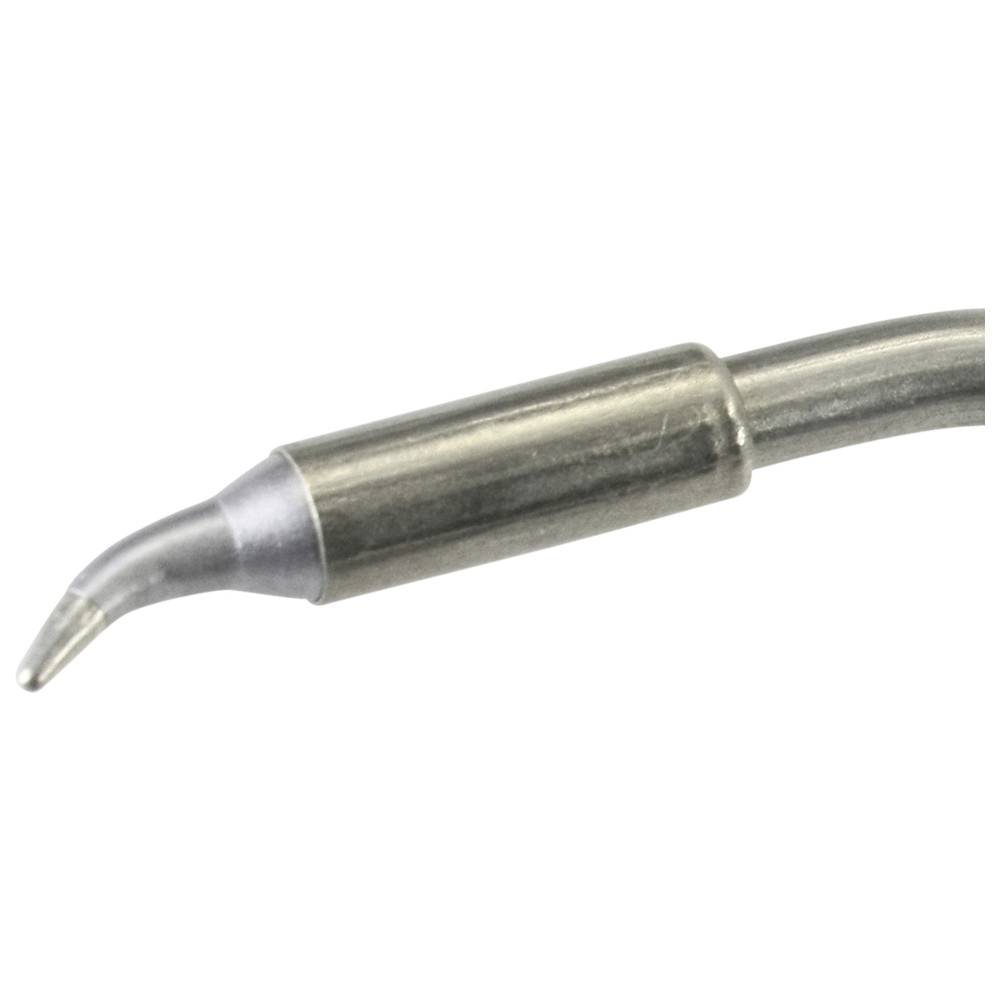

Soldering tip for the JBC handpiece AL250, with automatic tin supply. The C250 series solder tips have been specially developed for use with the JBC soldering iron with automatic soldering wire feeder. The tips can be aligned with an anti-rotation screw.
Features: Excellent galvanization, good thermal performance - very long shelf life with lead-free alloys. Selection criteria: Type/dimensions: C250403/Ø 1.0 mm Shape: Curved . Technical data: Weight: 2 g Product number: JBC-C250403 Shop number: 802940 EAN: 8427327255180
This text is machine translated.
Features: Excellent galvanization, good thermal performance - very long shelf life with lead-free alloys. Selection criteria: Type/dimensions: C250403/Ø 1.0 mm Shape: Curved . Technical data: Weight: 2 g Product number: JBC-C250403 Shop number: 802940 EAN: 8427327255180
