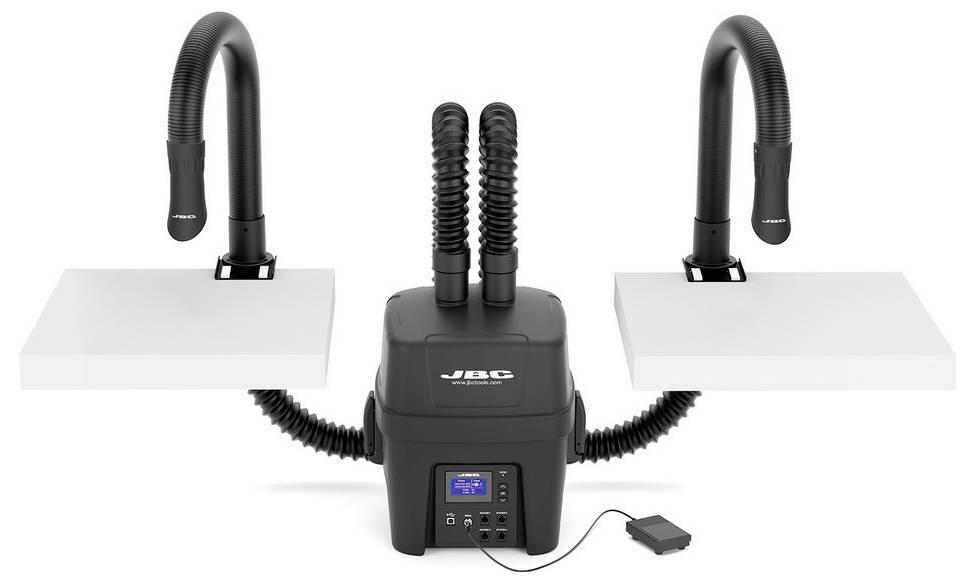

JBC Tools FAE1-2K2D Solder fume extraction kit
EAN:
Part number:
Item no:
Technical specifications
- Design: KIT2 for two workstations
- Output: 110 W
- Dimensions L x W x H 340 x 380 x 475 mm
- Hose-Ø 50 mm
- Flow rate: 230 m³/h.
- Hose length 1.5 m
- Volume 55 dB
- Product type
Solder fume extraction kit
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3780754 JBC Tools FAE1-2K2D Solder fume extraction kit
Description
Features: Automatic activation when removing the tool - HEPA H13 + carbon filter for high filter efficiency - flexible installation thanks to the supplied hose and arm- energy-efficient and low maintenance - ESD-safe and silent. Delivery: 2 x FAE1 Fume Extractor with FAE1100 for two workstations 2 x FAE1100 Filter 2 x FAE072 Flexible Arm with clamp Ø 50 mm 2 x FAE010 Flexible Hose Ø 50 mm 1 piece P405 Pedal 1 piece User manual. Selection criteria: Execution: KIT2 for two workplaces . Technical data: Power: 110 W Dimensions L x B x H: 340 x 380 x 475 mm Flow rate: 230 m³/h Hose-Ø: 50 mm Hose length: 1.5 m Volume: 55 dB Weight: 16.91 kg Item number: JBC-FAE1-2K2D Shop-Number: 815372 EAN: 8427327693593
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2 x FAE1 Fume Extractor with FAE1100 for two workstations
- 2 pieces FAE1100 filter
- 2 pcs. FAE072 Flexible arm with clamp Ø 50 mm
- 2 pieces FAE010 Flexible hose Ø 50 mm
- 1 piece P405 pedal
- 1 pieces operating manual
