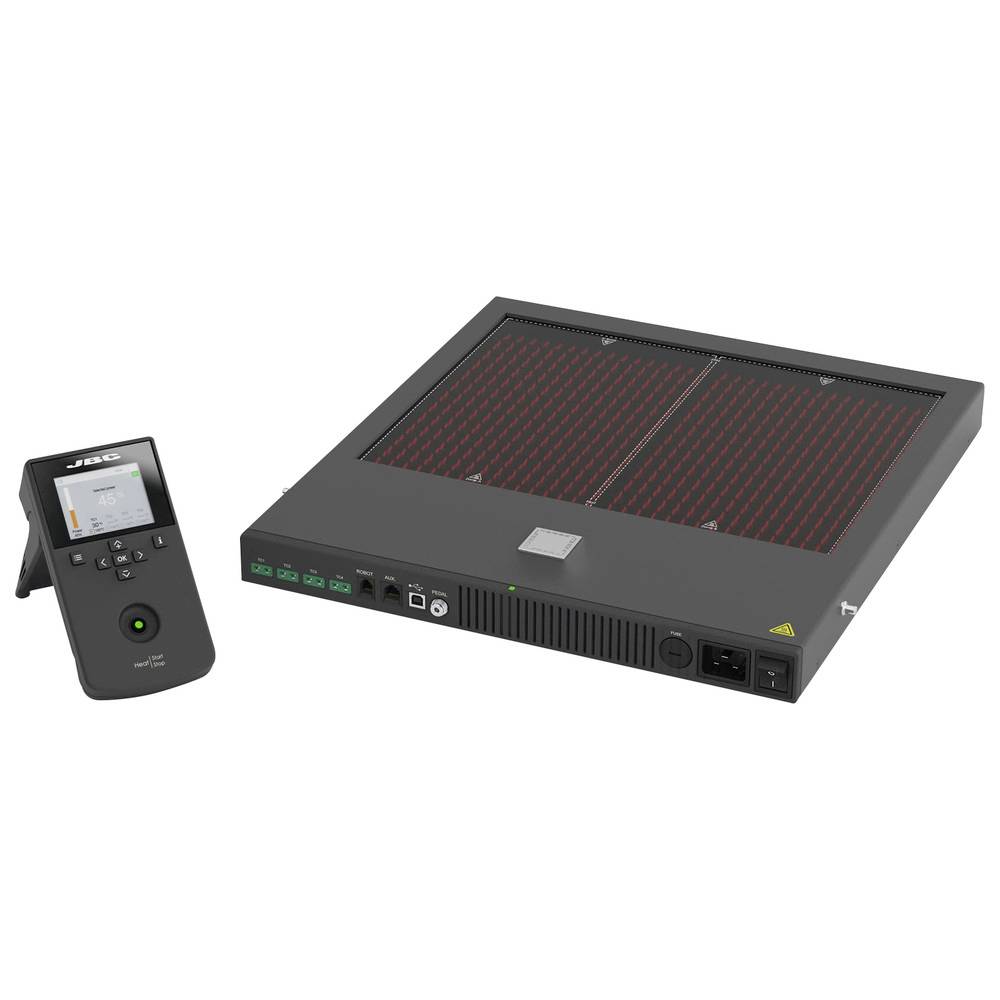

JBC Tools PHBE-2B Infrared pre-heating plate

The PHBE has three working modes: The power mode enables working with a fixed power level with the possibility of using protective thermocouples. Temperature mode keeps the PCB at a selected temperature using the control thermocouple and optional protective thermocouples. The profile mode allows control of the heating rate of the PBCA by using control and protective thermocouples without exceeding the recommended limits in each application. The device has three recommended predefined profiles: - For 1.6 mm printed circuit board with 2 layers - For 1.6 mm circuit board with 4-6 layers - For 2.2 mm PCBs with 6 or more layers In addition, it has 22 adjustable profiles. Up to four thermocouples can be connected, which enable the operator to work in one of the three working modes. It has two independent work areas, which define a heating surface of 180 x 277 or 360 x 277 mm (7.1 x 10.9 or 14.2 x 10.9 in) and works with convection technology With the software JBCSuite the pre-heating plate can be synchronized with other JBC hot-air, soldering and suction systems, so that they work together and help you optimize your rework process.
Features: Highly efficient IR radiant heat - even heat distribution - complete solution for large circuit boards - two separate heating zones - easy to clean glass areas - up to 20 multi-stage profiles can be programmed - temperature or power-controlled operation is possible - Robot can be controlled via RS-232. Delivery includes: 1 pieces pre-heating plate PHBE 1 pieces Programming console PH 1 pieces LAN cable RJ45 1 pieces Thermocouple PH218 1 pieces Power plug 1 pieces Kapton Band 1 pieces Operating instructions Technical data: Power: 1,800 W Temperature range: 50-250 °C Dimensions L x W x H: 426 x 444 x 41 mm Heating area L x W: 180 or 360 x 277 mm (2 zones) Weight: 6.9 kg Product number: JBC-PHBE-2B Shop number: 811708 EAN: 8427327605633
