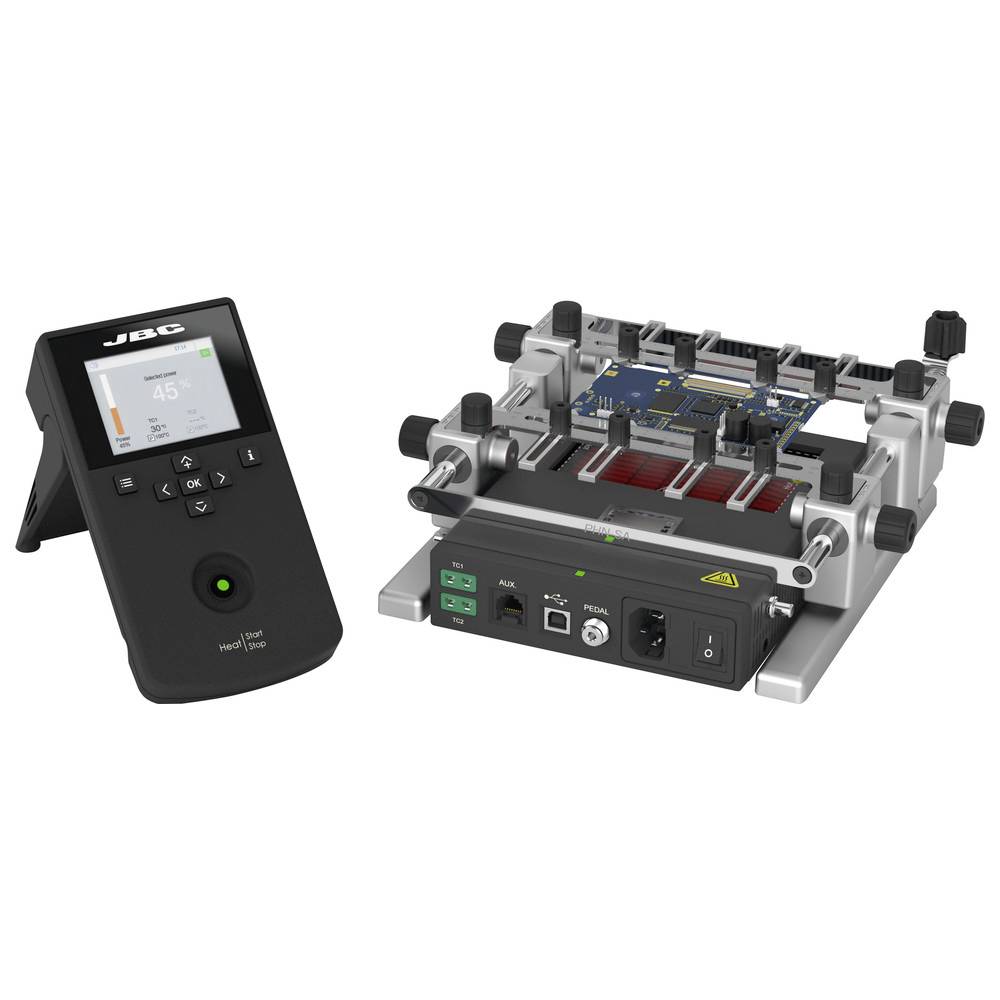

JBC Tools PHNE-2KA Infrared pre-heating plate
EAN:
Part number:
Item no:
Technical specifications
- Output: 300 W
- Temperature range -50-250°C.
- Dimensions L x W x H 179 x 165 x 42 mm
- Heating area L x W 108 x 70 mm
- Product type
Infrared pre-heating plate
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3780488 JBC Tools PHNE-2KA Infrared pre-heating plate
Description
The PHNE is the ideal solution for rework on small PCBAs, such as smartphones. It has a heating surface of 108 x 70 mm and two connections for thermo elements. Precise reliability in temperature accuracy ensures that no components are damaged when controlling the PCBAs. The pre-heating plate can be operated easily and comfortably via the intuitive menu navigation.
Features: Highly efficient IR radiant heat - uniform heat distribution - complete solution for small circuit boards - easy to clean glass surface - up to 22 multi-stage profiles programmable - temperature or power-controlled operation possible. Delivery includes: 1 pieces pre-heating plate PHNE 1 pieces programming console PH 1 pieces PCB holder PHNS 1 pieces connecting cable RJ45 1 pieces Kapton tape 1 pieces thermo element PH218 1 pieces power plug 1 pieces operating instructions. Technical data: Power: 300 W Temperature range: 50-250 °C Dimensions L x W x H: 179 x 165 x 42 mm Heating area L x W: 108 x 70 mm Weight: 4.2 kg Product number: JBC-PHNE-2KA Shop number: 808761 EAN: 8427327537941
This text is machine translated.
Features: Highly efficient IR radiant heat - uniform heat distribution - complete solution for small circuit boards - easy to clean glass surface - up to 22 multi-stage profiles programmable - temperature or power-controlled operation possible. Delivery includes: 1 pieces pre-heating plate PHNE 1 pieces programming console PH 1 pieces PCB holder PHNS 1 pieces connecting cable RJ45 1 pieces Kapton tape 1 pieces thermo element PH218 1 pieces power plug 1 pieces operating instructions. Technical data: Power: 300 W Temperature range: 50-250 °C Dimensions L x W x H: 179 x 165 x 42 mm Heating area L x W: 108 x 70 mm Weight: 4.2 kg Product number: JBC-PHNE-2KA Shop number: 808761 EAN: 8427327537941
This text is machine translated.
Scope of delivery
- 1 piece pre-heating plate PHNE
- 1 Piece Programming Console PH
- 1 piece PCB holder PHNS
- 1 pieces connection cable RJ45
- 1 piece Kapton tape
- 1-piece thermocouple PH218
- 1 mains plugs
- 1 pieces operating manual
