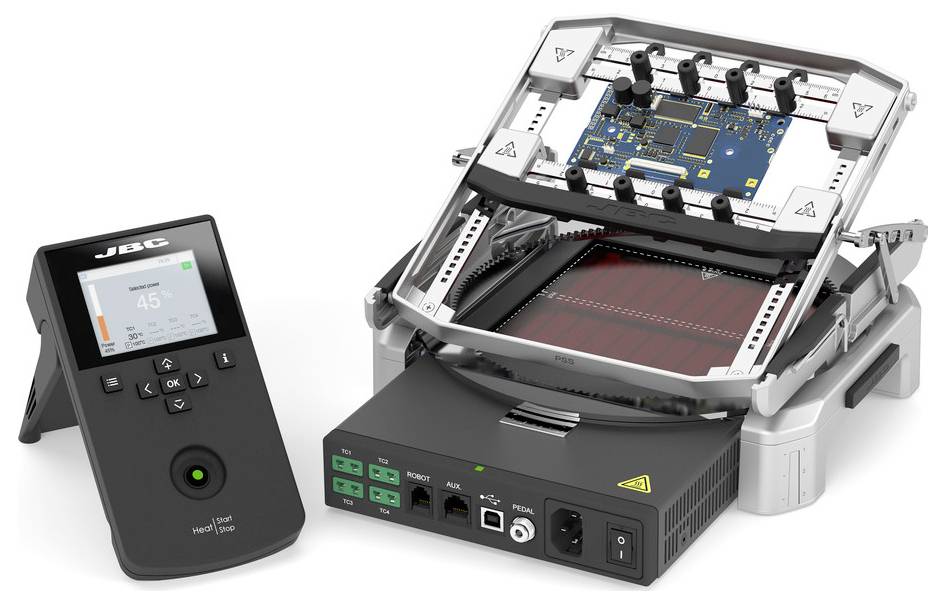

JBC Tools PHSM-2KA Infrared pre-heating plate

This combination of under-heating and multi-axis PCB support is a solution for the post-processing of small and medium-sized PCBAs. Features: Highly efficient IR radiant heat - uniform heat distribution - uniform heating and avoidance of temperature shocks - enables fast, simple and precise PCB change - in each position perfect for repetitive soldering work-two separate heating zones - easy to clean glass area up to 22 multi-step profiles - sold control panel can be synchronized with other JBC hot air soldering stations and soldering stations as well as suction systems Delivery includes: 1 pieces pre-heating plate PHSE 1 pieces multiaxial mounting and soldering frame PSS 1 pieces thermocouple type K PH218 1 pieces Kapton tape PH217 1 pieces operating instructions Technical data: Power: 800 W Temperature range: 50-250 °C Dimensions L x W x H: 288 x 195 x 42 mm Heating area L x W: 65 x 135 or 130 x 135 mm (2 zones) Weight: 7.21 kg Product number: JBC-PHSM-2KA Shop number: 814012 EAN: 8427327670679

This text is machine translated.
