JBC Tools SF-210VB Solder wire feeder system 1 pc(s)

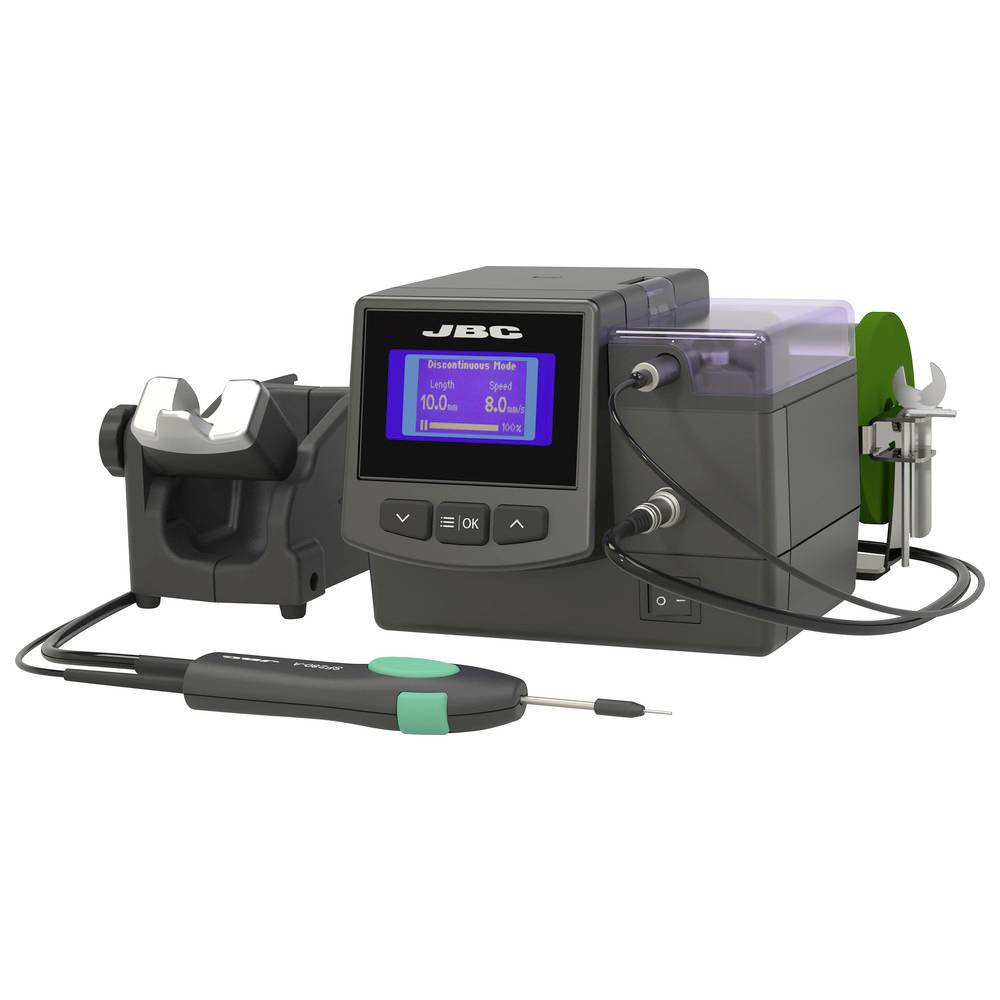

With the SF-210VB soldering wire feed system, the solder can be transported automatically from any position to the solder joint. The length and speed of the feed can be selected. There are three working modes to choose from: Continuous operation, step-by-step operation or individually configured mode. In each program, three stages with different wire lengths and feed speeds can also be defined. A total of up to 35 programs can be stored. The solder wire feeder has a small blade that perforations the solder wire to the core. This ensures a better flow and extraction; this avoids soldering and fluxing agent splashes during the soldering process. The ergonomic handle SF280-A can be operated with wire diameters from 0.8 to 1.5 mm. An additional soldering station is required.
Features: Selection option for soldering wire quantity and speed (mm/sec)- Selection option for the work cycle (continuous operation, stepwise or program)- up to 35 programs programmable- Solder wire is perforated during feed, as a result of which the wire flows better- Solder and flux splashes are avoided during the soldering process - ergonomic tool. Delivery includes: 1 pieces control unit SF 1 pieces feed handle SF280 1 pieces guide set for wire-Ø 1.0 mm 1 pieces coil stands 1 pieces wrench 1 pieces Allen keys 1.5 mm 1 pieces Allen keys 2.5 mm 1 piece mains plug 1 pieces operating instructions. Technical data: Output: 30 W Dimensions L x B x H: 150 x 120 x 115 mm Channels: 1 Feed speed: Max. 120 mm/s Wire-Ø: 0.8-1.5 mm Capacity: Up to 1 kg Potential compensating bushing: Yes USB interface: Yes Weight: 0 g Article number: JBC-SF-210VB Shop number: 803724 EAN: 8427327472600
