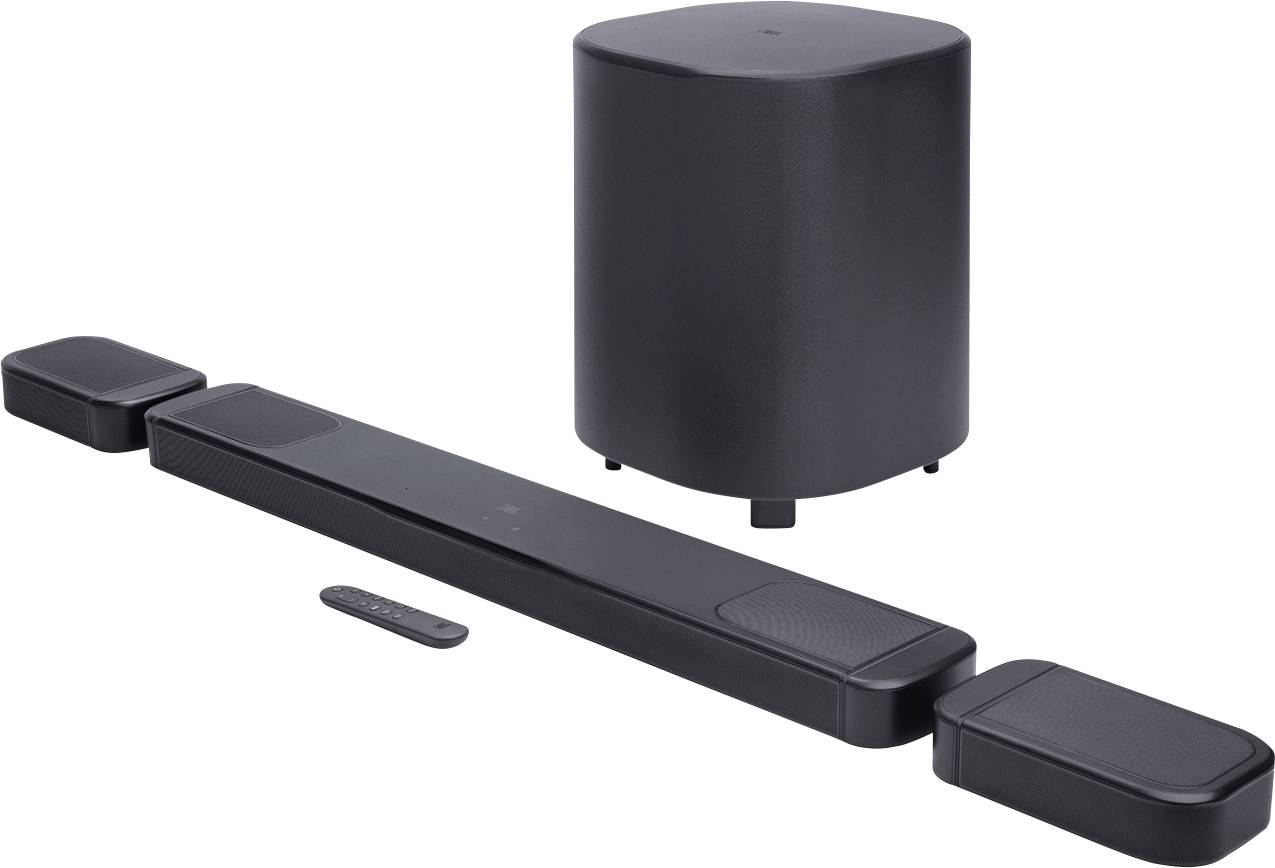

JBL Bar 1000 MK2 Soundbar Black Bluetooth, incl. cordless subwoofer, Wall brackets, Wi-Fi
EAN:
Part number:
Item no:
Datasheet (PDF)

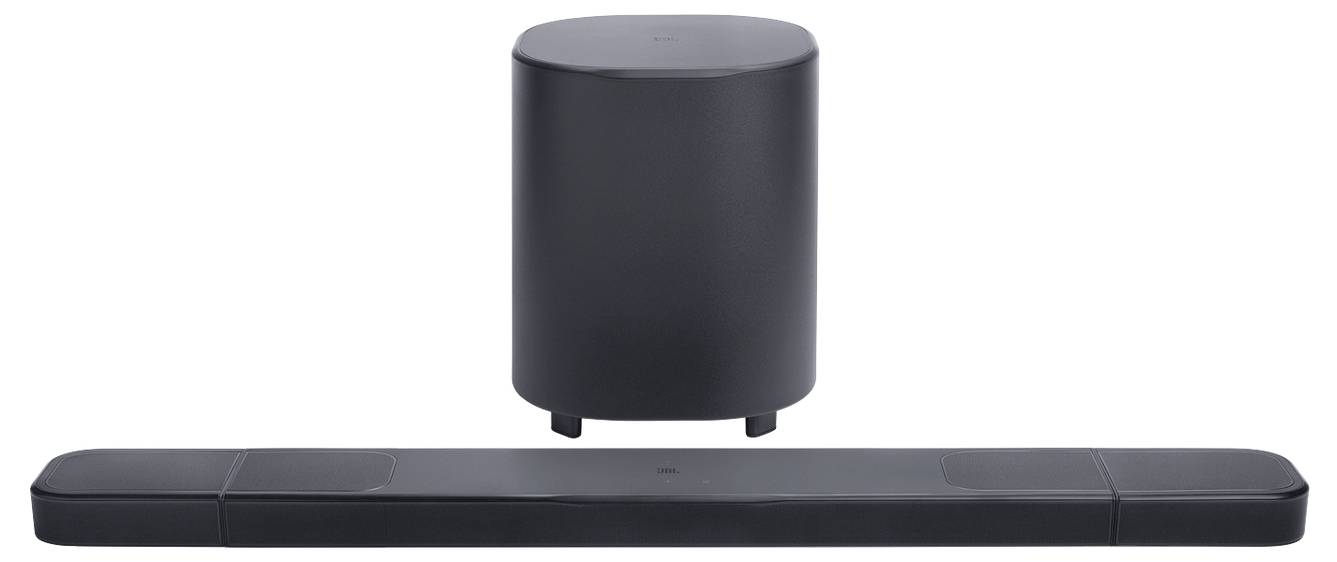

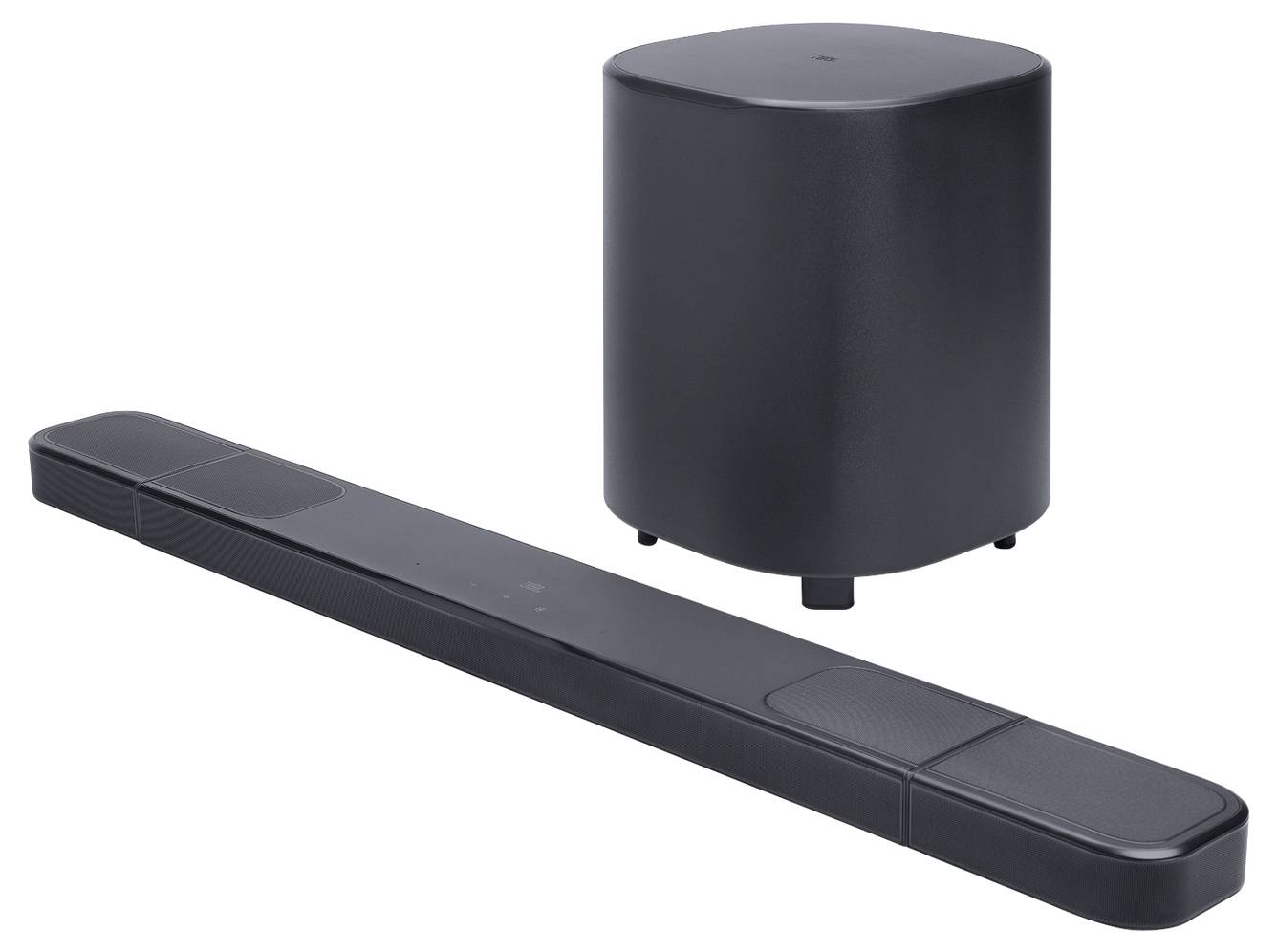

JBL Bar 1000 MK2 Soundbar
Highlights & Details
- Real Panorama Surround sound with removable wireless speakers
- Maximum output power of 960 W and a wireless 10-inch subwoofer
- True Dolby Atmos® and DTS:X.
Technical specifications
- Power supply 100–240 V AC, ~ 50/60 Hz
- WLAN IEEE 802.11 a/b/g/n/ac/ax (2.4 GHz/5 GHz)
- Bluetooth version: V5.3
- Frequency response 33 Hz – 20 kHz (-6 dB)
- Bluetooth profile: A2DP v1.3, AVRCP v1.5
- Bluetooth < 15 dBm (EIRP)
- Bluetooth transmission frequency range 2400 MHz–2483.5 MHz
- Power consumption in networked stand-by: < 2.0 W
- Operating temperature 0 °C - 45 °C.
- 3.635 V/6,600 mAh lithium ion rechargeable battery
- 2.4 GHz WLAN frequency range 2.412–2.472 MHz (2.4 GHz ISM band, USA 11 channels, Europe and other 13 channels )
- 2.4 GHz Wi-Fi speed < 20 dBm (EIRP)
- 5 GHz WLAN frequency range: 5.15–5.35 GHz, 5.470–5.725 GHz, 5.725–5.825 GHz
- 5 GHz Wi-Fi power 5.15–5.25 GHz < 23 dBm, 5.25–5.35 GHz and 5.47–5.725 GHz < 20 dBm, 5.725–5.825 GHz < 14 dBm (EIRP)
- USB connection (type A)
- Sound system 7.1.4-channel
- Output power of the sound bar (max. @THD 1 %): 500 W
- Output power of the subwoofer (max. @THD 1 %): 300 W
- Soundbar speaker driver: 6 x (44 x 80 mm) racetrack driver, 2 x 1 inch (25 mm) tweeter, 2 x 2.75 inch (70 mm) full range driver facing upwards
- Subwoofer speaker driver 10 " (260 mm)
- Subwoofer weight: 9.1 kg
- Supported file formats: Mp3
- MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate 16–48 kHz
- MP3 bit rate 80–320 kpbs
- 2.4 GHz wireless transmission frequency range 2,406–2,474 MHz
- Note: Volume 5.6–5.64 GHz will be disabled for shipping to Australia/New Zealand.
- HDMI HDCP version 2.3
- HDR pass-through HDR10+, Dolby Vision
- Surround speaker output power (max @THD 1 %): 2 x 80 W.
- Surround speaker driver: 2 x (44 x 90 mm) racetrack driver, 2 x 2.75 inch (70 mm) full range driver up radiating full range driver
- Removable surround speakers: Up to 10 hours playback time (may vary depending on content type and volume)
- Soundbar dimensions (W x H x D): 854 x 52 x 128 mm
- Dimensions of the detachable surround loudspeaker (each) (W x H x D) 189 x 52 x 128 mm
- Subwoofer dimensions (H x W x D) 325 x 400 x 325 mm
- Weight of removable surround speakers (each): 0.9 kg
- Wireless 2.4 GHz transmission power < 10 dBm (EIRP)
- Factory colour
Black
- Depth
128 mm
- Height
52 mm
- Width
1203 mm

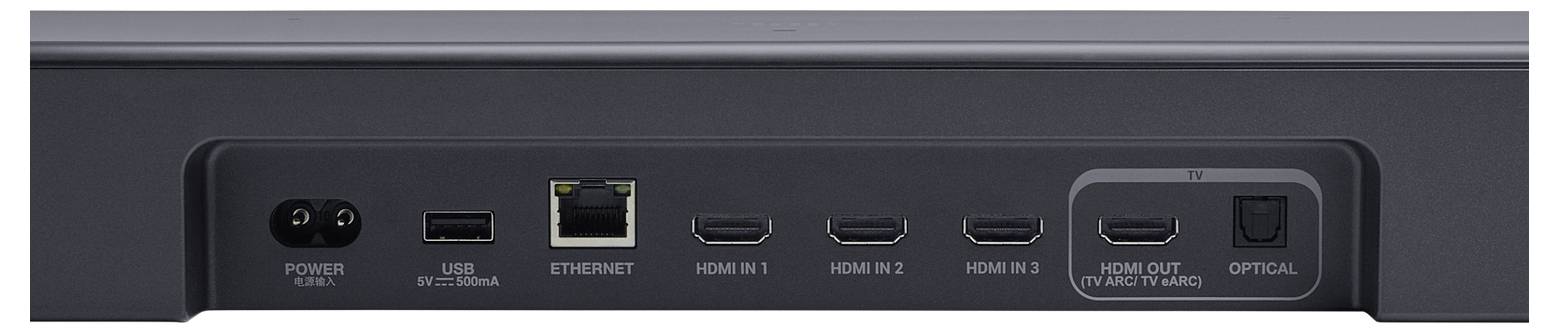

- No. of HDMI inputs
3 x
- No. of HDMI ouptuts
1 x
- Max. audio capacity
960 W
- Interfaces (input)
HDMI® input
Bluetooth
Digital audio (optical)
Wi-Fi
- Interfaces (output)
HDMI® output
- Soundbar features
Bluetooth
incl. cordless subwoofer
Wall brackets
Wi-Fi
- Wireless charging
No
- Frequency range
33 Hz -20 kHz
- Weight
5.5 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3531274 JBL Bar 1000 MK2 Soundbar Black Bluetooth, incl. cordless subwoofer, Wall brackets, Wi-Fi
User & Safety Instructions
User & Safety Instructions 3531274 JBL Bar 1000 MK2 Soundbar Black Bluetooth, incl. cordless subwoofer, Wall brackets, Wi-Fi
Description
Experience real surround sound in seconds
Realistic room sound that fills your floor-to-ceiling space with true elevation effects from Dolby Atmos® and DTS:X can be set up in just a few seconds. Simply remove the removable wireless speakers from both ends of the JBL BAR 1000MK2 Sound BAR and distribute them around your seat. That is all.
As you immerse yourself in the action, you enjoy the deep, powerful bass of the 10-inch subwoofer, while MultiBeam™ 3.0 provides a wide sound stage like in the cinema. If you have to leave the room while your favorite podcast or streaming playlist is running on the TV, simply take one of the wireless speakers with you to miss anything.
JBL can do this because our speakers are popular and proven in cinemas, sound studios and concert halls. And this impressive sound runs smoothly on TV-sets of all brands. Experience unlimited cinema sound in your living room.

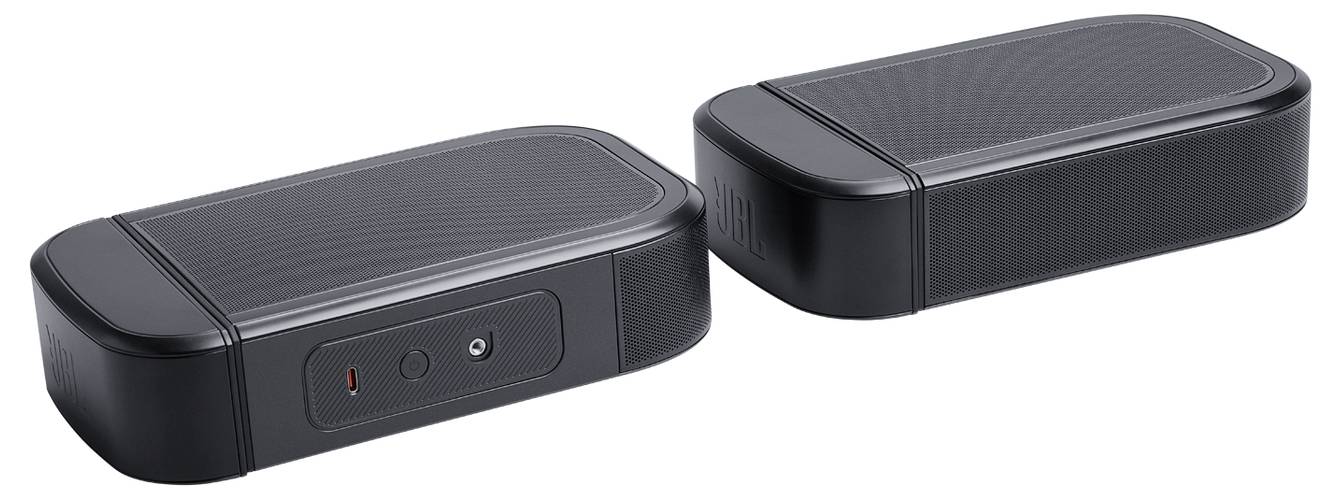

Real Panorama Surround sound with removable wireless speakers

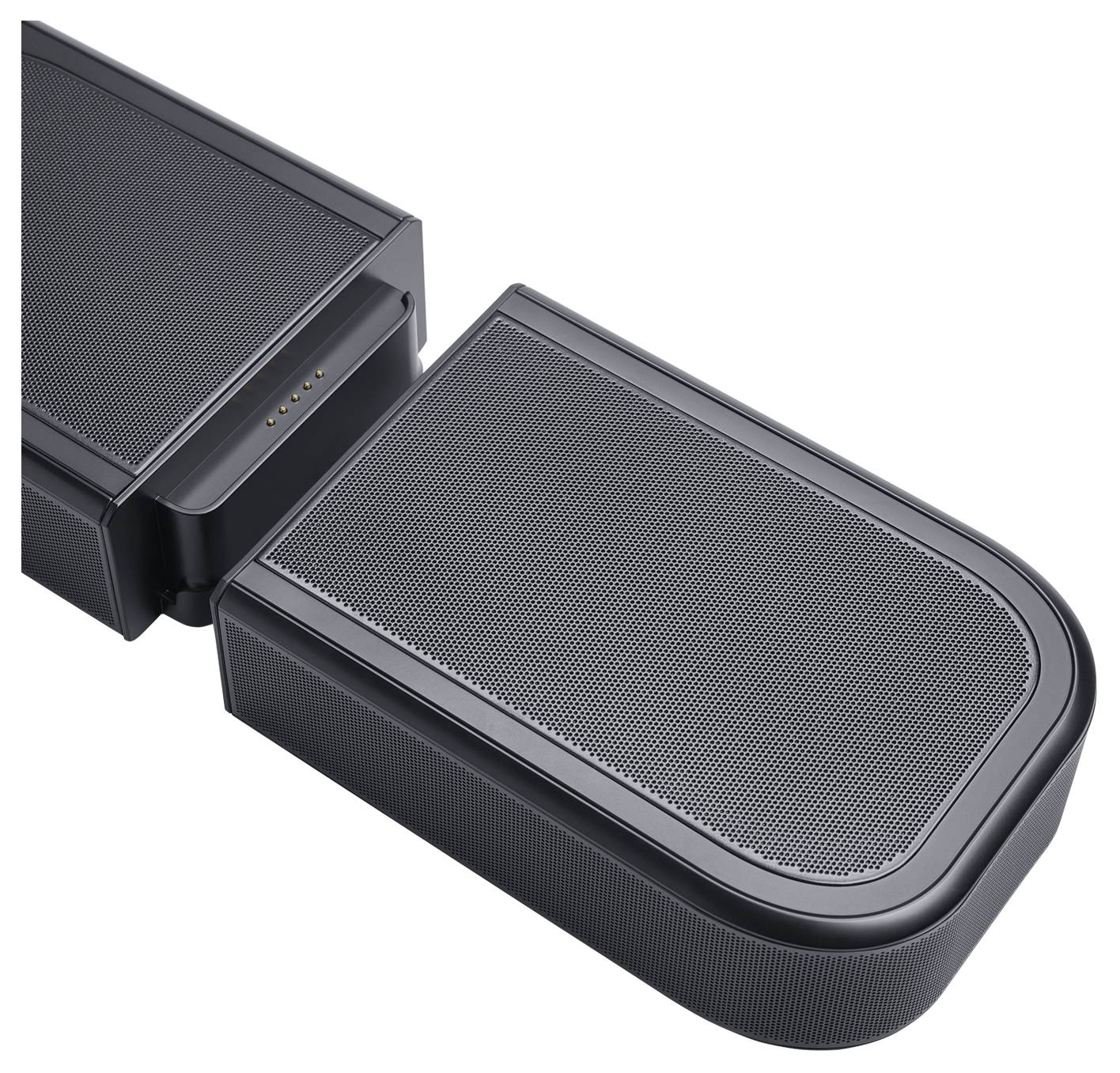

Bring your 3D surround sound experience to the next level with vivid, stunning highs. Four top-firing speakers in the soundbar and the wireless rear speakers deliver true Dolby Atmos® sound. No additional cables. No power connection. Simply remove the detachable surround speaker from the sound bar - that's all you need with one hand - and place it behind your seat and the sound bar turns into a true surround sound system. It's so simple. Whether you have a series marathon or a film evening in front of you – thanks to the long running time of the rechargeable speaker batteries you can rely on hours of immersive surround sound like in the cinema. After the film evening, you can simply put it back on the soundbar so that it is charged overnight.
Maximum output power of 960 W and a wireless 10-inch subwoofer
Change the possibilities as you see, hear and play. Immerse yourself in new dimensions of cinema sound. 960 watts maximum power for a yet more powerful surround sound experience. Action movies become even more exciting with the powerful, booming bass of the wireless 10-inch subwoofer.
True Dolby Atmos® and DTS:X.
Immerse yourself in cinema-quality 3D spatial sound with Dolby Atmos® and DTS:X and experience the air of the spaceships hovering over your head. Feel how explosions capture your whole body. Enjoy music just like in the recording studio.
This text is machine translated.
Realistic room sound that fills your floor-to-ceiling space with true elevation effects from Dolby Atmos® and DTS:X can be set up in just a few seconds. Simply remove the removable wireless speakers from both ends of the JBL BAR 1000MK2 Sound BAR and distribute them around your seat. That is all.
As you immerse yourself in the action, you enjoy the deep, powerful bass of the 10-inch subwoofer, while MultiBeam™ 3.0 provides a wide sound stage like in the cinema. If you have to leave the room while your favorite podcast or streaming playlist is running on the TV, simply take one of the wireless speakers with you to miss anything.
JBL can do this because our speakers are popular and proven in cinemas, sound studios and concert halls. And this impressive sound runs smoothly on TV-sets of all brands. Experience unlimited cinema sound in your living room.
Real Panorama Surround sound with removable wireless speakers
Bring your 3D surround sound experience to the next level with vivid, stunning highs. Four top-firing speakers in the soundbar and the wireless rear speakers deliver true Dolby Atmos® sound. No additional cables. No power connection. Simply remove the detachable surround speaker from the sound bar - that's all you need with one hand - and place it behind your seat and the sound bar turns into a true surround sound system. It's so simple. Whether you have a series marathon or a film evening in front of you – thanks to the long running time of the rechargeable speaker batteries you can rely on hours of immersive surround sound like in the cinema. After the film evening, you can simply put it back on the soundbar so that it is charged overnight.
Maximum output power of 960 W and a wireless 10-inch subwoofer
Change the possibilities as you see, hear and play. Immerse yourself in new dimensions of cinema sound. 960 watts maximum power for a yet more powerful surround sound experience. Action movies become even more exciting with the powerful, booming bass of the wireless 10-inch subwoofer.
True Dolby Atmos® and DTS:X.
Immerse yourself in cinema-quality 3D spatial sound with Dolby Atmos® and DTS:X and experience the air of the spaceships hovering over your head. Feel how explosions capture your whole body. Enjoy music just like in the recording studio.
This text is machine translated.

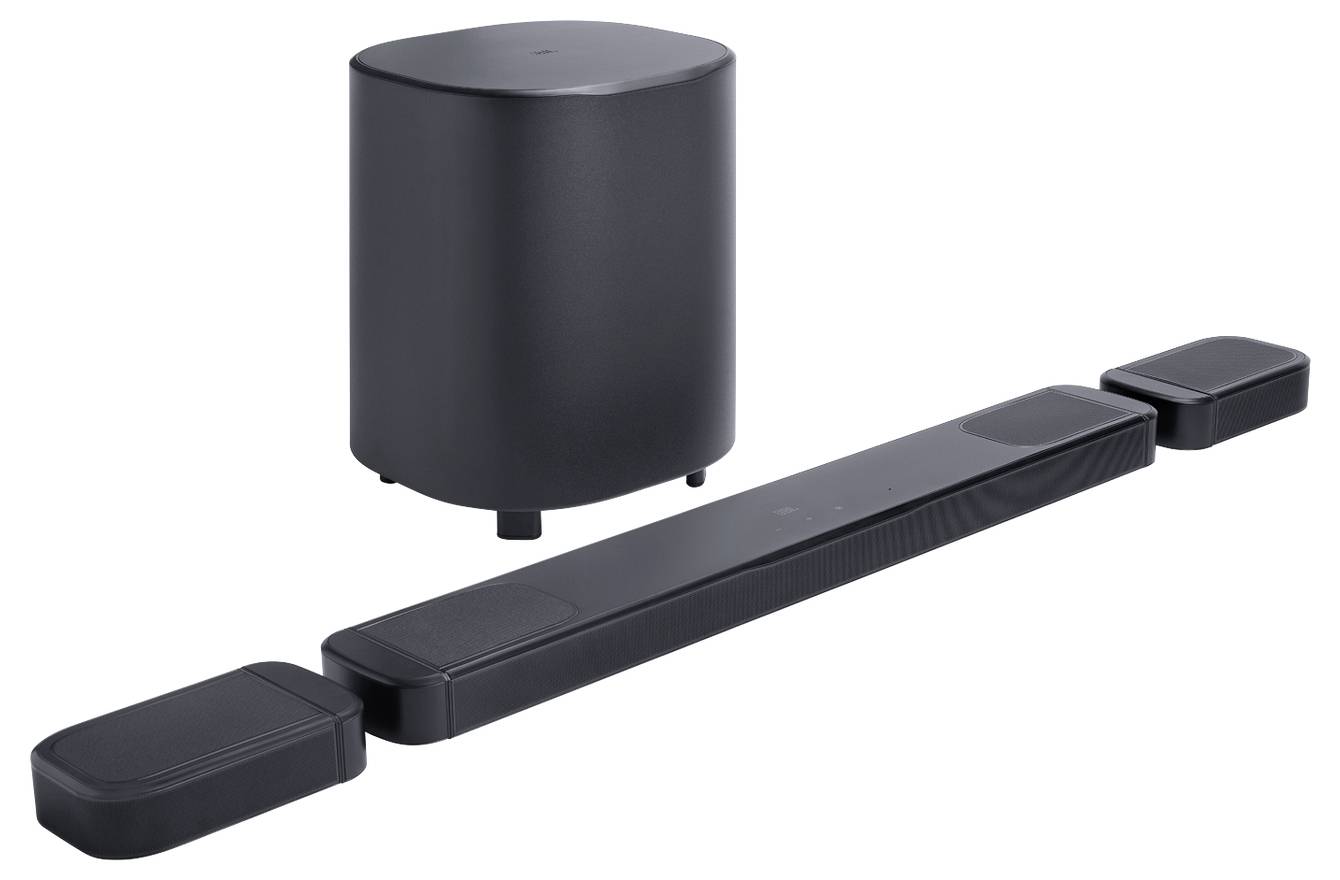

Scope of delivery
- 1 main sound bar
- 2 detachable wireless surround-loudspeakers
- 1 wireless subwoofer
- Remote control with 2 batteries
- Power cord (up to 6, depending on region)
- 1 HDMI-cable
- 2 L-shaped wall brackets (main sound bar) + 2 U-shaped wall brackets (for surround loudspeakers) in a set with screws
- 4 side caps
- Quick guide
- Safety instructions and guarantee card
- Template for wall mounting
