1/7
JBL Cinema SB550 Soundbar Black Bluetooth, USB
EAN:
Part number:
Item no:

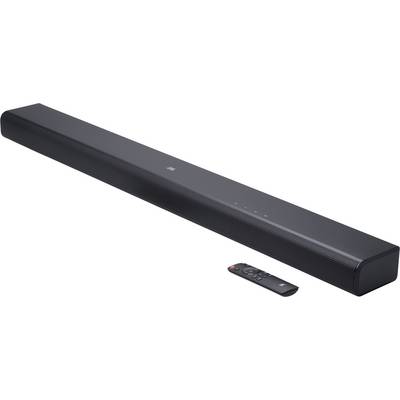

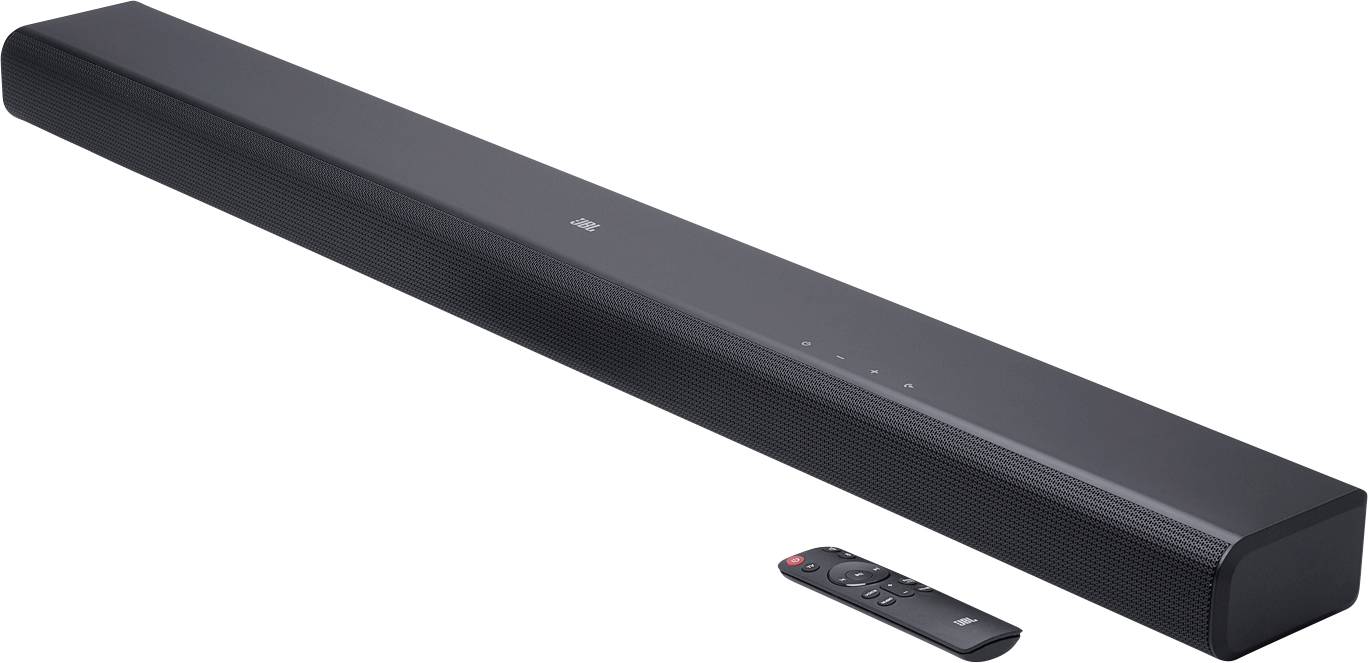

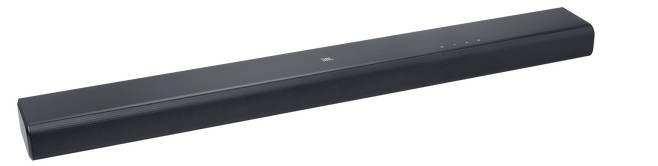

JBL Cinema SB550 Soundbar
Highlights & Details
- Its own center channel driver ensures superior voice clarity
- Built-in subwoofer
- One-cable connection with HDMI ARC
Technical specifications
- Product type
Soundbar
- Soundbar features
Bluetooth
USB
- Max. audio capacity
200 W
- Frequency range
55 - 20 000 Hz
- No. of HDMI ouptuts
1 x
- No. of optical inputs
1 x
- No. of USB ports
1 x
- Interfaces (output)
HDMI™
- Interfaces (input)
Digital audio (optical)
Bluetooth
USB
- Factory colour
Black
- Width
950 mm
- Height
67 mm
- Depth
105 mm
- Dim
(W x H x D) 950 x 67 x 105 mm
- Weight
3.5 kg
- Content
1 pc(s)
- Wireless charging
No
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3531265 JBL Cinema SB550 Soundbar Black Bluetooth, USB
Description
The JBL cinema SB510 is a 3.1-channel all-in-one soundbar with built-in subwoofer. It provides 200 watt powerful Dolby audio with deep basses in a practical, compact design that fits perfectly in every room. A separate center channel driver ensures crystal-clear dialog on film and television. Setup is easy via HDMI ARC with a cable or optical connectors. In addition, the convenient Bluetooth connectivity enables wireless music streaming from any device.
This text is machine translated.
This text is machine translated.
Features
- 3.1-channel sound system
- Power supply 100–240 V AC, ~ 50/60 Hz
- Total speaker power (max. 1% at THD): 200 W.
- Soundbar output power (1 % max. at THD): 150 W.
- Subwoofer output power (1 % max. at THD): 50 W
- 3 Racetrack driver (45 x 80 mm)
- Subwoofer loudspeaker driver
- 1 built-in subwoofer (70 x 88 mm)
- StandBy consumption: 0.5 W.
- Operating temperature 0 - 45 °C.
- Frequency response 55 Hz – 20 kHz (-10 dB)
- Audio Inputs: 1 Optical, Bluetooth and USB (USB playback is available in the US version. For other versions, USB is only intended for service.)
- Soundbar dimensions (W x H x D): 950 x 67 x 105 mm
- Soundbar weight: 3.5 kg
- Packaging weight: 5.0 kg
- USB-CONNECTION USB-A.
- USB NOMINAL VALUES 5 V DC, 0.5 A
- Supported file formats: Mp3
- MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate 16–48 kHz
- Bluetooth version: 5.3
- Bluetooth profile A2DP 1.3, AVRCP 1.6
- Frequency range for Bluetooth transmission: 2,400–2,483.5 MHz
- Max. Bluetooth <10 dBm (EIRP)
- Bluetooth transmission modulation: GFSK, π/4 DQPSK, 8PSK
- HDMI ARC (Audio Return Channel) 1
- HDMI HDCP version 1.4

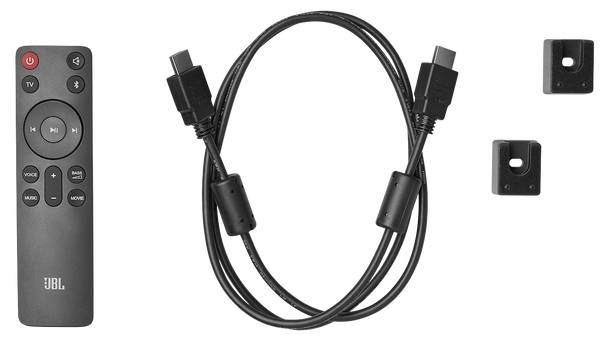

Scope of delivery
- Soundbars
- Remote control with batteries
- Power cord (up to 4, depending on region)
- HDMI Cables
- Holder for wall mounting with screws
- Quick guide
- Safety sheet.
