Buy JBL Club 64 2-way coaxial flush mount speaker kit 180 W Content: 2 pc(s)

'Two round JBL speakers in black, one with a reddish ring around the mid-high driver, show different design features.'

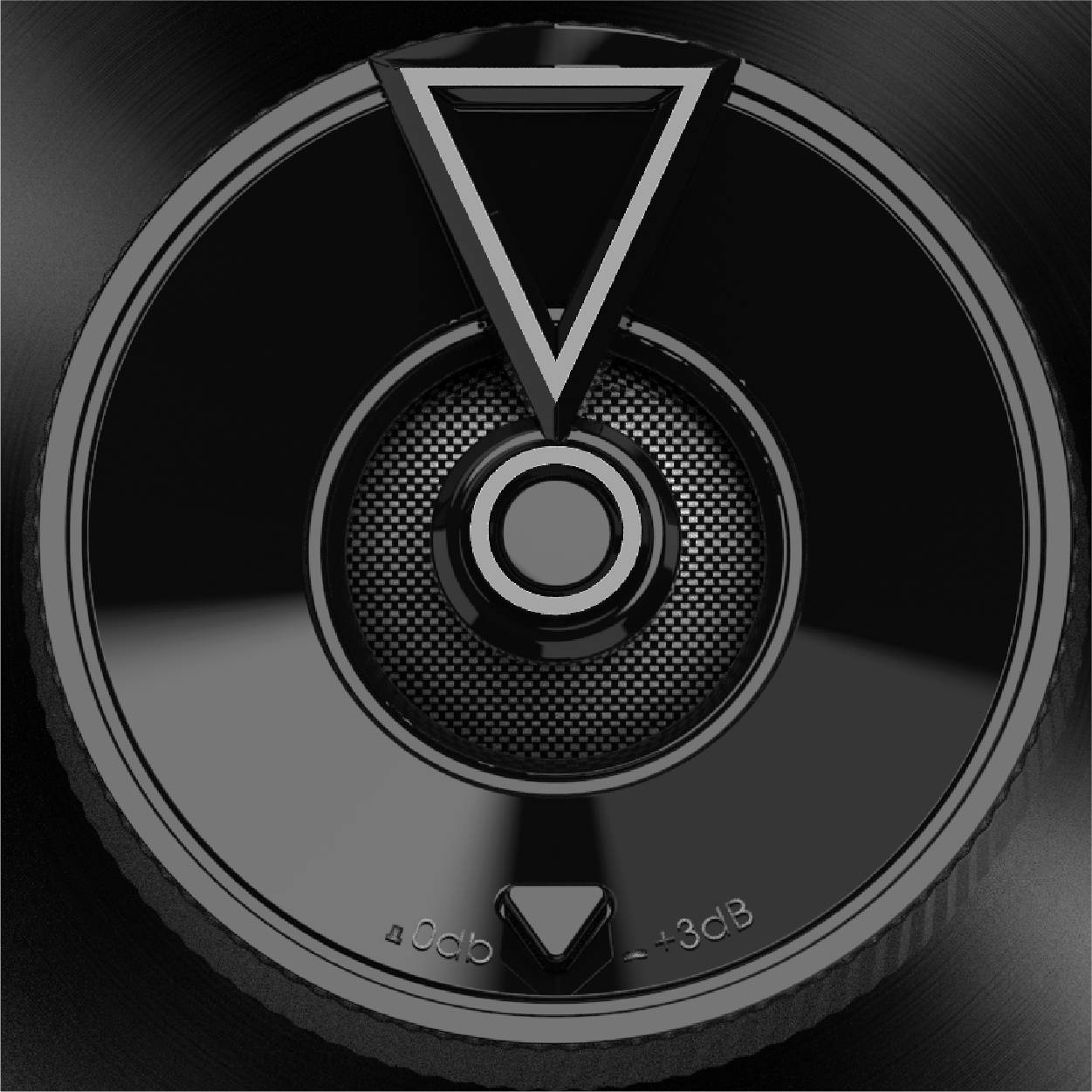

A black volume control with a triangle as a marker, displayed with a scale from -∞ dB to +3 dB.

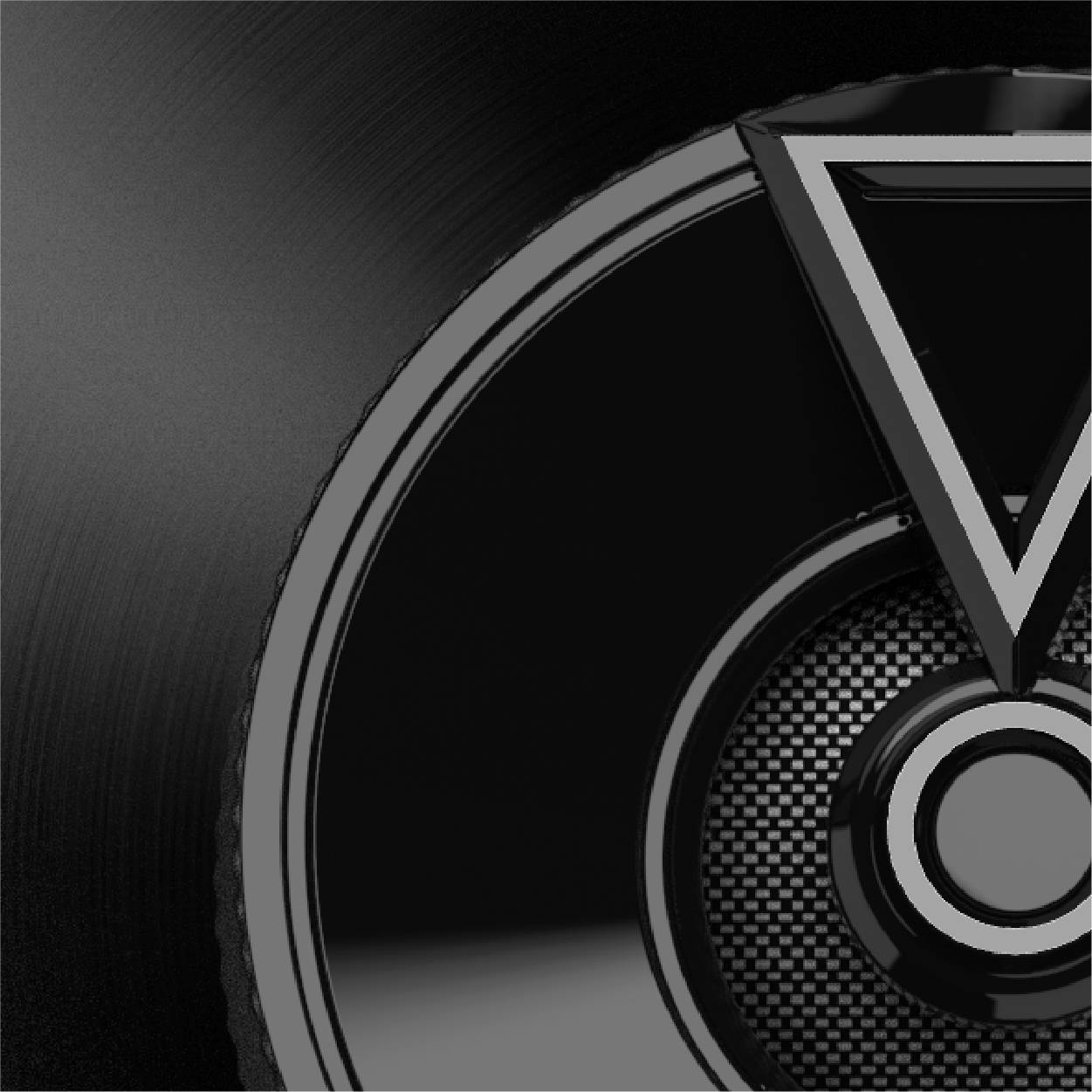

'Surface of a round speaker with a metallic ring and artfully designed patterns inside in black and silver.'

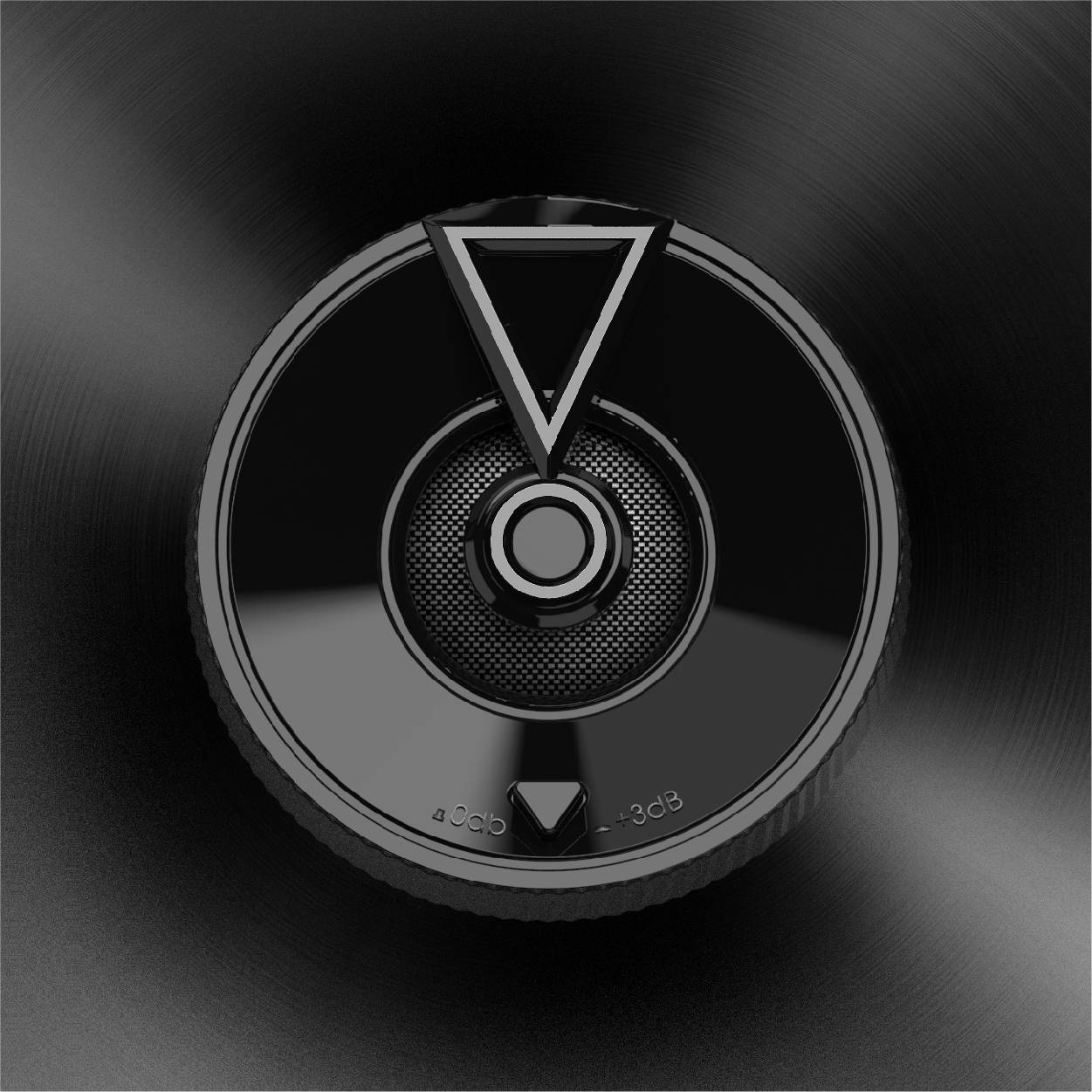

A black volume control with a triangular symbol on top. The knob displays "-3 dB" and "+3 dB" on a glossy surface.

1/6

Fast track dispatch on Fri, 11 Sep

1 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 2 pc(s))

Set(s)

Total (€ 92.43 / piece)

€ 92.43

plus VAT.

Only 1 Set(s) available

Report legal concerns

Technical specifications

Diameter: 160 mm

Max. audio capacity: 180 W

Product type: 2-way coaxial flush mount speaker kit

RMS capacity: 60 W

SPL: 93 dB

Frequency range: 48 - 21,000 Hz

Outside Ø: 160 mm

Impedance: 3 Ω

Content: 2 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3065772 JBL Club 64 2-way coaxial flush mount speaker kit 180 W Content: 2 pc(s)

Description

Plus One™ bass cone architecture
Plus One™ polypropylene cones offer more space in the speaker cone than any other design in this class, increasing sensitivity and enhancing bass and overall audio enjoyment.

Precise silk dome tweeter
The Club 64 has a complete, precise, silk dome tweeter, which supplies a wider and softer treble range in comparison to the usually used W-cones, which never appears hard regardless of the output level.

Adjustable tweeter output level
The Club 64 component system has a control for the tweeter output level of 0 dB or +3 dB for a system linearity based on the installation site.

Acoustically absorbed, UV resistant polypropylene cone
The woofer cone of all club loudspeakers was developed to deliver a clean, resonance-free sound quality and at the same time withstand the stresses of heat and humidity in the vehicle.

Larger magnet, larger capacity
The new Club line is characterized by a larger magnet, which offers a higher load-carrying capacity than competitors at similar prices.

This text is machine translated.

Scope of delivery

2 x speaker
2 x protective grille
1 x Foam sealing
16 x Screws
8 x quick connections
2 x plastic multi-hole adaptor rings
2 x labels with JBL logo
