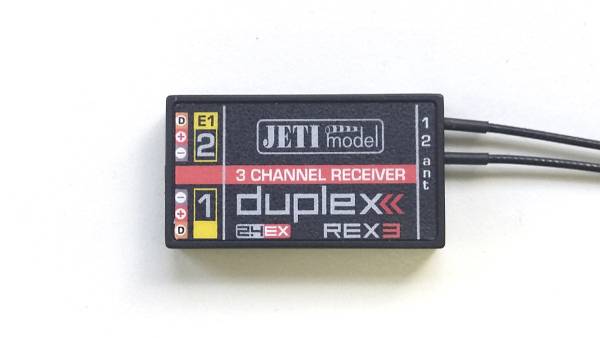

Jeti Rex 3 3-channel receiver
EAN:
Part number:
Item no:
Technical specifications
- Product type
3-channel receiver
- Dim
(L x W x H) 40 x 22 x 7 mm
- Weight
7.1 g
- Operating voltage
3.2 - 8.4 V
- Max. operating voltage
8.4 V
- Min. operating voltage
3.2 V
- Manufacturer part #
80001248
- Width
22 mm
- Height
7 mm
- Length
40 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1546910 Jeti Rex 3 3-channel receiver
Description
Features
- Current consumption: 30 mA.
- The new generation of receiver
- Integrated Expander for multiple sensors
- Supported protocols: PPM, EXBUS, EX, UDI
- Programmable functions of slots
- Support the direct inputs
- Compact dimensions
- 2-bit processor
- Full Range
- The JETIBOX unit can be programd and wirelessly via the Duplex DC/DS transmitter
- Internal memory for the data logging and the control signals (evaluation in preparation)
- Also ideal for use in combination with external "Servo soft" for connection via jeti Ex Bus + additional sensors.
- This text is machine translated.
Scope of delivery
- Receiver
- User manual.
