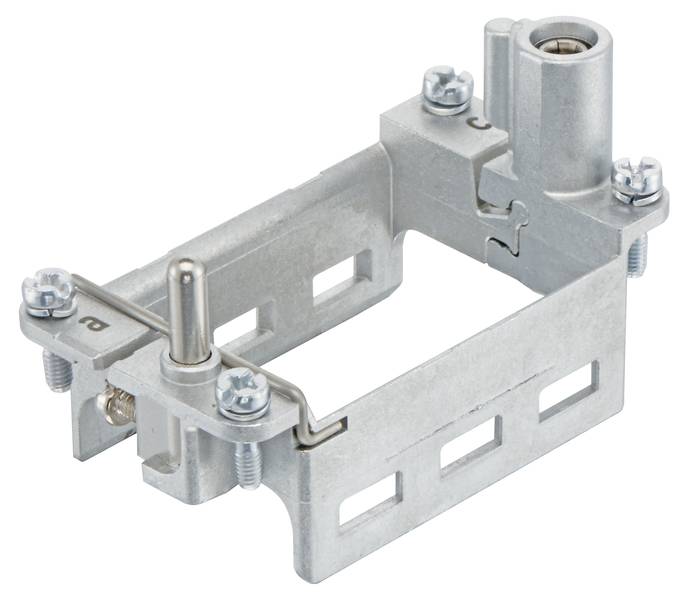

Joint frame plus 09140100371 HARTING Content: 1 pc(s) Joint bracket
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Joint bracket
Type
09 14 010 0371
Manufacturer part #
09140100371
Factory colour
Multicolour
Datasheet (PDF)
Technical specifications
- Series: HAN-Modular®
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Standards IEC 60664-1; IEC 61984
- Net weight: 45 g
- Material: Zinc die-cast; stainless steel
- Conductor cross-section: 1 ... 10 mm² PE (Power);0.5 ... 2.5 mm² PE (signal);The use of wire-end sleeves is recommended, cross-section 10 mm² only with wire-end sleeve crimping tool 09 99 000 0374.
- Accessory type: Joint frame plus
- Accessory description: For 3 modules;a ... c
- Design size 10 B
- Approvals DNV GL
- Packaging type
Piece
- Type
09 14 010 0371
- Product type
Joint bracket
- Manufacturer part #
09140100371
- Factory colour
Multicolour
- Content
1 pc(s)
- Material
Stainless steel
- Max. temperature
125 °C
Other
500
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3008154 Joint frame plus 09140100371 HARTING Content: 1 pc(s) Joint bracket
Datasheet 3008154 Joint frame plus 09140100371 HARTING Content: 1 pc(s) Joint bracket
User & Safety Instructions
User & Safety Instructions 3008154 Joint frame plus 09140100371 HARTING Content: 1 pc(s) Joint bracket
Description
Joint frames plus, for 3 modules, a ... c, size: 10 B.
