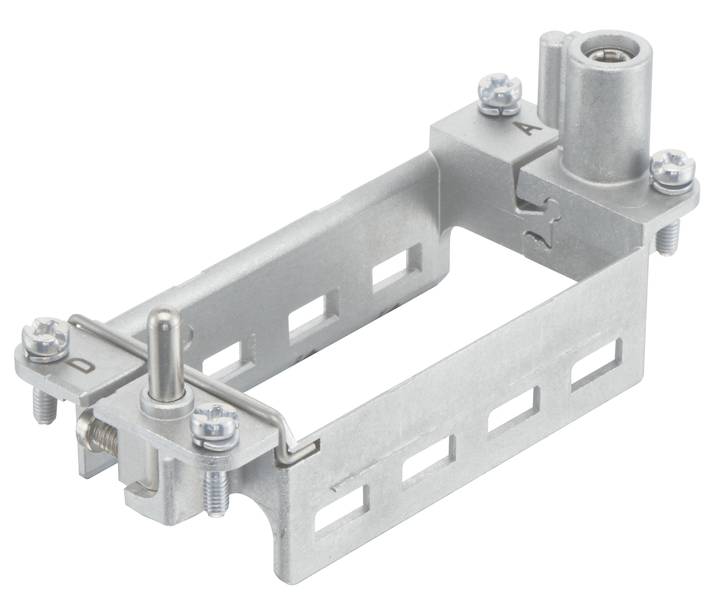

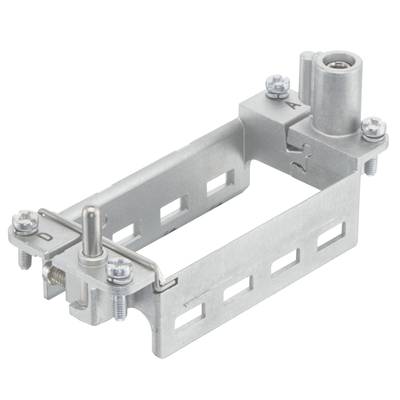

Joint frame plus 09140160361 HARTING Content: 1 pc(s) Joint bracket
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Joint bracket
Type
09 14 016 0361
Manufacturer part #
09140160361
Factory colour
Multicolour
Datasheet (PDF)
Technical specifications
- Series: HAN-Modular®
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Standards IEC 60664-1; IEC 61984
- Net weight: 50 g
- Material: Zinc die-cast; stainless steel
- Conductor cross-section: 1 ... 10 mm² PE (Power);0.5 ... 2.5 mm² PE (signal);The use of wire-end sleeves is recommended, cross-section 10 mm² only with wire-end sleeve crimping tool 09 99 000 0374.
- Accessory type: Joint frame plus
- Accessory description: For 4 modules;A ... D
- Design size 16 B
- Approvals DNV GL
- Packaging type
Piece
- Type
09 14 016 0361
- Product type
Joint bracket
- Manufacturer part #
09140160361
- Factory colour
Multicolour
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Max. temperature
125 °C
Other
500
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3008156 Joint frame plus 09140160361 HARTING Content: 1 pc(s) Joint bracket
Datasheet 3008156 Joint frame plus 09140160361 HARTING Content: 1 pc(s) Joint bracket
User & Safety Instructions
User & Safety Instructions 3008156 Joint frame plus 09140160361 HARTING Content: 1 pc(s) Joint bracket
Description
Joint frames plus, for 4 modules, A ... D, size 16 B
