Buy Jokari 40024 PWS-PLUS 001 Wire stripping tool Suitable for PVC-coated wires 0.12 up to 0.40 mm PVC Suitable for brand (p

Yellow wire stripping tool by Jokari, model PWS-PLUS 001, with scales for AWG and millimetre sizes.

'A person's hands using a yellow wire stripping tool to strip the insulation from a blue wire.'

Close-up of a yellow plastic device with screws and a red cable, featuring a black and red switch mechanism in the center.

'A person uses a yellow wire stripping tool to strip blue wire.'

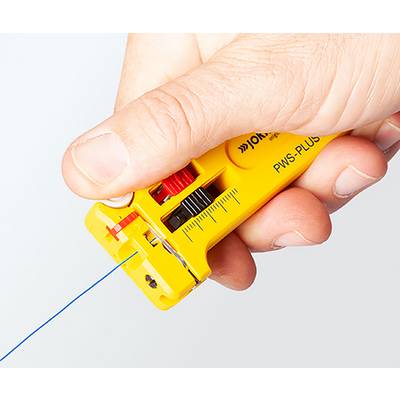

A hand holding a yellow wire stripping tool, partially stripping blue wire, with measurement markings on the tool's surface.

A hand using a yellow wire stripper tool to strip insulation off a red wire. The tool is labeled 'PWS-PLUS'.

A yellow cable stripping tool showing a close-up of a wire being stripped, with a red adjuster and measuring guide visible.

1/7

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

51 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 20.16 / piece)

€ 20.16

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Micro stripper PWS-Plus 001

Technical specifications

Capacity: 0.12 / 0.16 / 0.20 / 0.25 / 0.30/0.40 mm Ø Ø; AWG 36 / 34 / 32 / 30 / 28 / 26; with cutter for wires up to 1.00 mm diameter; including adjustable length stop; TÜV/GS-tested

Product type: Wire stripping tool

Suitable for: PVC-coated wires

Suitable for cable type: PVC

Operating range (diameter): 0.12 up to 0.40 mm

Working area diameter (min.): 0.12 mm

Operating range (diameter) (max.): 0.40 mm

Operating range (AWG diameter): 26 up to 36

Operating range (AWG cross section) (min.): 36

Operating range (AWG cross section) (max.): 26 awg

Length stop range: 1.5 up to 22 mm

Length stop (min.): 1.5 mm

Length stop (max.): 22 mm

Material: Special steel

Material properties: tempered

Length: 102 mm

Suitable for: JOKARI

Width: 14 mm

Weight: 34.5 g

Features: incl. spare blades

Height: 42 mm

Suitable for: Wire with outer insulation made of PVC, PTFE, KYNAR®, TEFZEL, MYLAR

Max. blade diameter: 0,8 mm

Type: PWS-Plus 001

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 821746 Jokari 40024 PWS-PLUS 001 Wire stripping tool Suitable for PVC-coated wires 0.12 up to 0.40 mm PVC Suitable for brand (p

User & Safety Instructions

User & Safety Instructions 821746 Jokari 40024 PWS-PLUS 001 Wire stripping tool Suitable for PVC-coated wires 0.12 up to 0.40 mm PVC Suitable for brand (p

Description

For applications in electronics, computer and network technology, alarm and bell systems, wire wrapping, telecommunications, data communication, modelling.

Features

For stripping wires and strands
Insulation range can be adjusted in stages of Ø 0.12/0.16/0.20/0.25/0.30/0.40 mm
Length stopper can be regulated
Cutter for wires up to Ø 1.00 mm
Lever blade can be exchanged
TÜV/GS-tested
