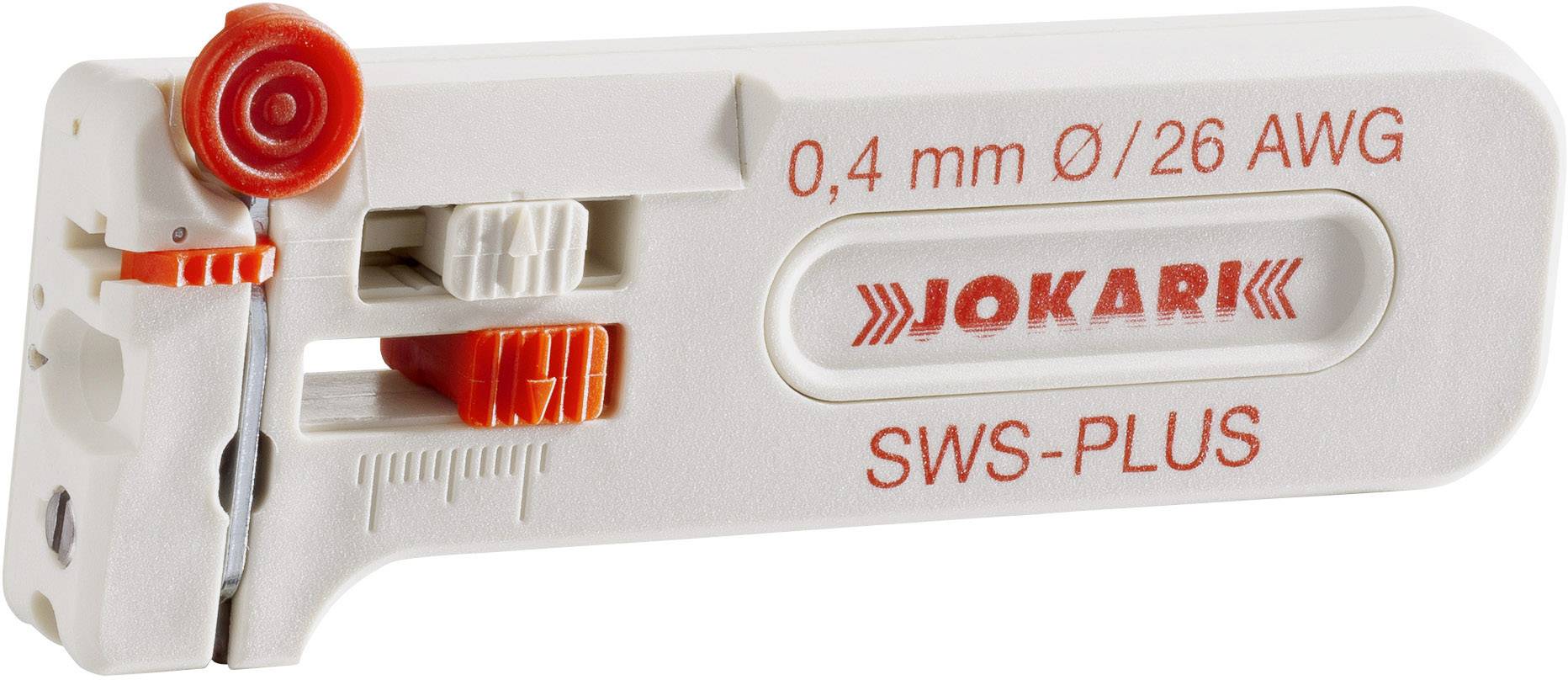

Jokari T40075 SWS-Plus 040 Electrical & precision engineering Wire stripping tool Suitable for PVC-coated cables 0.40 up
EAN:
Part number:
Item no:
Technical specifications
- Product type
Wire stripping tool
- Suitable for
PVC-coated cables
- Operating range (diameter)
0.40 up to 0.40 mm
- Working area diameter (min.)
0.40 mm
- Operating range (diameter) (max.)
0.40 mm
- Range of use
Electrical & precision engineering
- Operating range (AWG diameter)
26 up to 26
- Operating range (AWG cross section) (min.)
26
- Operating range (AWG cross section) (max.)
26 awg
- Braid diameter
0.40 mm
- Suitable for
JOKARI
- Weight
0.065 kg
- Features
Incl. mounting aid
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1538198 Jokari T40075 SWS-Plus 040 Electrical & precision engineering Wire stripping tool Suitable for PVC-coated cables 0.40 up
Description
Suitable for conductors and wires with 0.40 mm Ø, AWG 26. Particularly suitable for wire with outer insulation made of PVC, PTFE, KYNAR, TEFZEL, MYLAR. for applications in electronics, computer and network technology, alarm and bell systems, wire wrapping, telecommunications, data communication, modeling. especially popular at assembly workstations, as the operating range precise and fix on a conductor diameter, thus no damage to the relevant work pieces possible. including adjustable length stop. with cutter for wires up to 0.80 mm diameter. Lever blade can be exchanged TÜV / GS-approved.
Hints
This text is machine translated.
