Name: Jonsbo CB40 CPU cooler + fan #####Intel® 115x, #####Intel® 1200, #####Intel® 1700, #####FCLGA1851, AMD AM4, #####AMD AM5
Brand: Jonsbo
SKU: 3745330

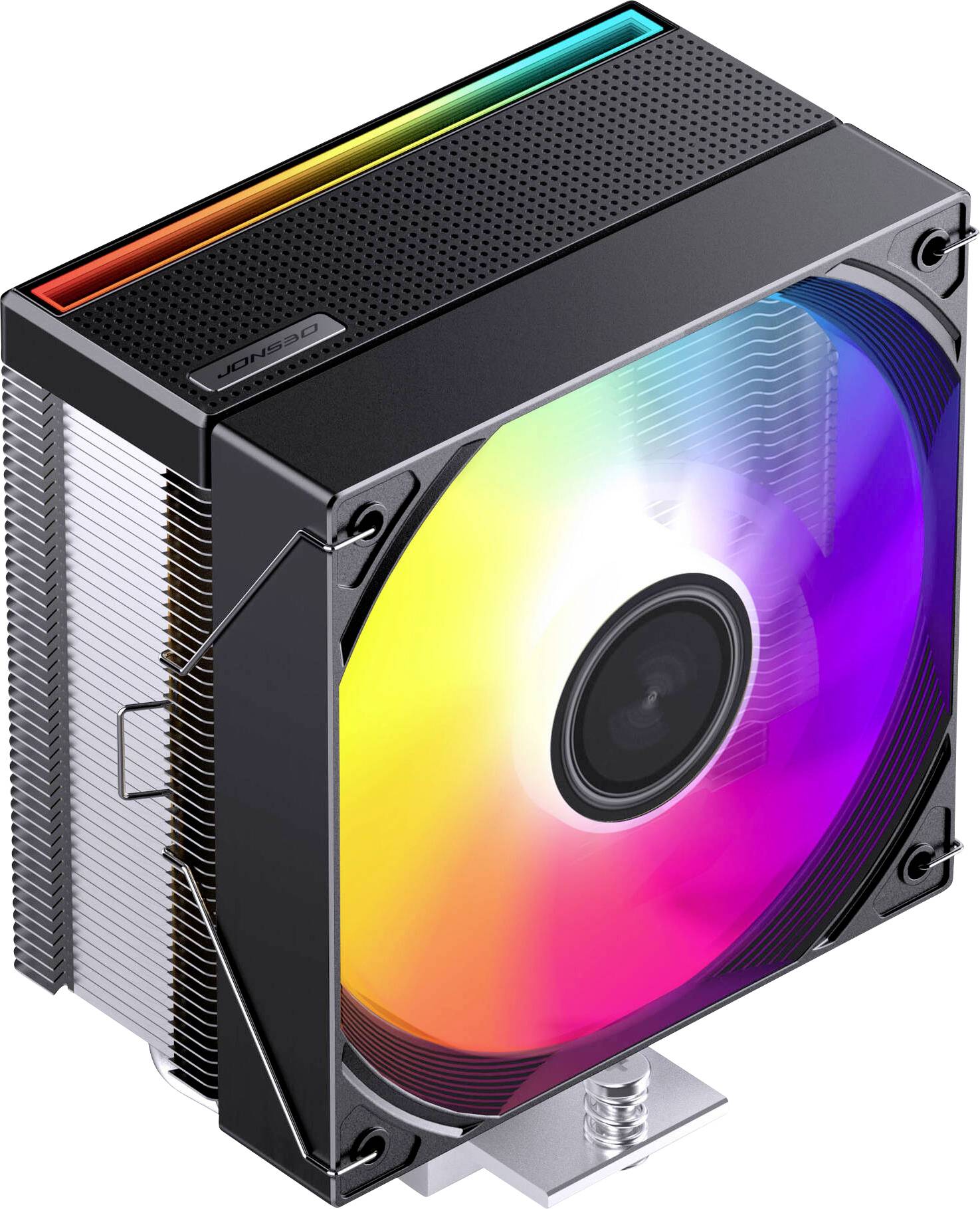

Black computer cooling fan with RGB-lit blades and heatsink, shown in a 3D product view.<br>

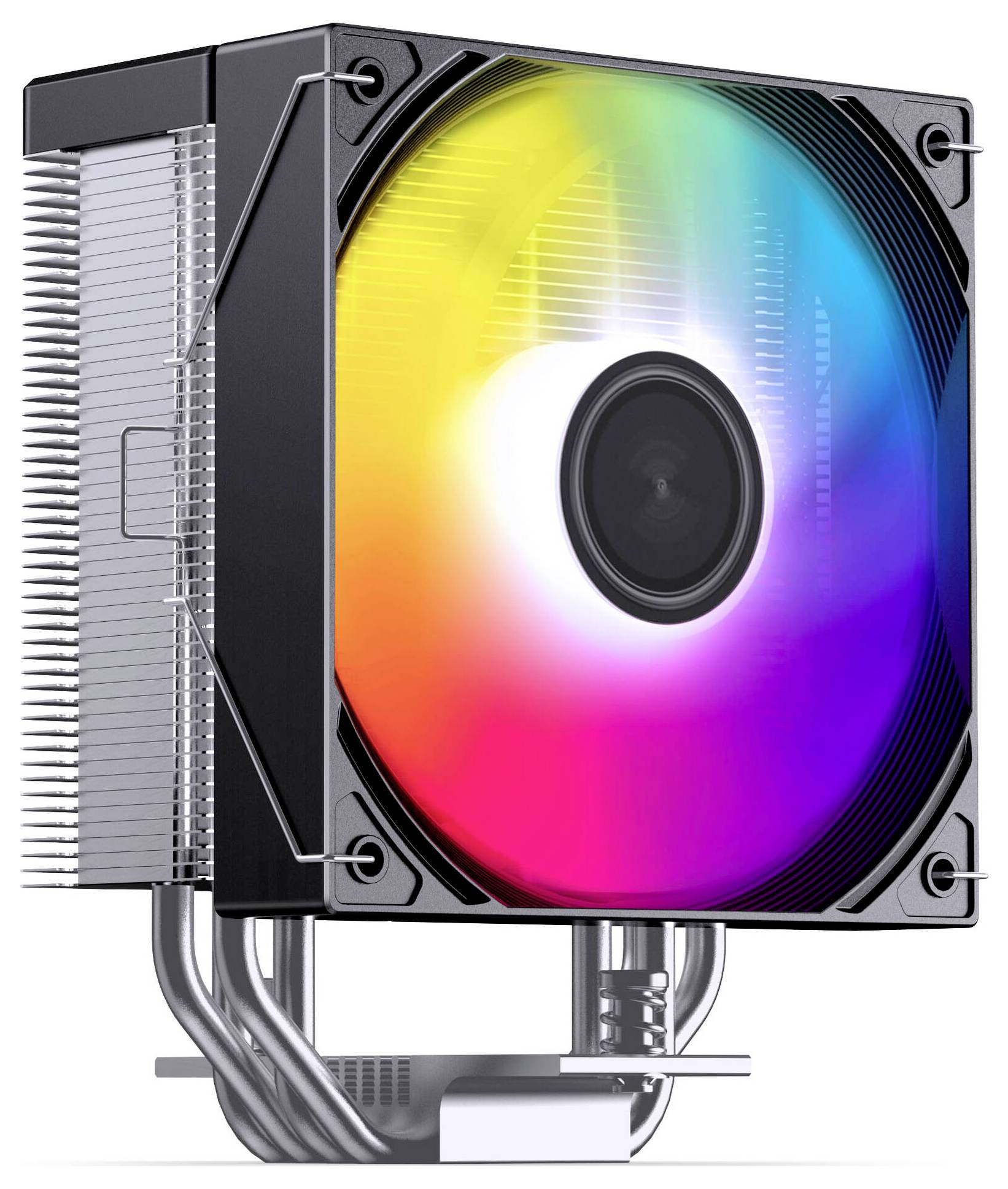

Computer CPU cooler with a large rainbow RGB fan and stacked aluminum heatsink with heat pipes.

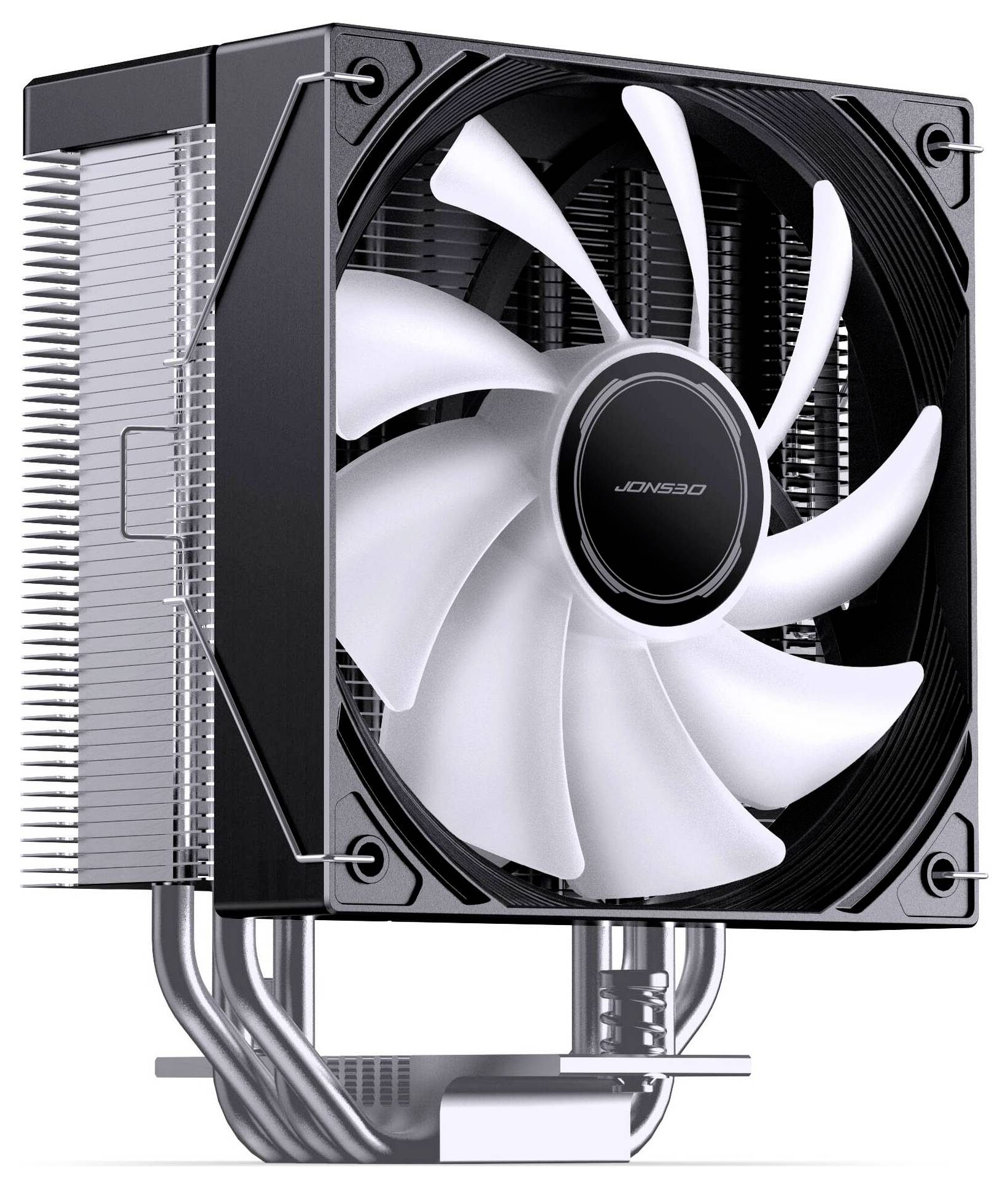

Black CPU air cooler with white fan and metal heat sink pipes, shown on a white background.<br>

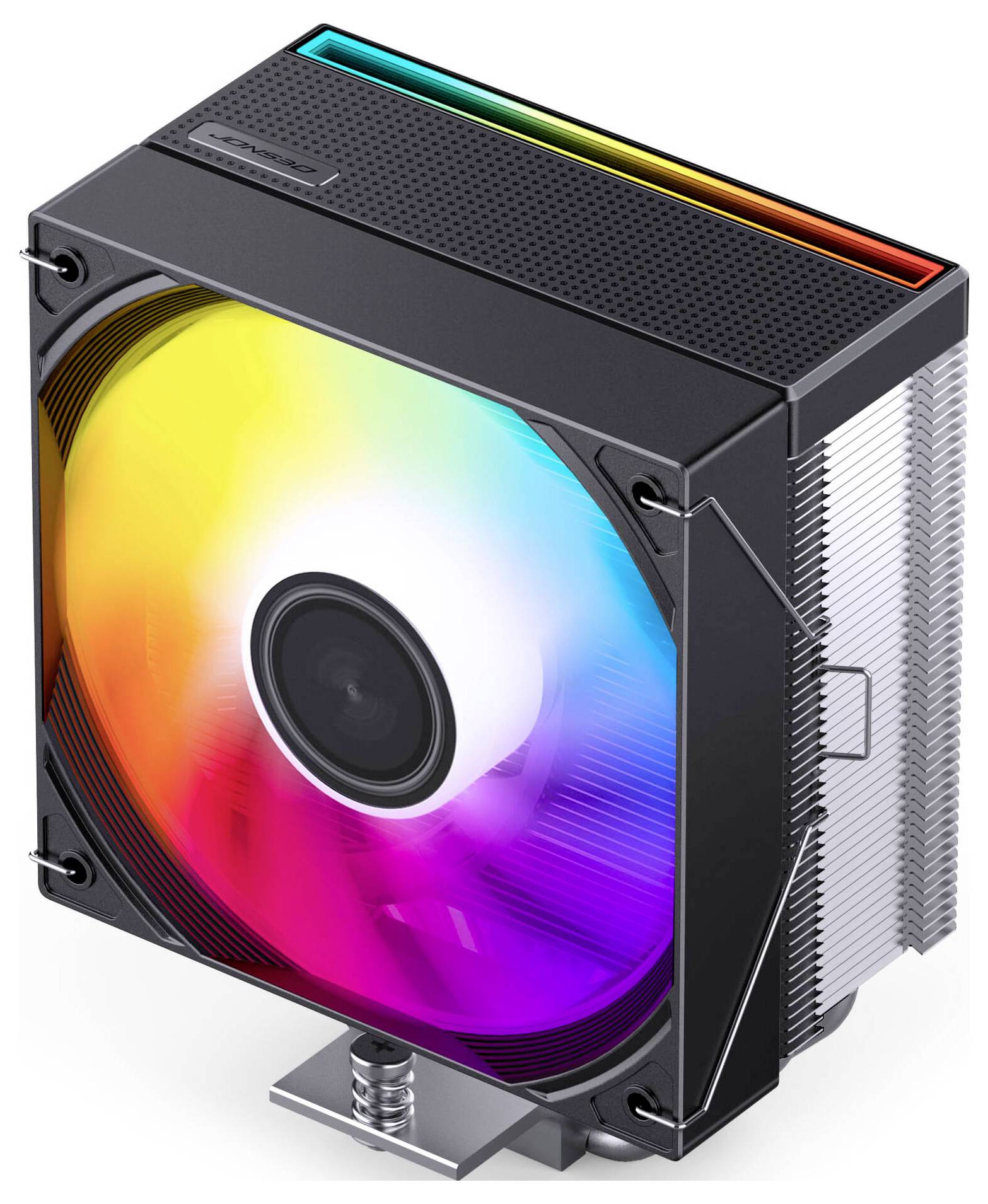

Compact computer cooling fan with RGB-lit blades and a black heatsink, shown in a three-quarter view against a white background.

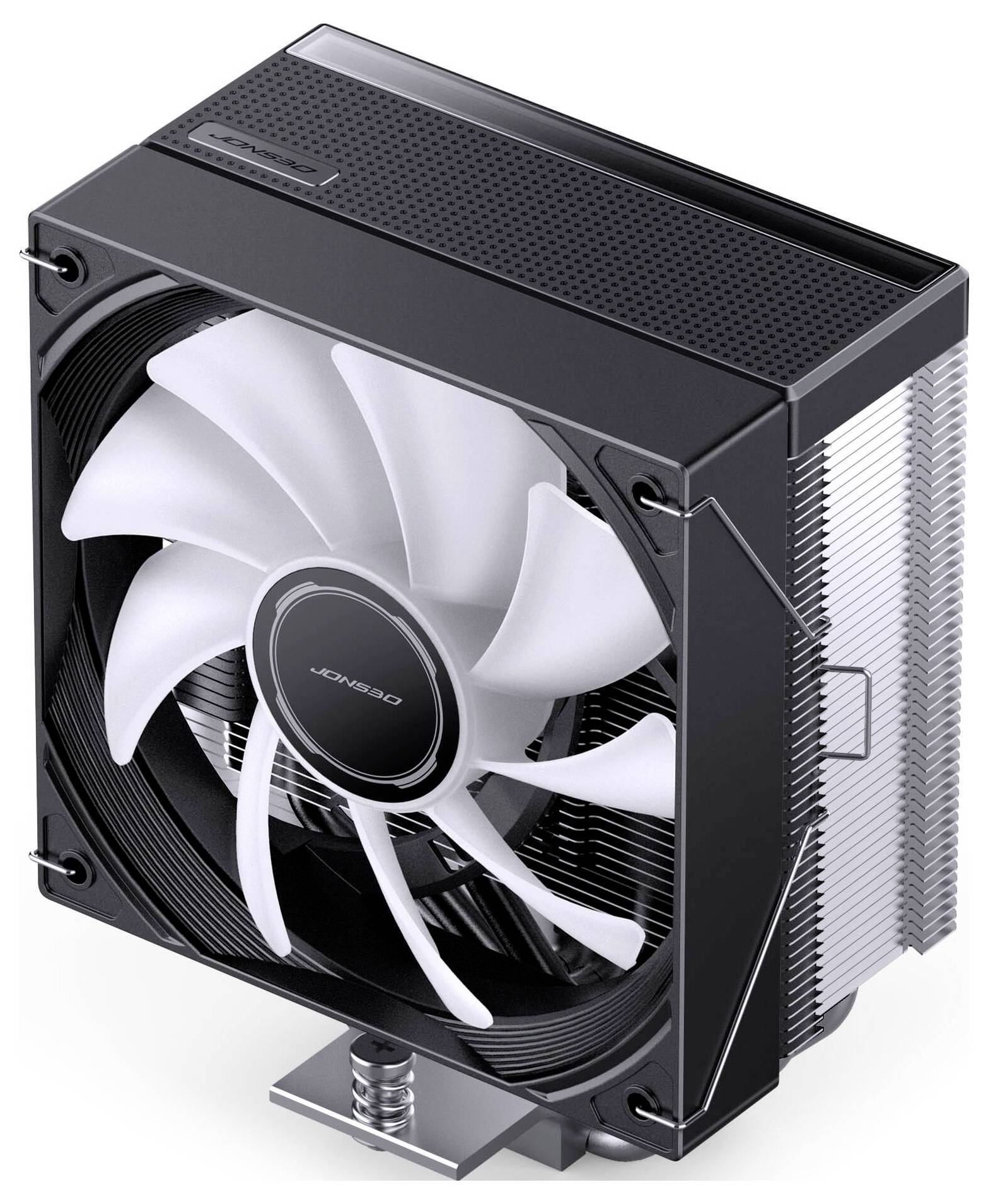

Black computer CPU cooler with large white fan and stacked metal heat sink on a silver base.

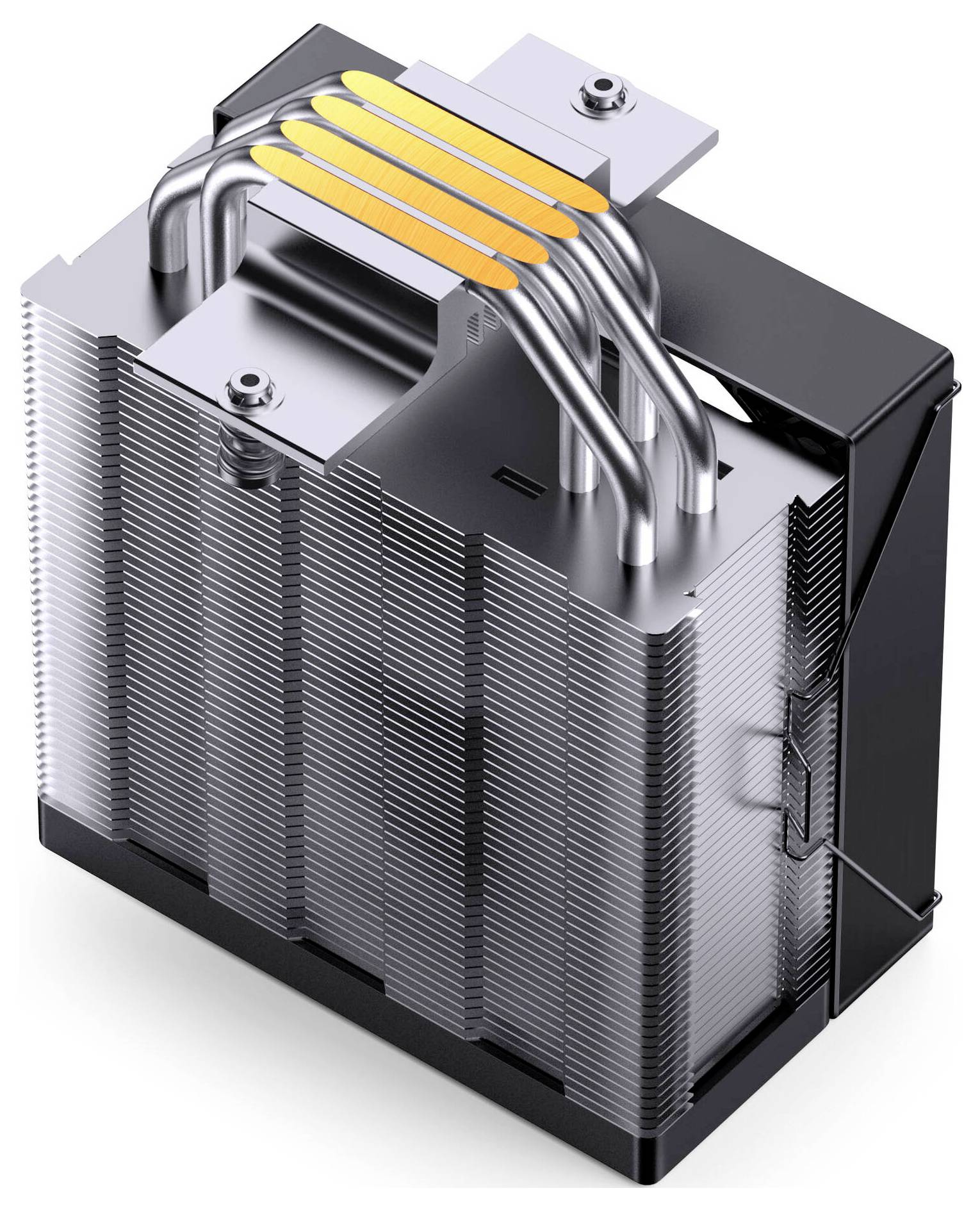

3D-rendered computer CPU cooler with stacked metal fins, four heat pipes, and a top-mounted fan shroud<br>

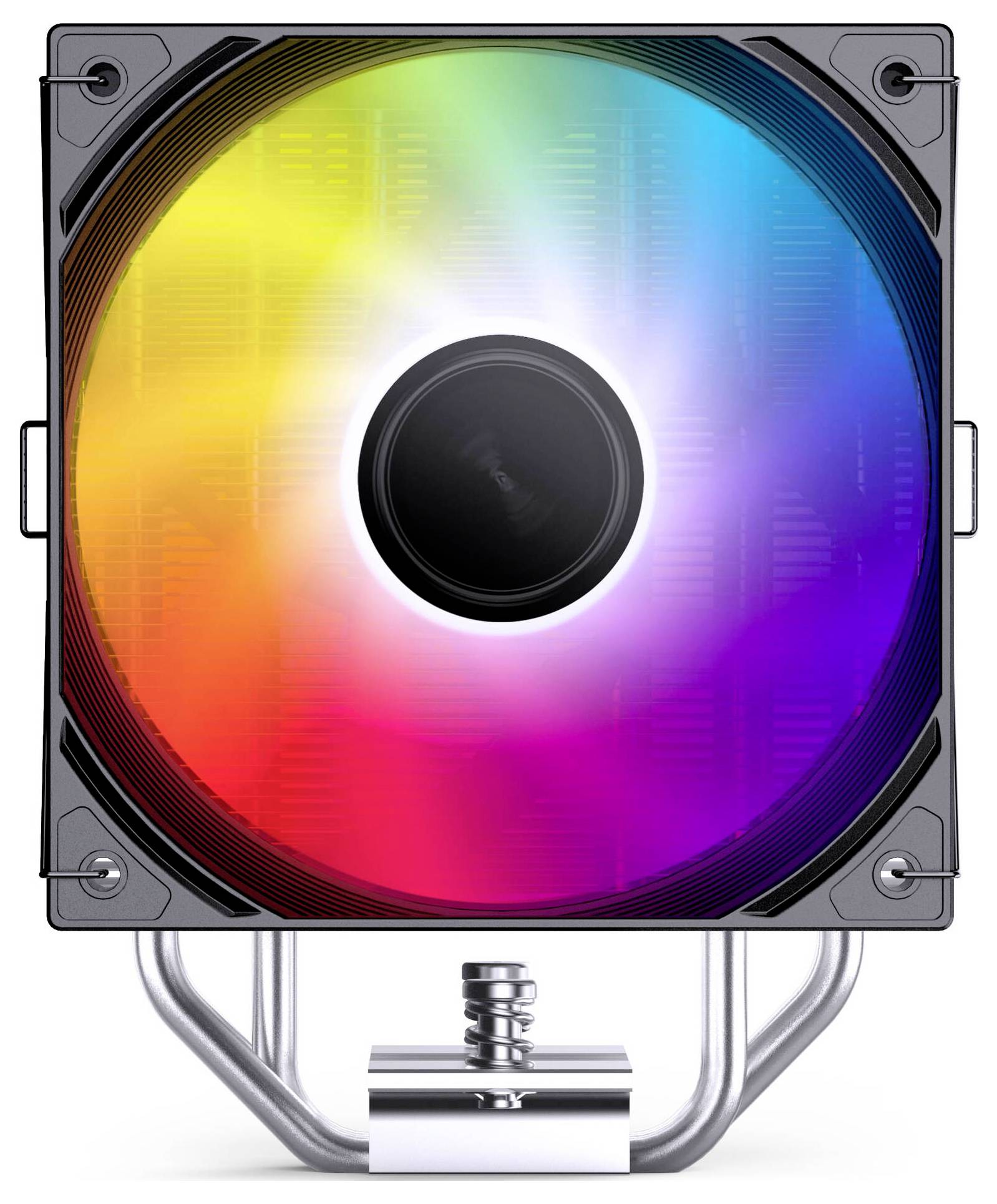

RGB computer cooling fan with a rainbow LED ring in a square gray frame and central hub, shown front-on against a white background.

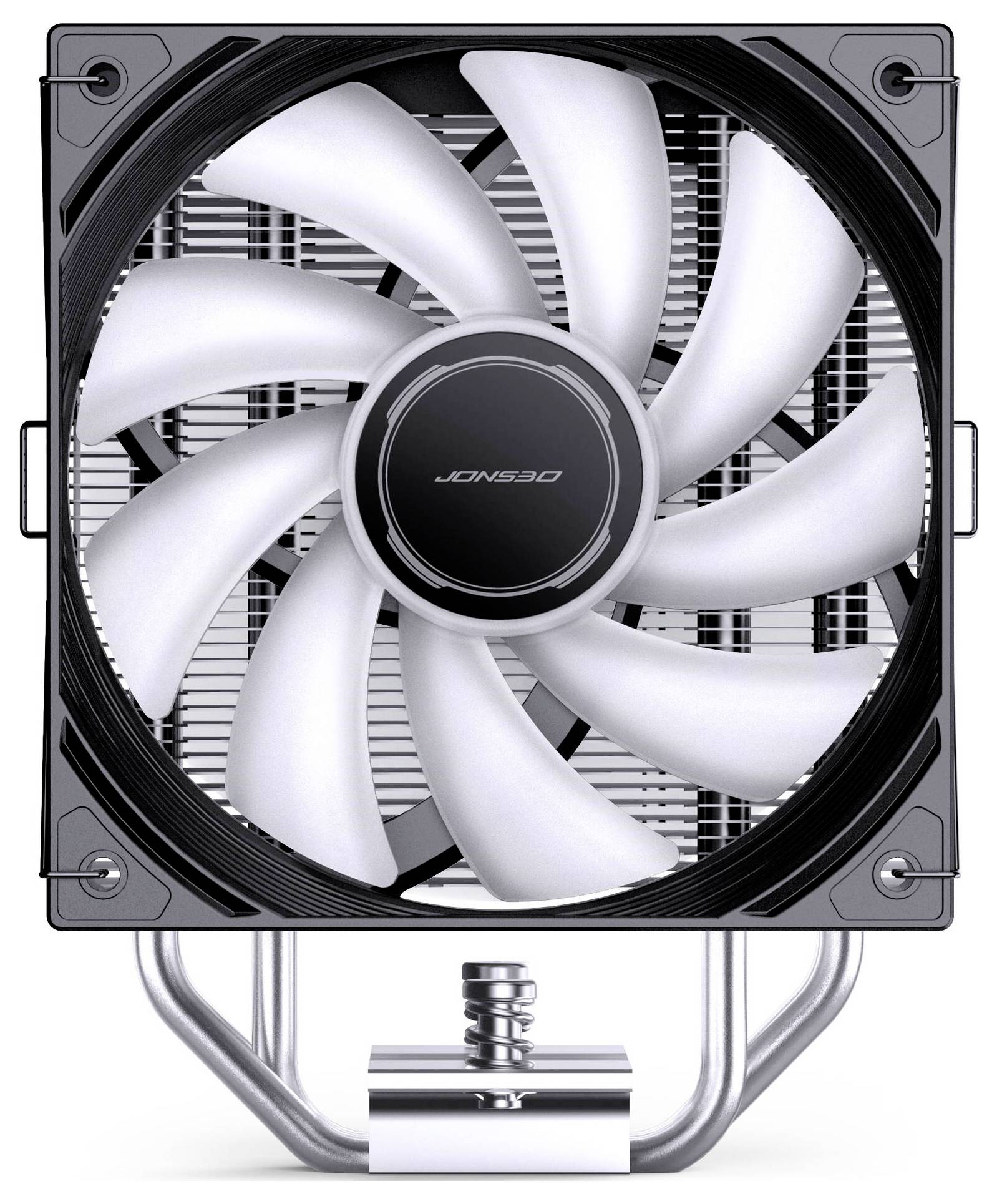

Black and white computer cooling fan with nine blades and a central 'JONSBO' hub, mounted on a metal heatsink bracket.

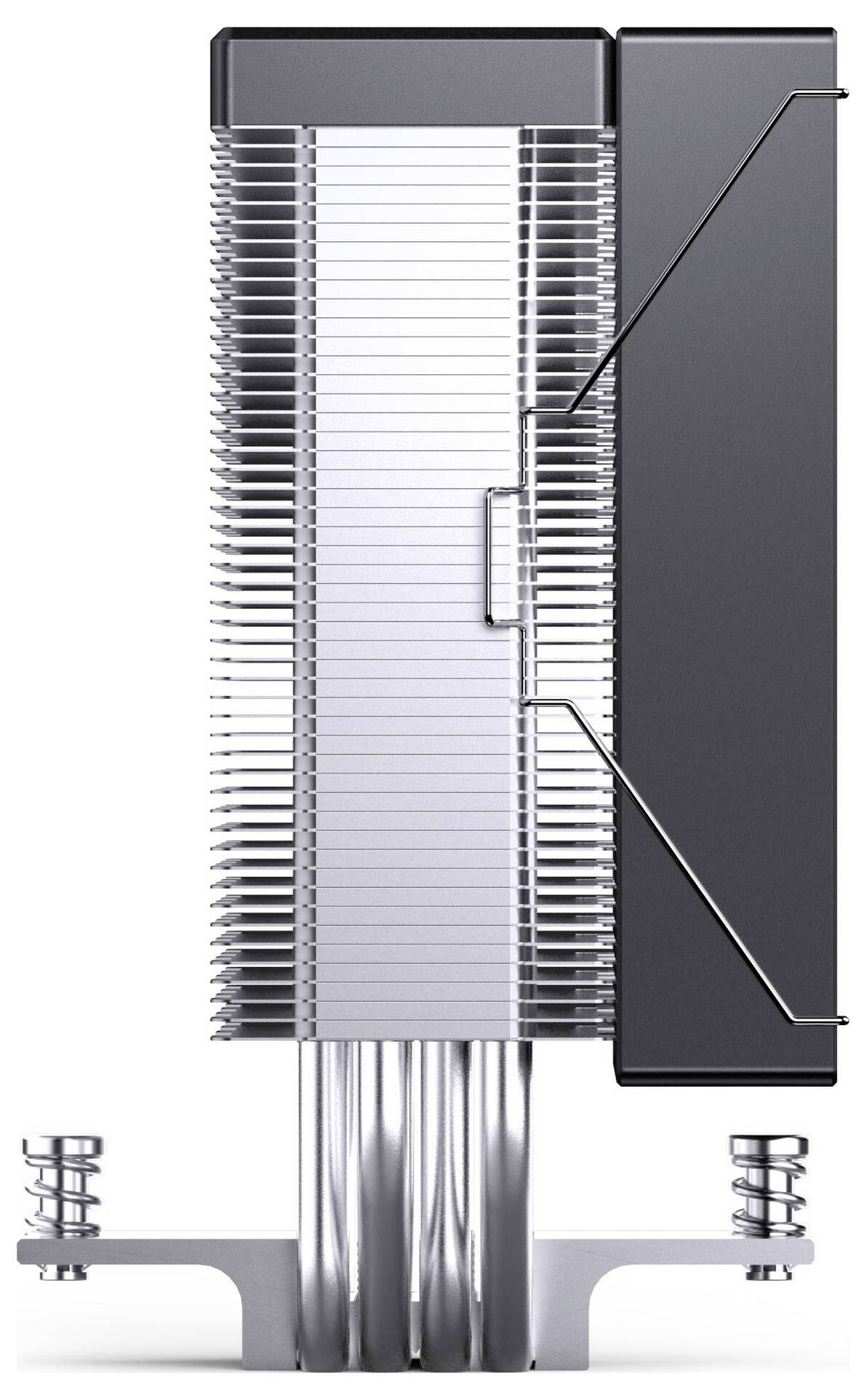

3D-rendered computer chip heatsink with stacked metal fins, a central thermal plate, and mounting bracket with spring screws<br>

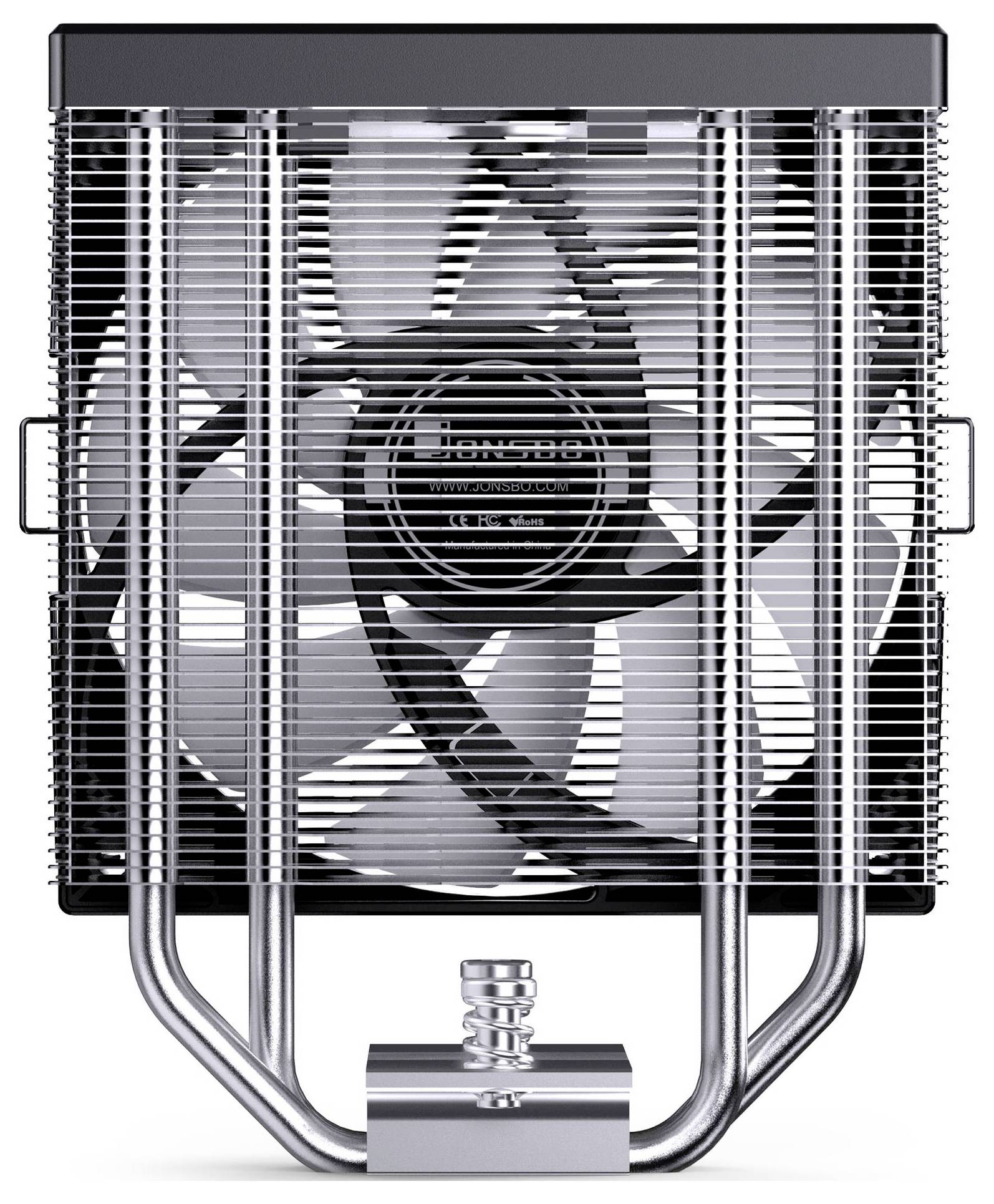

A front-view photo of a silver computer cooling fan with protective metal grille and mounting bracket, shown against a white background.

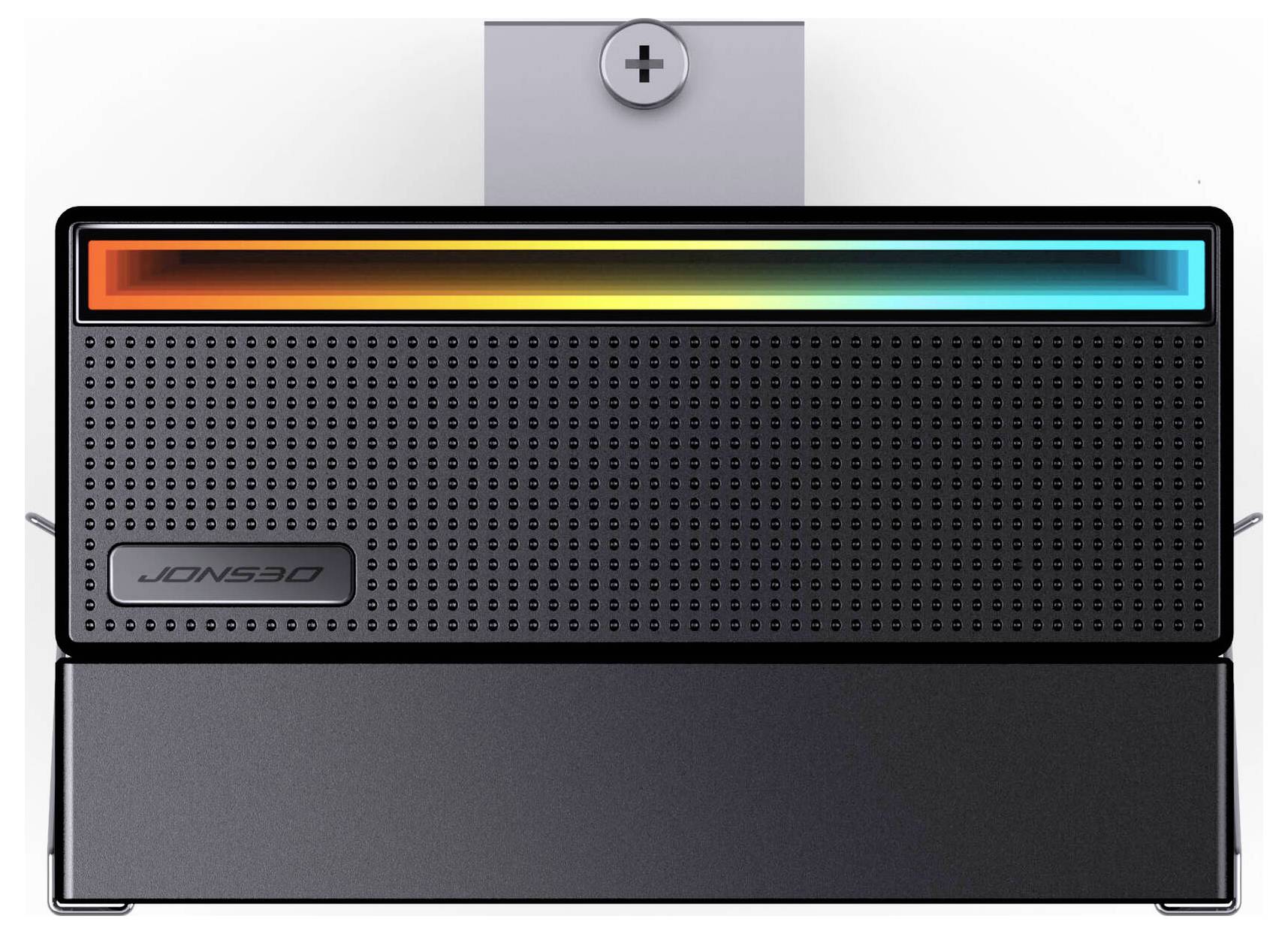

Front view of a black JONSBO computer case or enclosure with a rainbow light strip across the top and a perforated front panel.

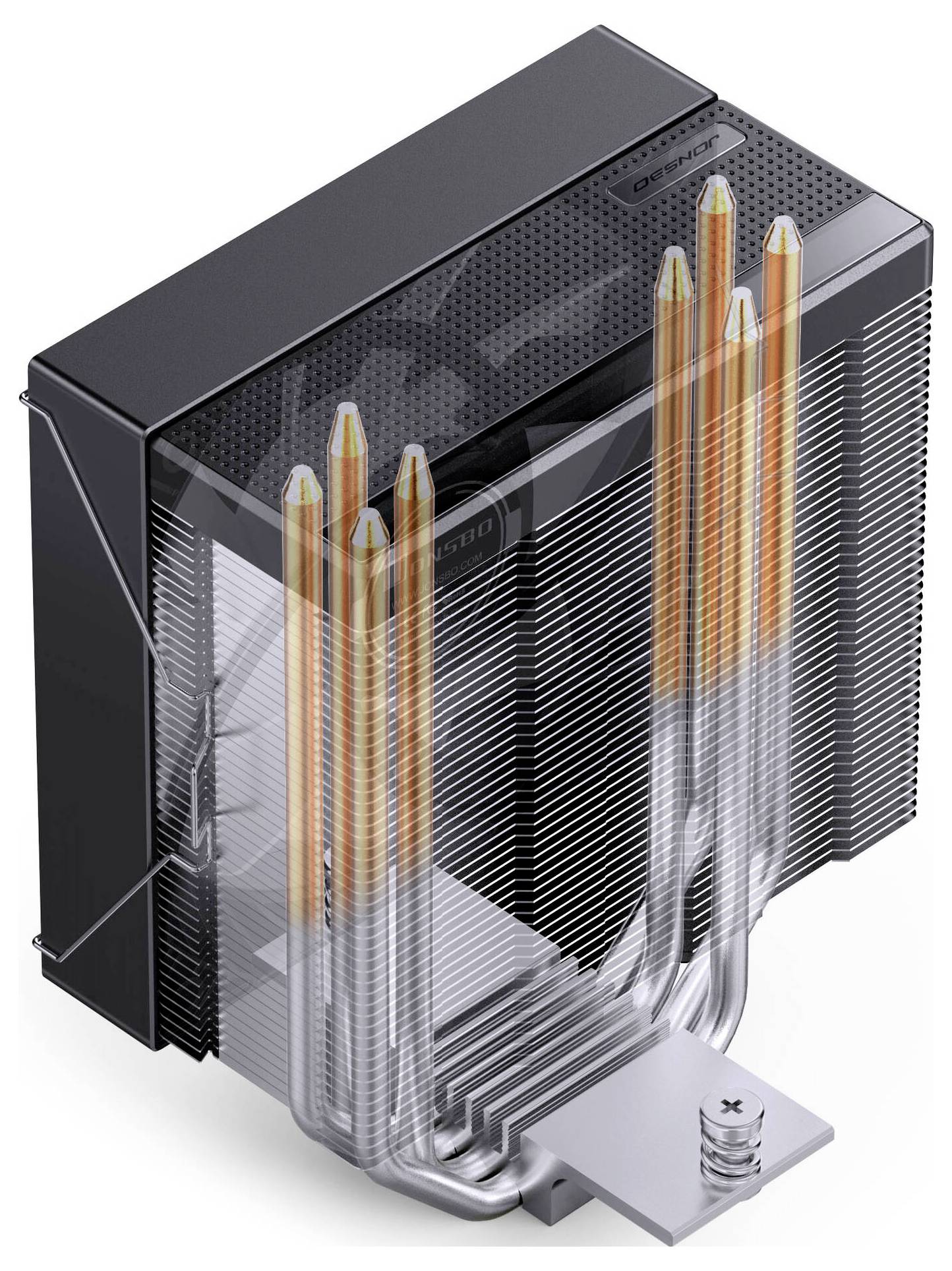

3D render of a CPU heatsink: stacked black fins with four copper heat pipes and a mounting bracket, shown on a white background.

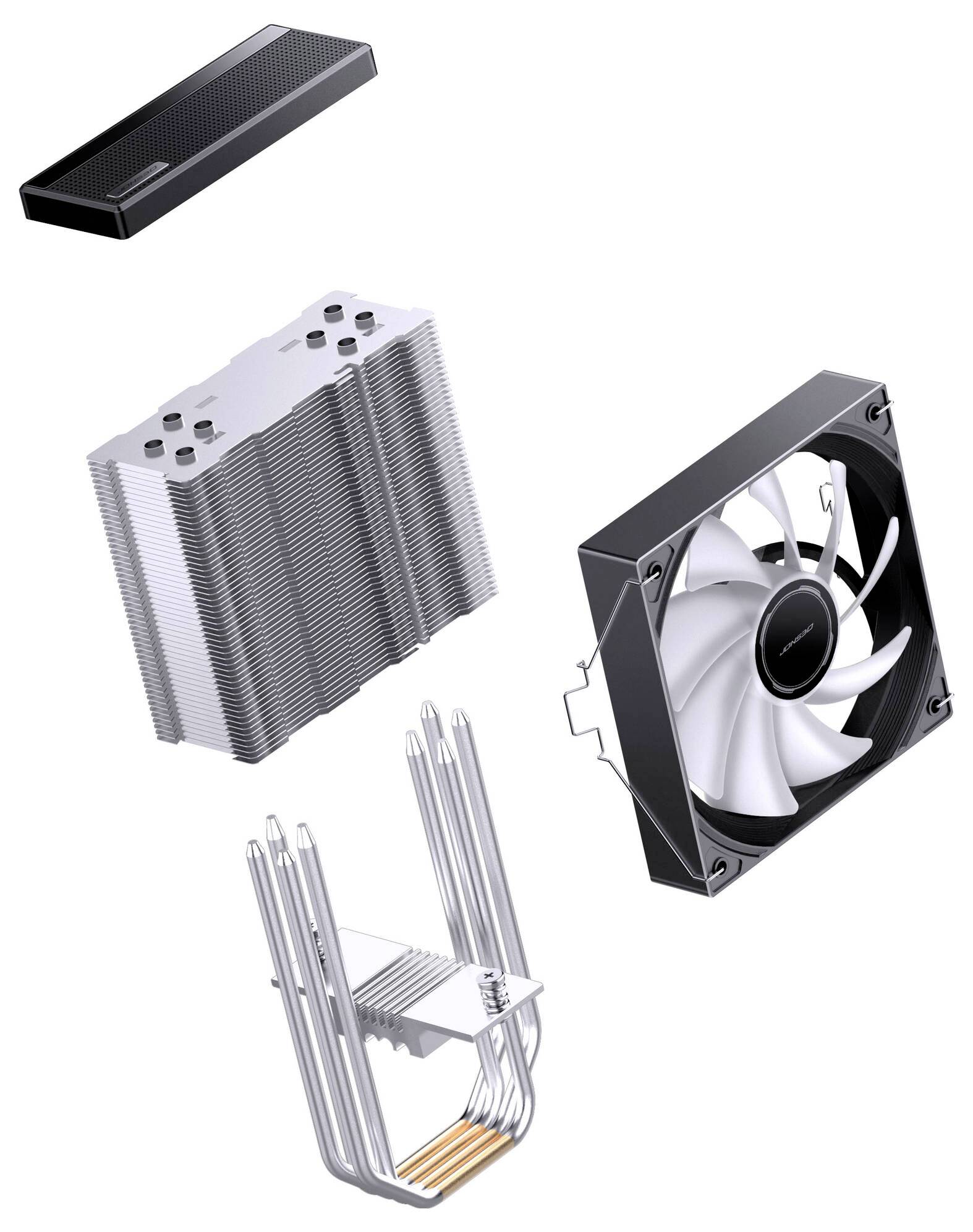

Exploded view of a computer CPU cooler showing the fan, heat sink, mounting bracket, and heat pipes.

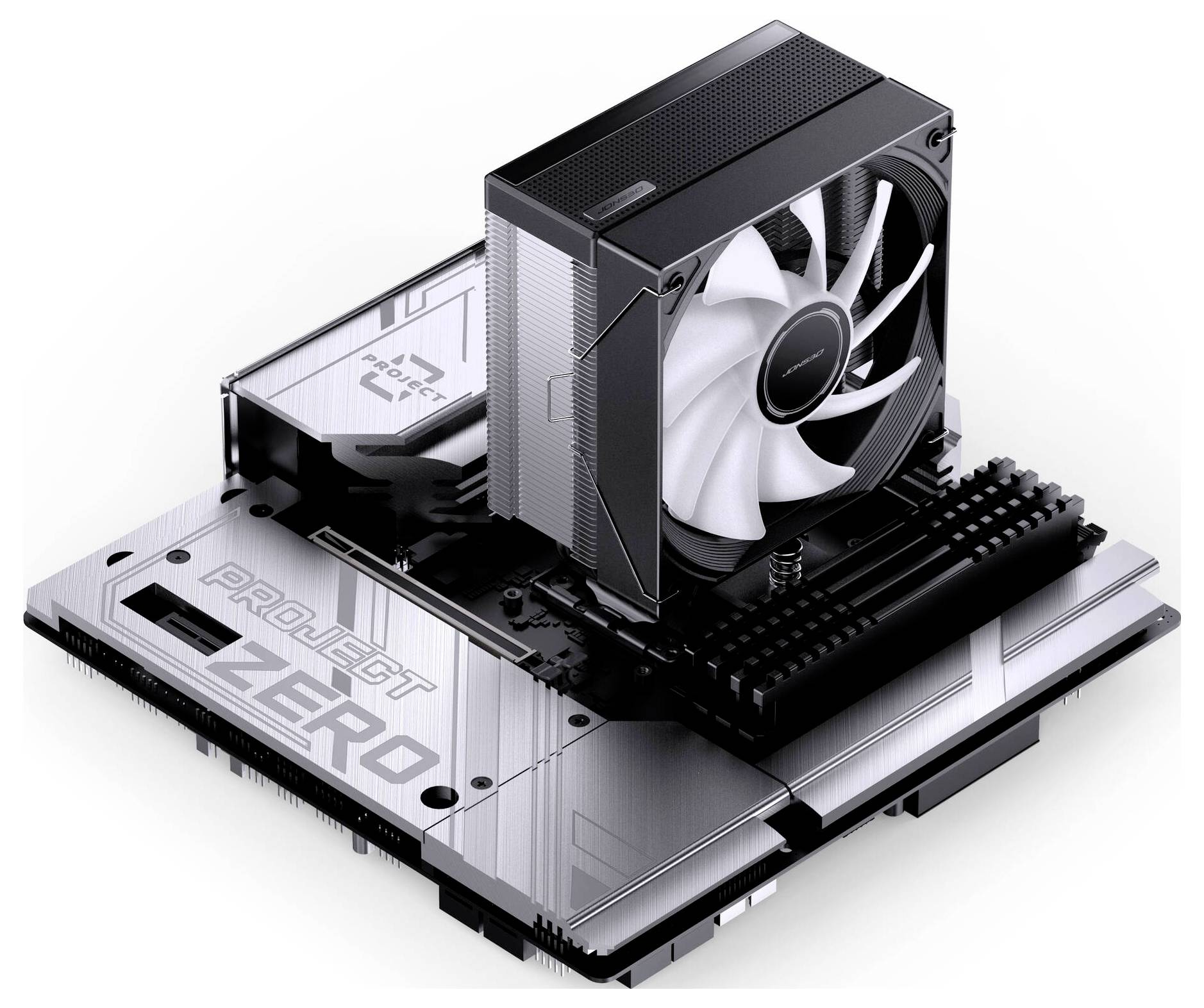

Desktop CPU cooler with a single fan mounted on a silver-and-black 'PROJECT ZERO' motherboard<br>

1/14

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Jonsbo CB40 CPU cooler + fan

4 heat pipes – efficient heat transport for stable CPU temperatures under load.
120 mm PWM fan – High air flow with automatic speed adjustment.
Direct-Contact basis – Direct contact with the CPU for improved heat transfer.
Aluminium heat sink – Large surface for effective heat dissipation.
Wide socket compatibility - Supports common Intel and AMD platforms.

Technical specifications

CPU SOCKETS 115X, 1200, 1700, 1851, AM4, AM5
1x digital RGB (3-pin 5VDG)
Max. TDP 225 W

Product type: CPU cooler + fan

: #####Intel® 115x
#####Intel® 1200
#####Intel® 1700
#####FCLGA1851
AMD AM4
#####AMD AM5

Noise emission (max.): 35.4 dB

Rotational speed (min.): 800 U/min

Rotational speed (max.): 1800 U/min

Air discharge: 35.4 l/h

Connection: 4-pin PWM

Weight: 820 g

Width: 120 mm

Height: 153.5 mm

Depth: 71 mm

Suitable for: Intel, AMD

Noise emission: 30.1 dB - 40 dB

Fan dimensions: 120 x 120 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3745330 Jonsbo CB40 CPU cooler + fan #####Intel® 115x, #####Intel® 1200, #####Intel® 1700, #####FCLGA1851, AMD AM4, #####AMD AM5

Description

The Jonsbo CB-40 Black is a powerful tower CPU air cooler for gaming and all-round systems. With four heat pipes and a 120-mm PWM-fan it offers reliable cooling performance with a simultaneous slim design.

Efficient tower cooling
The tower design provides targeted air circulation through the aluminum fins. The four heat pipes transport the waste heat quickly away from the processor. This allows temperatures to remain stable even in intensive applications.

Powerful 120 mm fan
The integrated 120-mm fan generates a strong air current for optimum cooling power. Thanks to PWM regulation the speed adjusts automatically to the system temperature. In this way a balance between performance and volume is achieved.

Simple design for versatile builds
With its black appearance, the CB-40 fits seamlessly into various systems. It is suitable for gaming-PCs as well as for powerful daily computing. Functionality and clear design are of primary importance.

This text is machine translated.
