Jonsbo CB80 CPU cooler + fan #####Intel® LGA 115x, Intel® 1200, Intel® 1700, #####Intel® 1851, AMD AM4, #####AMD AM5
EAN:
Part number:
Item no:
Highlights & Details

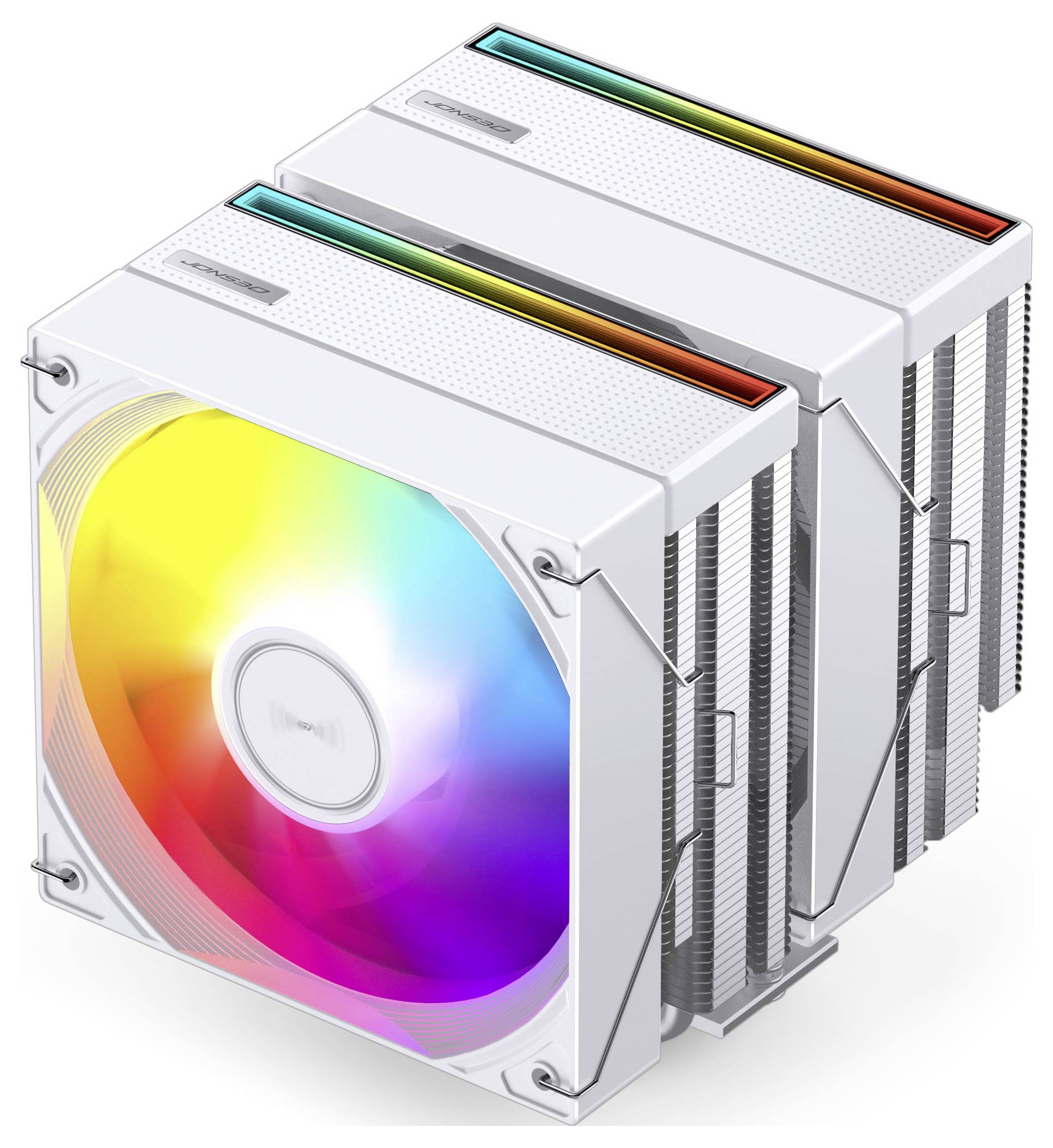

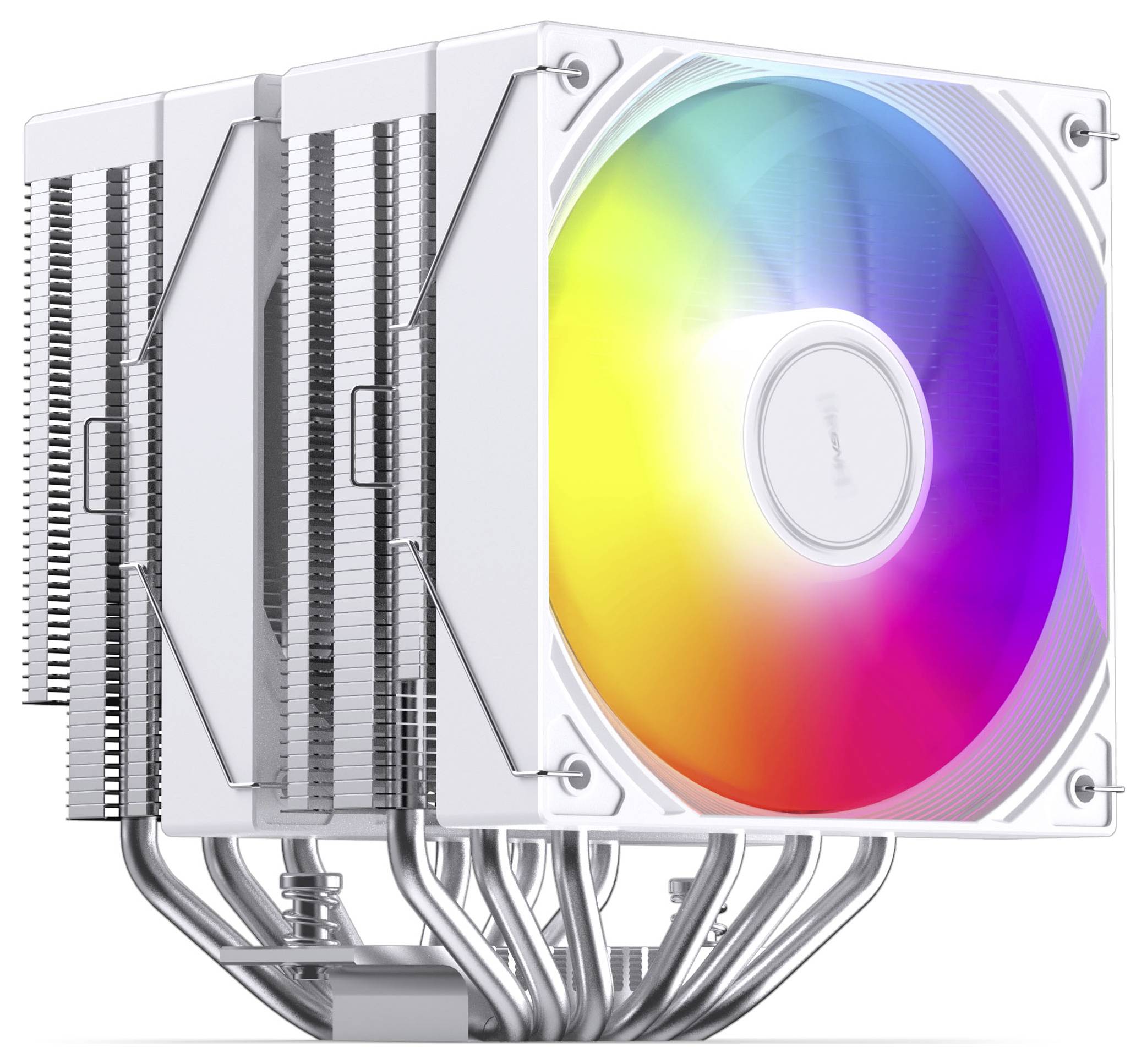

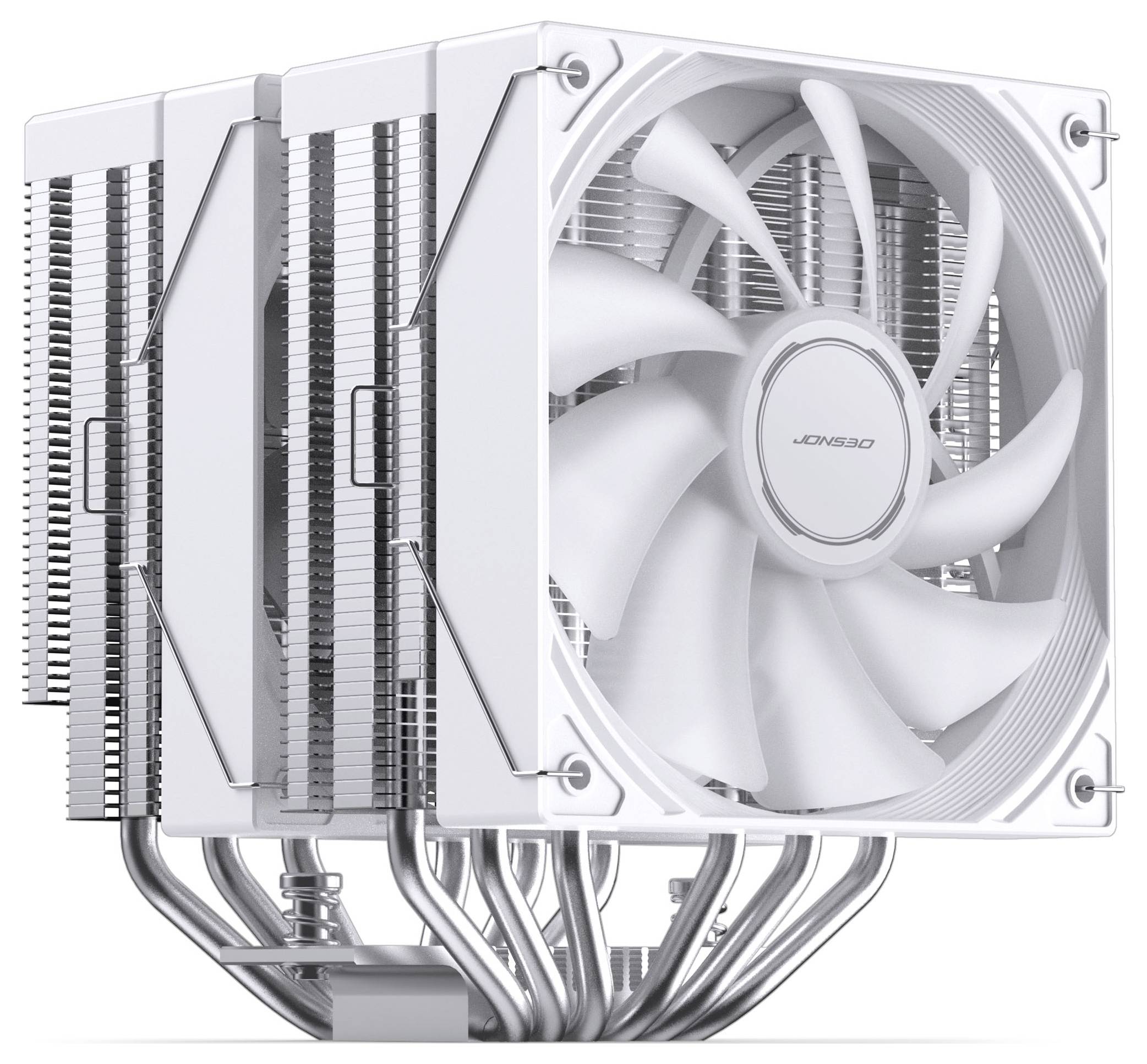

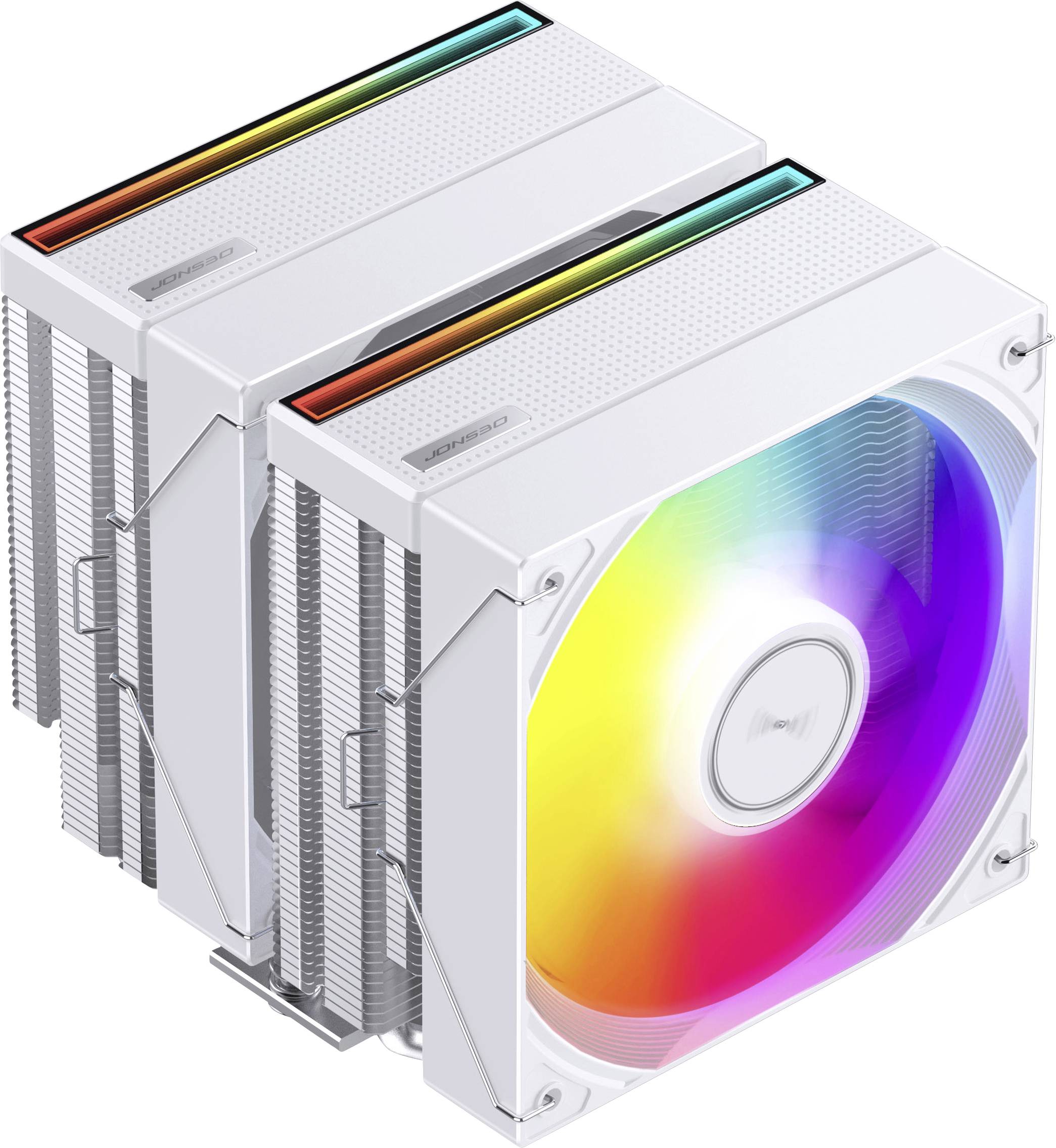

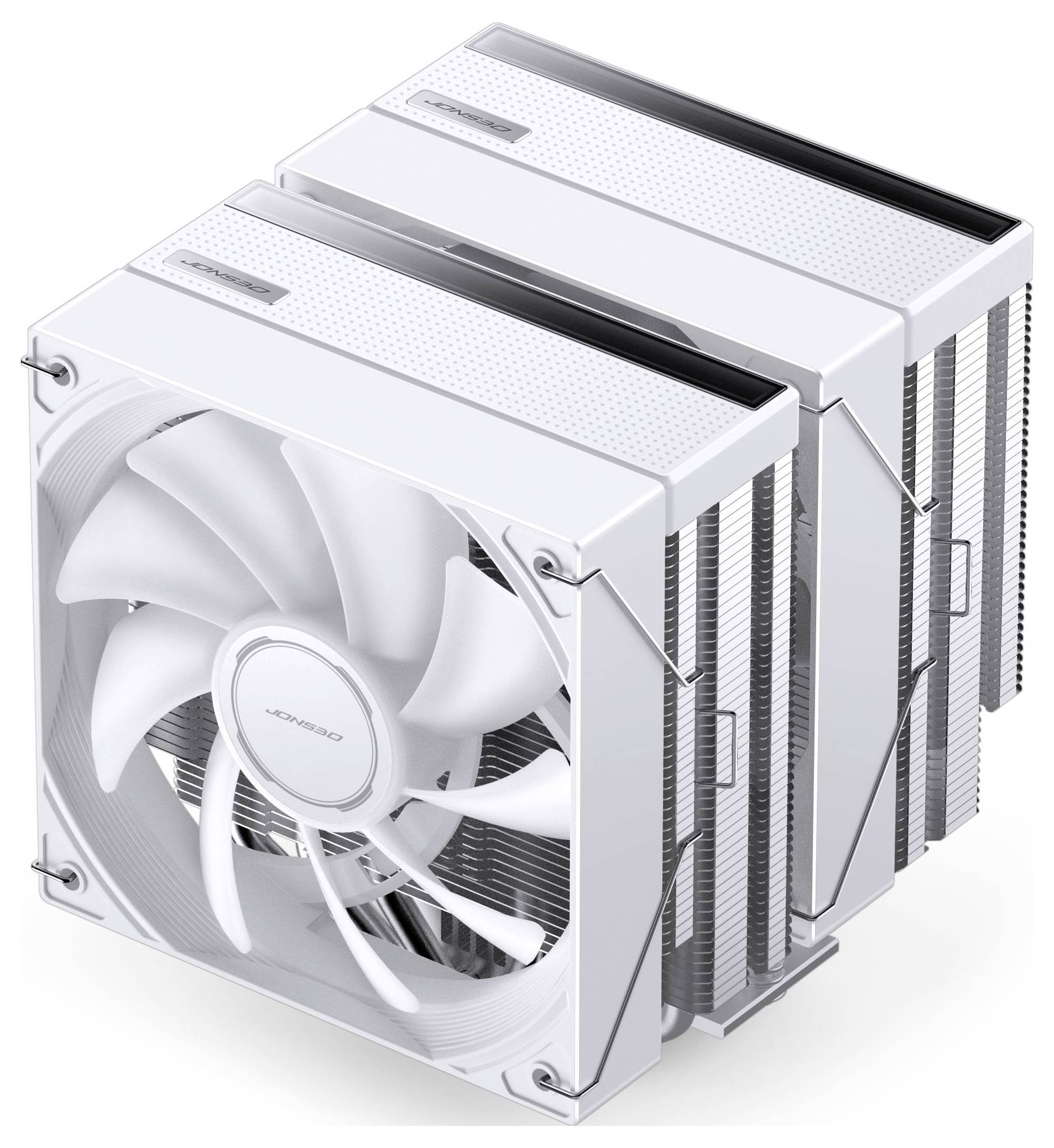

Jonsbo CB80 CPU cooler + fan
- 6 heat pipes – efficient heat transport for stable temperatures under high load.
- 120 mm PWM fan – automatic speed adjustment for quiet and powerful operation.
- Dual tower heatsink - Enlarged surface for improved heat removal.
- Direct-Contact base station – Direct contact with the CPU for optimum heat transfer.
- Wide socket compatibility - Supports common Intel and AMD platforms.
Technical specifications
- CPU SOCKETS 115X, 1200, 1700, 1851, AM4, AM5
- 1x digital RGB (3-pin 5VDG)
- Max. TDP 260 W
- Product type
CPU cooler + fan
#####Intel® LGA 115x
Intel® 1200
Intel® 1700
#####Intel® 1851
AMD AM4
#####AMD AM5
- Noise emission (max.)
35.4 dBa
- Rotational speed (min.)
800 U/min
- Rotational speed (max.)
1800 U/min
- Connection
4-pin PWM
- Weight
1200 g
- Width
135 mm
- Height
153 mm
- Depth
120 mm
- Suitable for
Intel, AMD
- Noise emission
30.1 dBa - 40 dBa
- Fan dimensions
120 x 120 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3776396 Jonsbo CB80 CPU cooler + fan #####Intel® LGA 115x, Intel® 1200, Intel® 1700, #####Intel® 1851, AMD AM4, #####AMD AM5
Description
The Jonsbo CB-80 is a powerful Dual tower CPU air cooler for gaming and performance systems. With six heat pipes and a 120-mm-PWM fan it offers high cooling reserves for modern multi-core processors.
High cooling power in Dual tower design
The Dual tower layout significantly increases the available cooling area compared to single tower solutions. Thus more waste heat can be distributed and dissipated efficiently. This is especially advantageous in high-performance CPUs.
Efficient heat transfer with 6 heat pipes
The six heat pipes conduct the waste heat quickly from the processor in the aluminum fins. In combination with the 120 mm fan, a powerful, directed air flow is produced. Thus, the performance remains constant even under continuous load.
Quiet performance thanks to PWM
Thanks to PWM-control the fan speed adjusts automatically to the system temperature. In idle mode the cooler works pleasantly quiet, under load the cooling power is increased selectively. This ensures a balanced balance between performance and noise.
This text is machine translated.
High cooling power in Dual tower design
The Dual tower layout significantly increases the available cooling area compared to single tower solutions. Thus more waste heat can be distributed and dissipated efficiently. This is especially advantageous in high-performance CPUs.
Efficient heat transfer with 6 heat pipes
The six heat pipes conduct the waste heat quickly from the processor in the aluminum fins. In combination with the 120 mm fan, a powerful, directed air flow is produced. Thus, the performance remains constant even under continuous load.
Quiet performance thanks to PWM
Thanks to PWM-control the fan speed adjusts automatically to the system temperature. In idle mode the cooler works pleasantly quiet, under load the cooling power is increased selectively. This ensures a balanced balance between performance and noise.
This text is machine translated.
Features
- 120 mm PWM fan
- 6 heat pipes
- Dual tower design
- Direct contact
- Intel & AMD compatible
