Jonsbo D33 STD Microtower PC casing White
EAN:
Part number:
Item no:
Highlights & Details

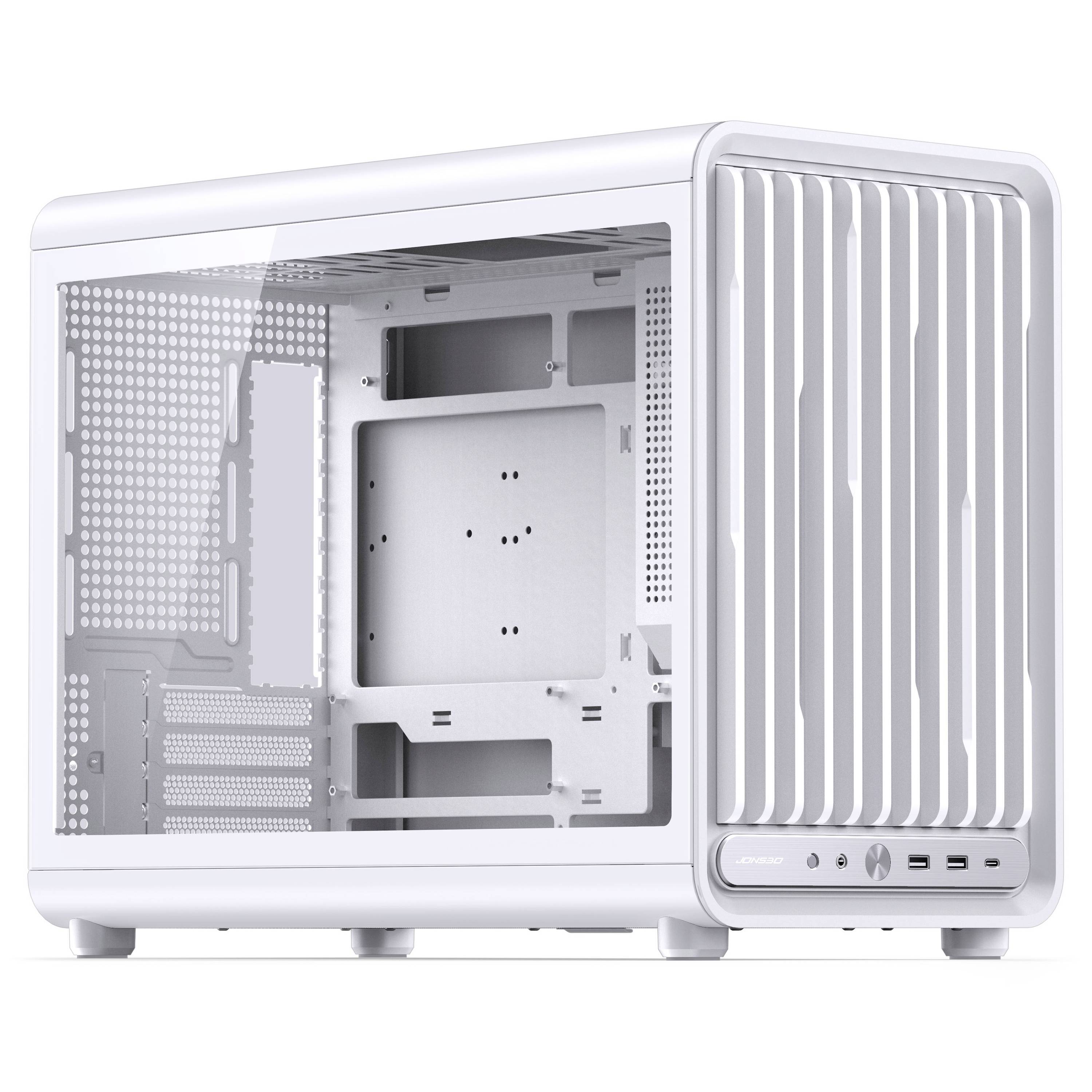

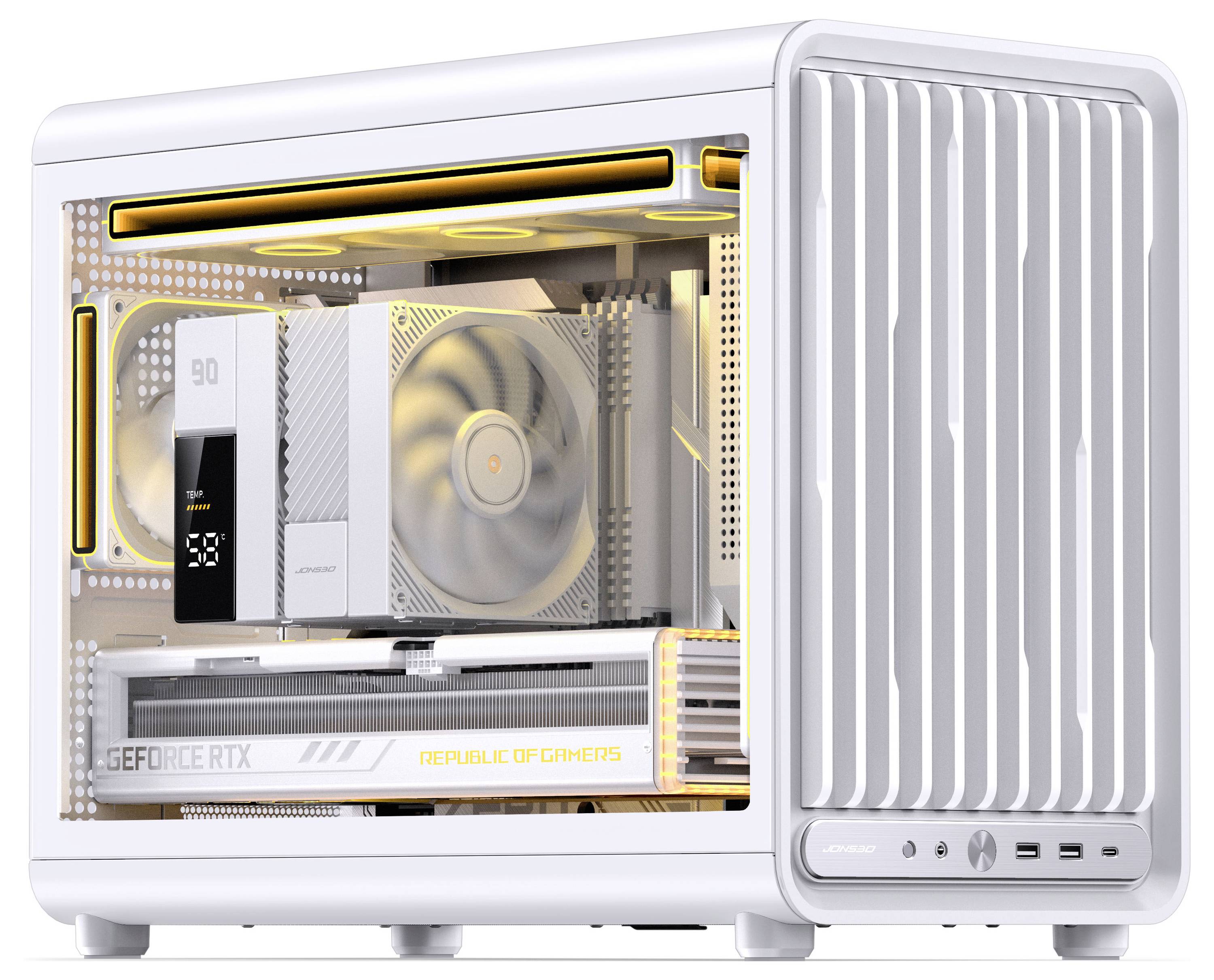

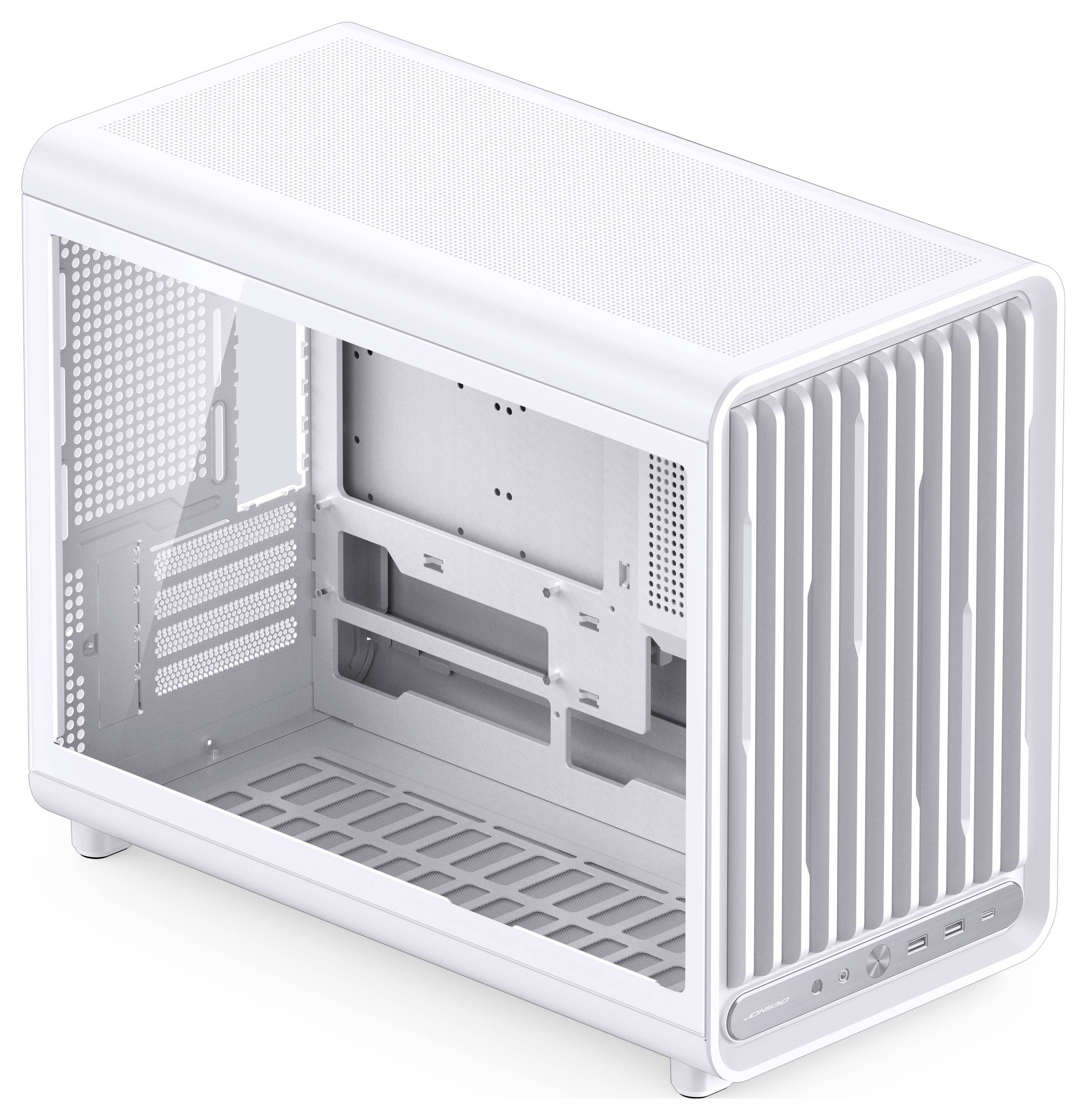

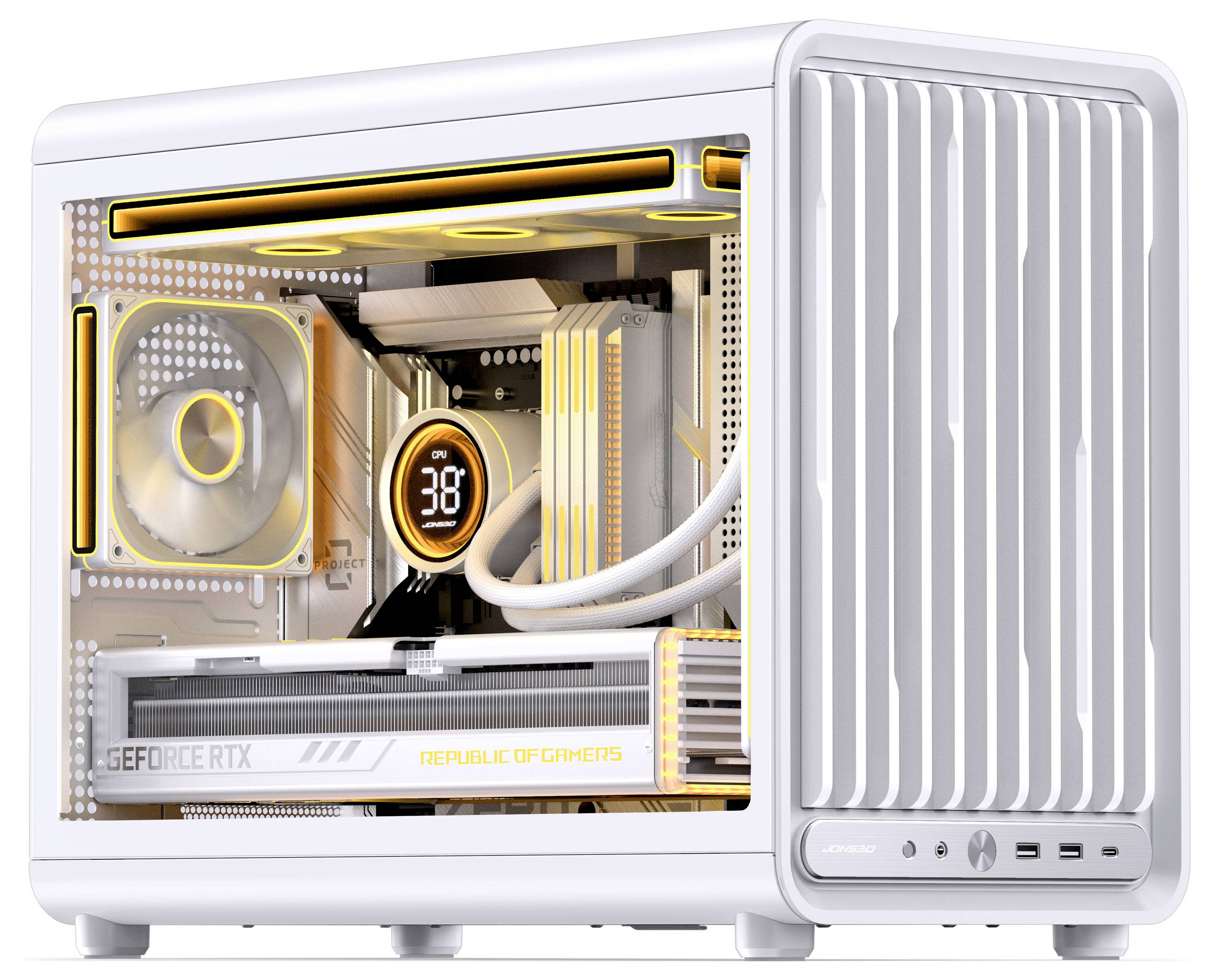

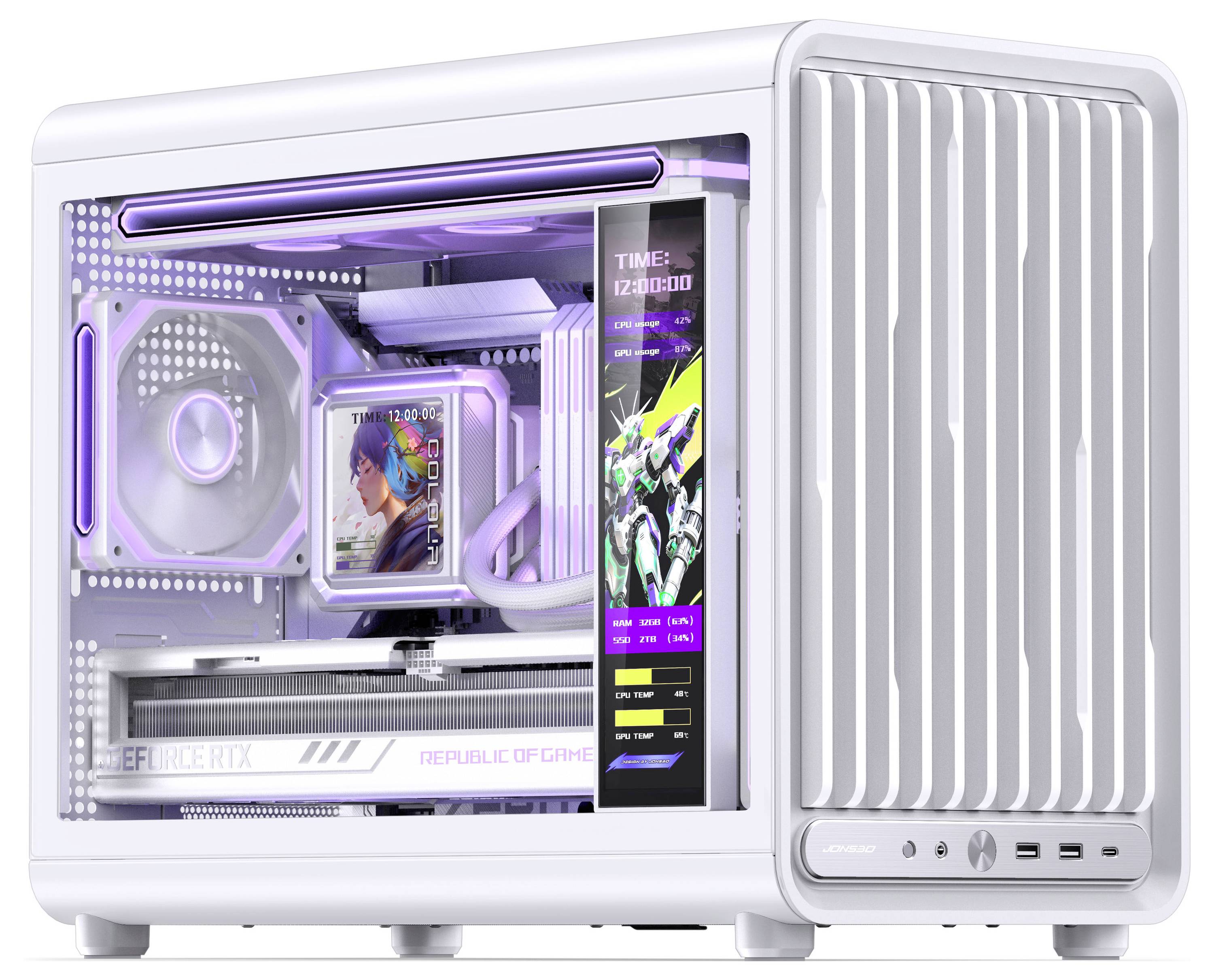

Jonsbo D33 STD Microtower PC casing
- Micro-ATX casing
- Up to nine fans
- Space for radiator up to 360 mm
- Motherboards to mATX and back-connect design
- GPU up to 435 mm and CPU-cooler up to 172 mm high
Technical specifications
- max. CPU-cooler height 172 mm
- max. Graphics card length 435 mm
- max. Power supply length / depth 160 mm
- Fan slots (base): 120mm fan (3x)
- Fan slots (front side): 120mm fan (2x), 140mm fan (2x)
- Fan slots (rear): 120mm fan (1x)
- Fan slots (cover): 120mm fan (3x)
- max. Number of fans: 9
- max. Radiator compatibility 1x Triple (360 mm)
- Radiator-/AiO-Support (lid): 240mm-Radiator, 360mm-Radiator
- Product type
PC casing
- Case type
Microtower
- Factory colour
White
- Interfaces (front)
Audio line in
Audio line out
USB type A
USB C®
- 6.4 cm (2.5") internal slots
2
- 8.9 cm (3.5") internal slots
2
- Width
238.2 mm
- Height
368.4 mm
- Depth
455 mm
- Weight
6700 g
- Form factor
Micro-ATX
Mini-ITX
- No. of USB type A 3.0 ports
2 x
- No. of USB 3.0 ports
1 x
- Wireless charging
No
- Dim
(W x H x D) 238.2 x 368.4 x 455 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3788479 Jonsbo D33 STD Microtower PC casing White
Description
The Jonsbo D33 STD gives you a mini-housing that can be integrated into any setup.
· White mATX tower
· Numerous fans and radiator locations for an effective cooling power
· Motherboards to mATX and back-connect design support
· Space for graphics cards up to 435 mm and CPU-cooler with a height of up to 172 mm
Jonsbo D33 STD: Space-saving PC housing
The Jonsbo D33 STD offers enough space for high-performance gaming hardware despite its compact size. Ideal for living room setups
Extensive cooling options with fans and radiators
In order to cool your hardware at every load, up to nine fans can be fitted simultaneously in the Jonsbo D33 STD. Thereby, the casing offers space on the lid and on the floor for three 120-fans, at the front two 120 or 140 mm large fans and at the rear side a 120-series. Note that only two 140 mm fans can be installed on the front if you are installing an SFX power supply.
AiO water cooling is also easy to install, if you want to cool your high performance hardware with water cooling. For a 360 mm water cooling there is place at the cover.
Install your hardware
The housing offers enough space for high-performance gaming hardware. It supports the installation of long graphic cards up to 435 mm. The CPU cooler should not exceed a height of 172 mm.
This text is machine translated.
· White mATX tower
· Numerous fans and radiator locations for an effective cooling power
· Motherboards to mATX and back-connect design support
· Space for graphics cards up to 435 mm and CPU-cooler with a height of up to 172 mm
Jonsbo D33 STD: Space-saving PC housing
The Jonsbo D33 STD offers enough space for high-performance gaming hardware despite its compact size. Ideal for living room setups
Extensive cooling options with fans and radiators
In order to cool your hardware at every load, up to nine fans can be fitted simultaneously in the Jonsbo D33 STD. Thereby, the casing offers space on the lid and on the floor for three 120-fans, at the front two 120 or 140 mm large fans and at the rear side a 120-series. Note that only two 140 mm fans can be installed on the front if you are installing an SFX power supply.
AiO water cooling is also easy to install, if you want to cool your high performance hardware with water cooling. For a 360 mm water cooling there is place at the cover.
Install your hardware
The housing offers enough space for high-performance gaming hardware. It supports the installation of long graphic cards up to 435 mm. The CPU cooler should not exceed a height of 172 mm.
This text is machine translated.
