1/3
Jonsbo TK-3 Midi tower PC casing White
EAN:
Part number:
Item no:
Highlights & Details

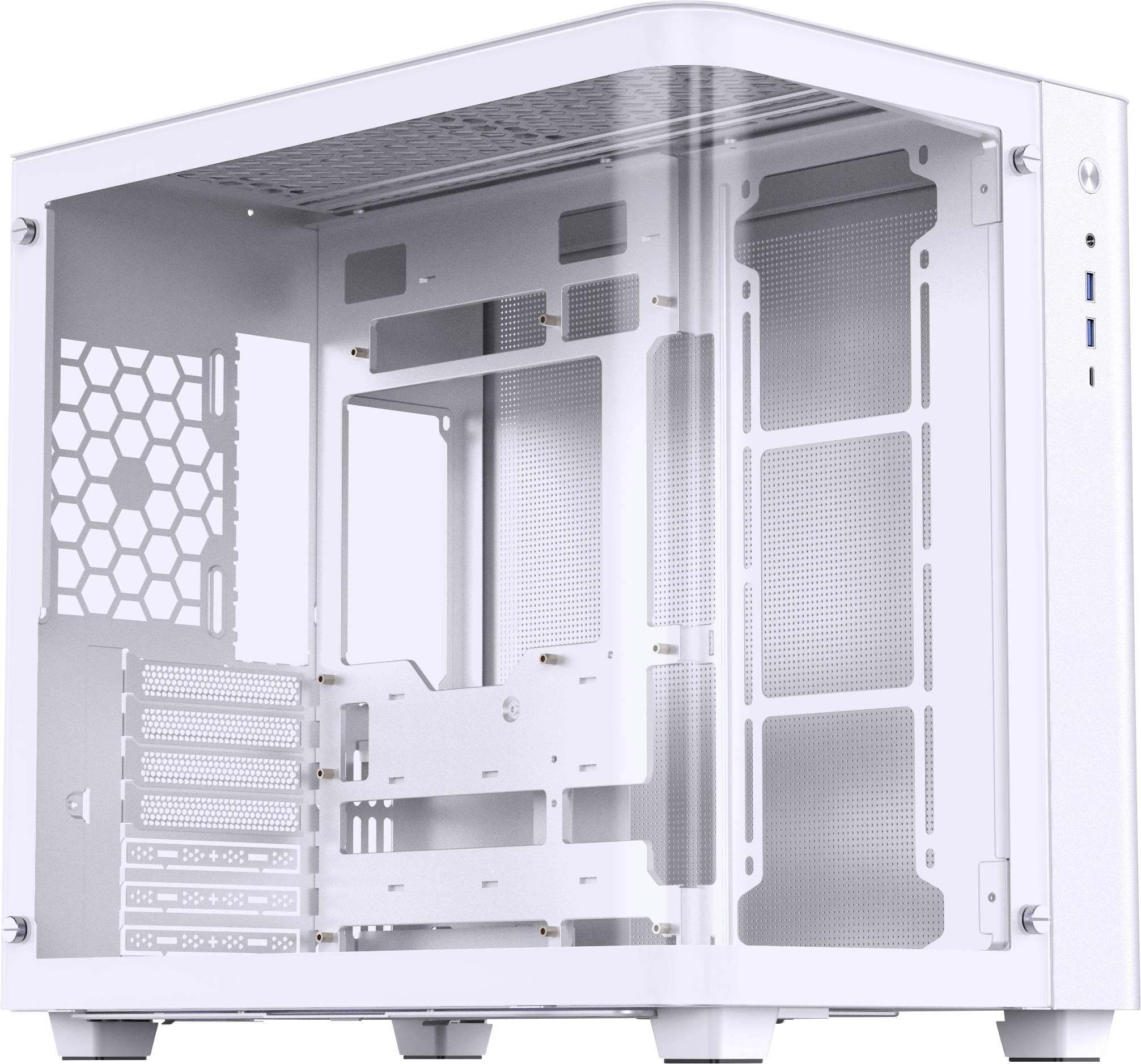

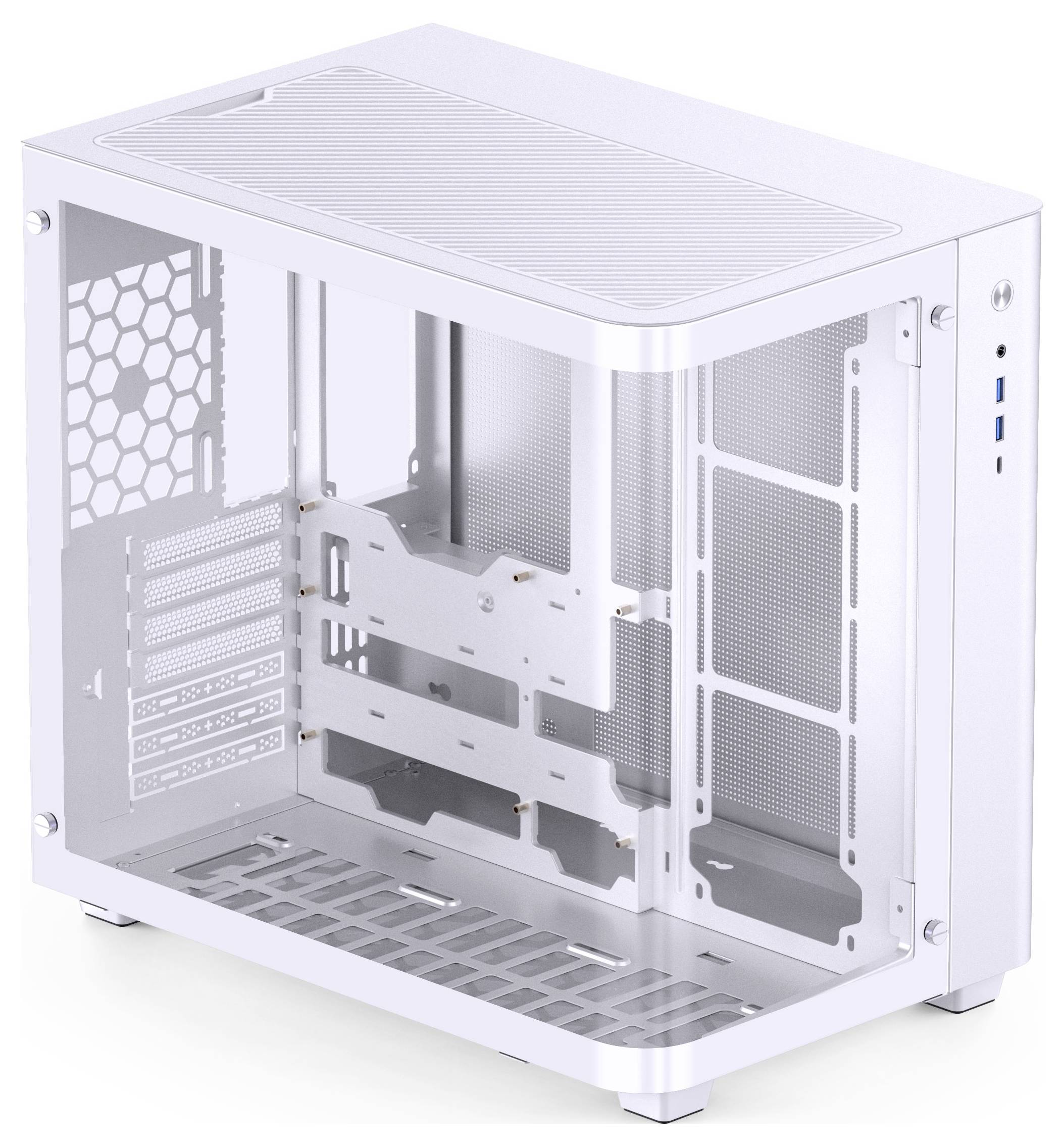

Jonsbo TK-3 Midi tower PC casing
- Trick midi tower with a two-chamber design
- 270° panoramic view thanks to curved hard glass
- Compatible with back-connect mainboards, Asus BTF / MSI project zero
- Space for up to 10 housing fans
- Suitable for GPUs up to 420 mm in length
- Supports CPU coolers up to 165 mm high
- Up to two 360 mm radiators possible
- 1x USB-C and 2x USB-A at the front panel
Technical specifications
- Back Connect: Yes (Asus BTF, MSI project zero)
- Total possible fans:
- Cover 3x 120 / 2x 140 mm
- Base: 3x 120 mm
- Side: 3x 120 mm
- Rear side 1x 120 mm
- Radiators possible:
- Cover 1x 360/280 mm
- Base: 1x 360 mm
- Drive bays:
- 1 x 3.5 inches
- 1x 3.5 inches/2.5 inches
- 1 x 2.5 inches
- Power supply: 1x ATX (optional)
- Extension slots 7
- I/O-panel:
- 1x USB-C 3.1 (3.2 Gen 2, 10 Gbit/s)
- 2x USB-A 3.0 (3.2 Gen 1, 5 Gbit/s)
- 1x 3.5-mm jack (4-pin, TRRS, audio in / out)
- Maximum graphics card length 420 mm
- Maximum CPU-cooler height 165 mm
- Maximum power supply length 220 mm
- Product type
PC casing
- Case type
Midi tower
- Factory colour
White
- Interfaces (front)
Audio line in
Audio line out
- 6.4 cm (2.5") internal slots
2
- 8.9 cm (3.5") internal slots
2
- Width
288 mm
- Height
415 mm
- Depth
438 mm
- Weight
7300 g
- No. of USB type A 3.0 ports
2 x
- No. of USB 3.0 ports
1 x
- Wireless charging
No
- Dim
(W x H x D) 288 x 415 x 438 mm
- Keyboard layout
German, QWERTZ
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339220 Jonsbo TK-3 Midi tower PC casing White
Description
Jonsbo TK-3: Black midi tower with panoramic views
The Jonsbo TK-3 sets your gaming hardware in scene. Even at first glance it can be seen that not only the side of the tower is made of glass, but also a large part of the front. The curved Tempered Glass gives you a 270° panoramic view of the interior of your PC, so you can showcase your hardware.
Plenty of space for powerful PC components
So there is something to see, this PC housing supports the installation of graphic cards up to a length of 420 mm. Thus you have a free choice, because it fits every conceivable model in the casing. Suitable for this the Jonsbo TK-3 offers space for an up to 220 mm long ATX power supply, so that the Jonsbo TK-3 offers the necessary space for powerful power supplies. The mainboard tray can fit from Mini-ITX to ATX. The Jonsbo TK-3 offers a total of 7 PCI slots for expansion cards.
This enclosure supports Back Connect in the Asus BTF and MSI Project Zero variants.

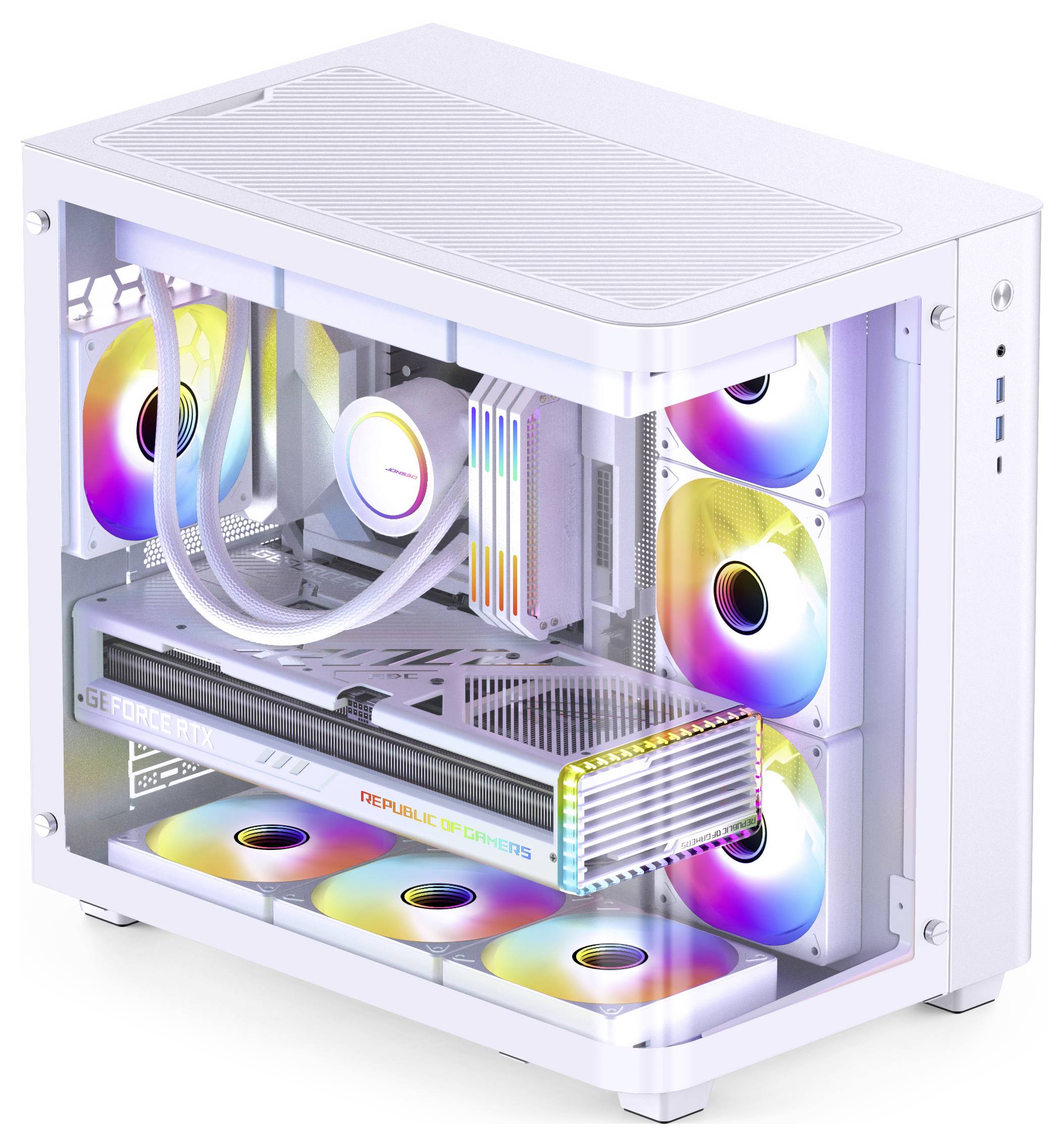

PC cooling: Space for fans, CPU coolers and radiators
High-performance PC-parts need excellent cooling and the Jonsbo TR-3 offers the corresponding possibilities of installing them. Altogether ten 120-mm fans can be accommodated in this Midi-Tower and provide for an excellent air circulation. For large CPU-coolers up to 165 mm height there is also place. Up to 360 mm large radiator can be attached at the cover and the bottom.
Drives: Options for hard drives and SSDs
In the second chamber a total of three SATA hard disks and SSDs can be installed. A 3.5-inch HDD, a 3.5-inch or 2.5-inch drive in the hard drive cage, and a 2.5-inch SSD at the bottom of the chassis.
At the front of the chassis are a fast USB-C connector, two USB A connectors and a combined 3.5 mm jack socket for your gaming headset.
This text is machine translated.
Features
- Smart midi tower in black
- Panoramic view thanks to curved glass panel
- Up to ten fans possible
- For graphics cards up to 420 mm
