Name: Jonsbo XA-120 PC fan Black (W x H x D) 120 x 28 x 120 mm
Brand: Jonsbo
SKU: 3776397

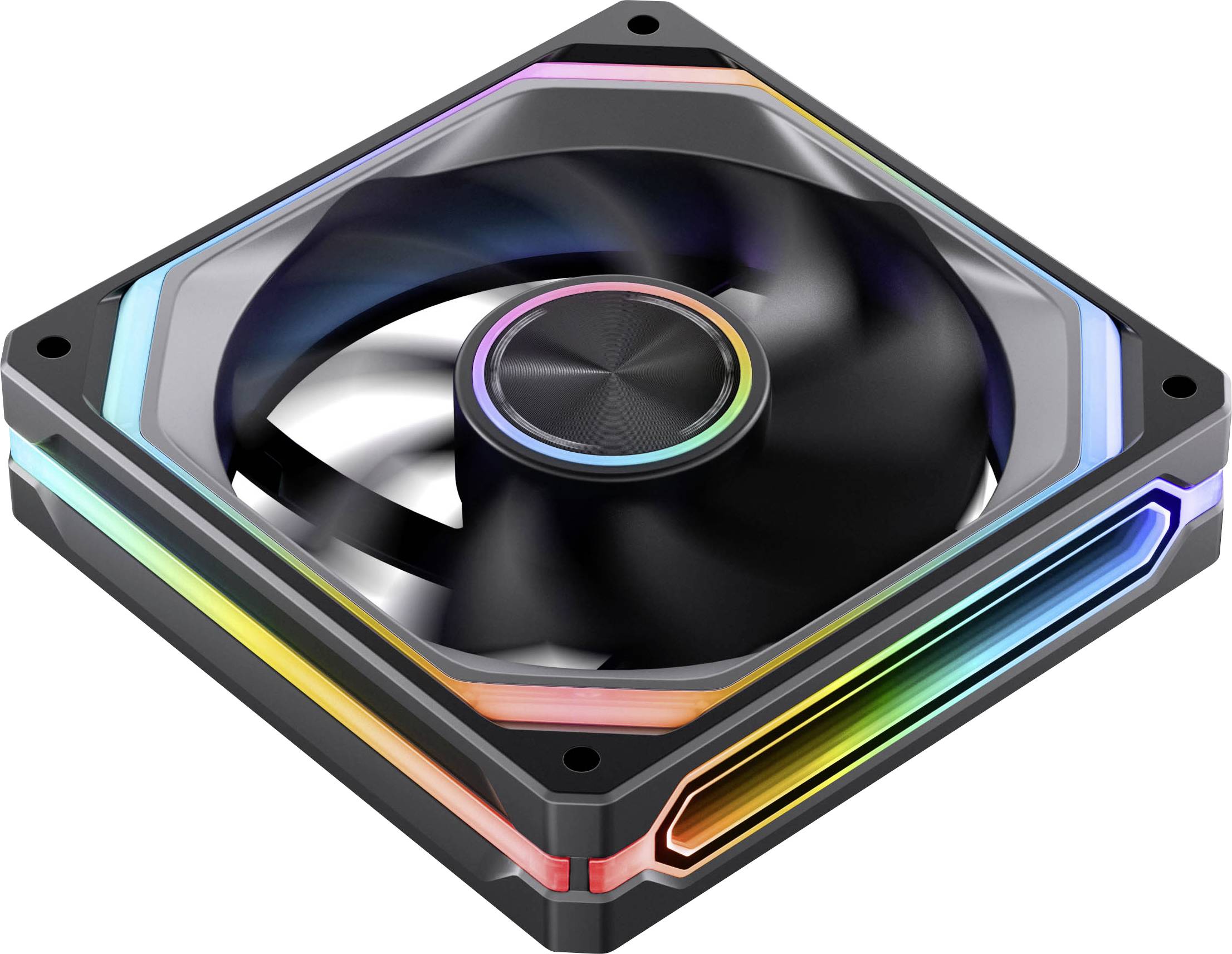

Square RGB computer cooling fan with black blades and glowing rainbow light strip around the frame on a white background.

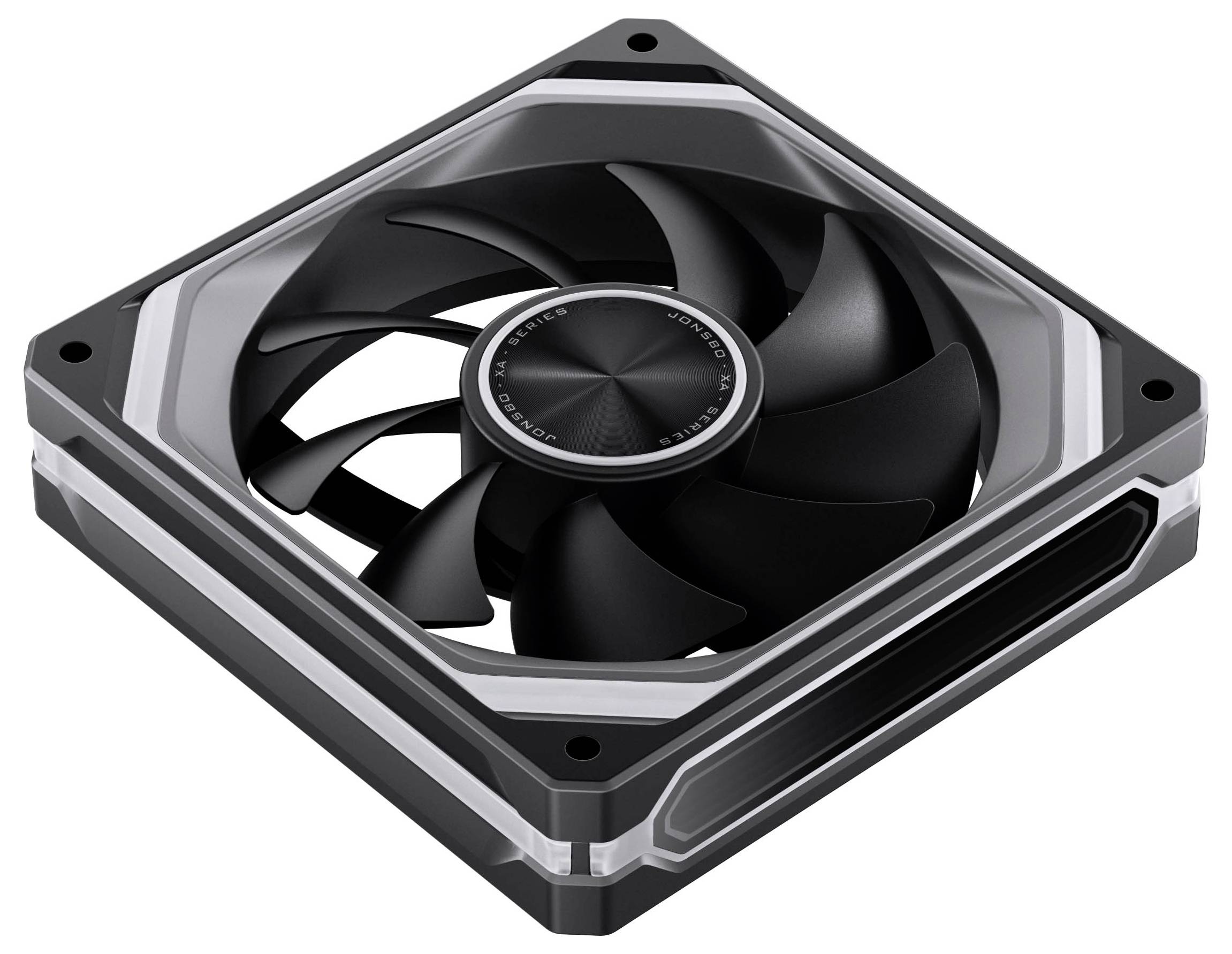

Black square computer cooling fan on a white background, shown at an angle.

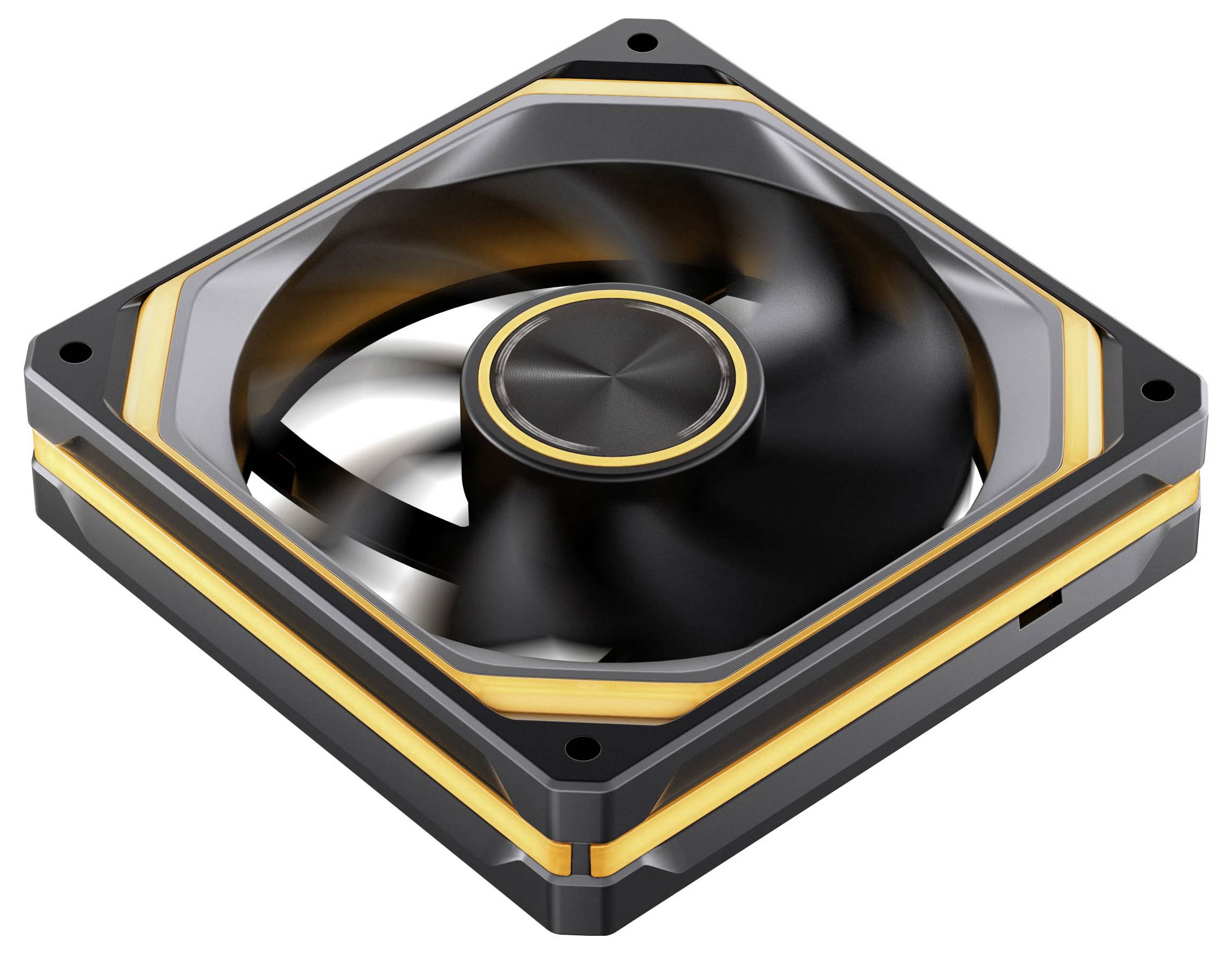

Black square cooling fan with orange trim, shown from above on a white background.

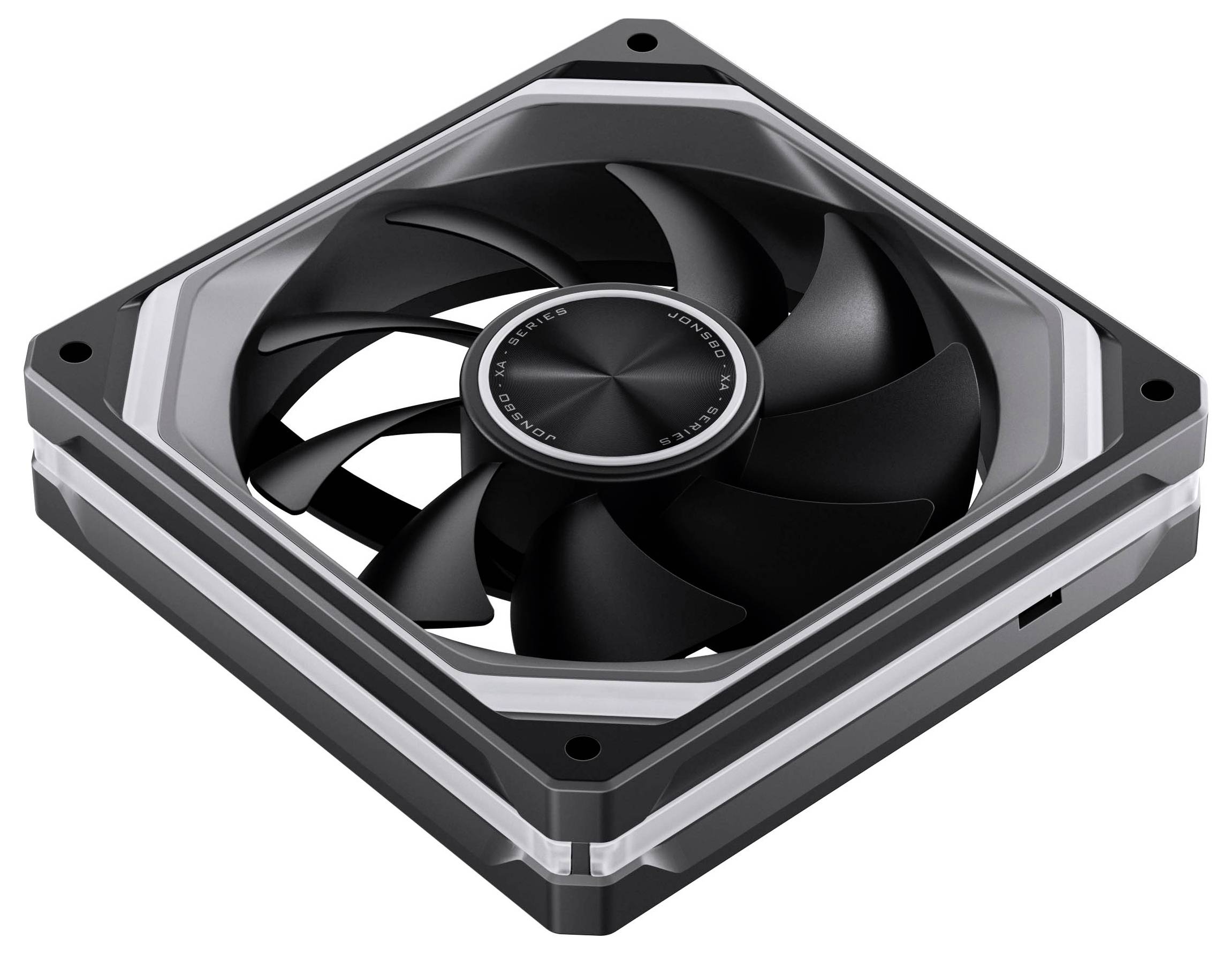

Black square computer cooling fan with seven blades and a clear frame, shown on a white background.

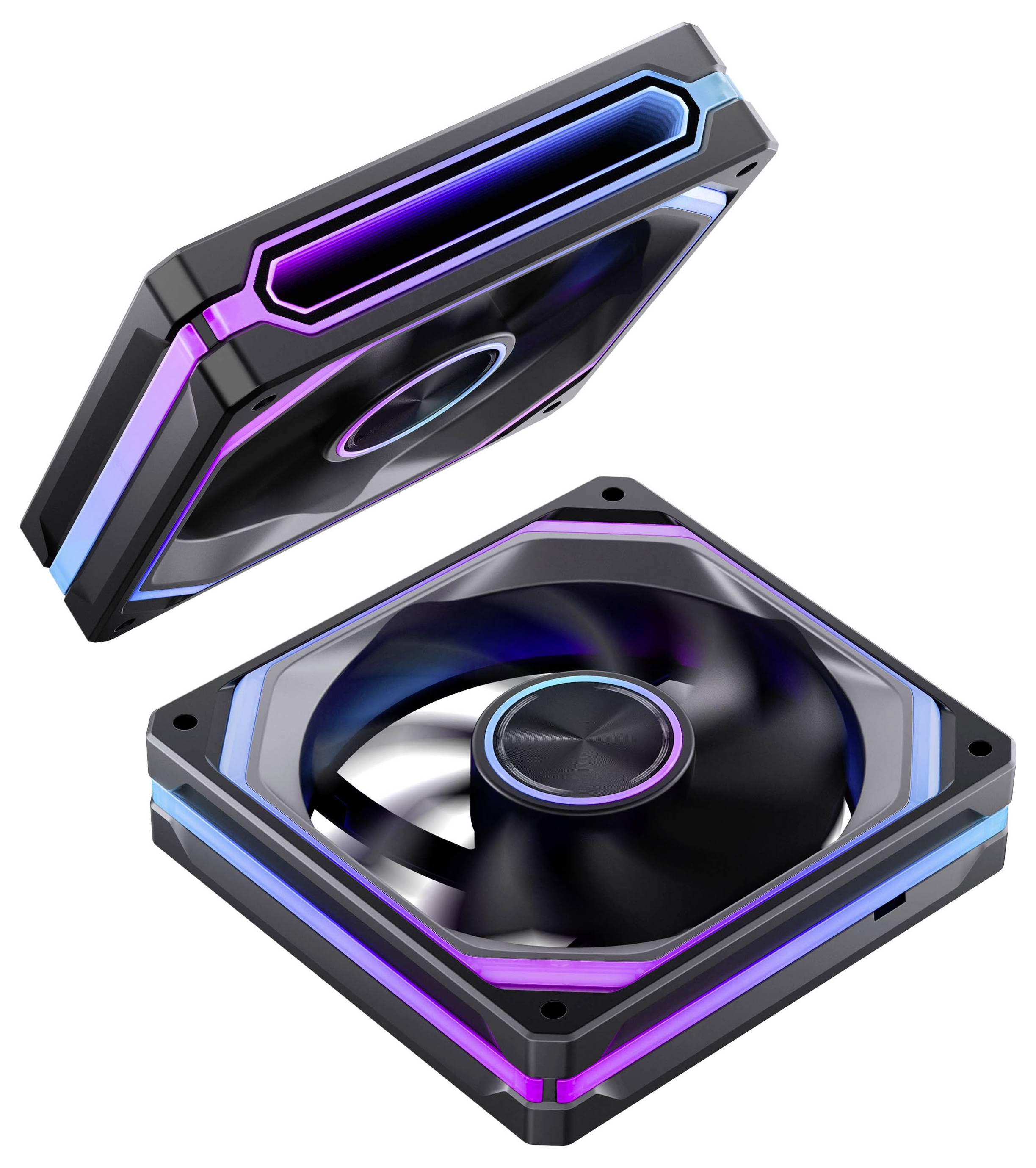

Two RGB-lit PC cooling fans shown at angles, with black square frames and glowing blue and purple edges on a white background.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Jonsbo XA-120 PC fan

Jonsbo XA-120 fan, PWM, ARGB - 120mm, black

Technical specifications

Nominal voltage: 12 V
1x digital RGB (3-pin 5VDG)

Product type: PC fan

Fan size: 120 mm

Noise emission (max.): 37.3 dBa

Noise emission: 30.1 dBa - 40 dBa

Rotational speed (min.): 700 U/min

Air discharge: 106.03 m³/h

Rotational speed (max.): 2400 U/min

Type of bearing: Hydraulic bearing

Connection: 4-pin PWM

Factory colour: Black

Weight: 300 g

Width: 120 mm

Height: 28 mm

Depth: 120 m

Dim: (W x H x D) 120 x 28 x 120 mm

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3776397 Jonsbo XA-120 PC fan Black (W x H x D) 120 x 28 x 120 mm

Description

PWM-control from 700 to 2,400 rpm adjusts the speed flexibly
Up to 106.03 m³/h air flow efficiently transports warm air out of the housing
Static pressure up to 2.46 mmHVision O is suitable for tight mesh areas or radiators
3-pin 5 V ARGB connector integrates the fan into compatible motherboard lighting
Noise level from 21.3 to 37.3 dB(A) for pleasant operation

This text is machine translated.

Features

The Jonsbo XA-120 is a 120 mm fan for gaming PCs and powerful systems that are designed to combine targeted airflow with addressable lighting. It is suitable for users who wish to regulate their cooling cleanly and upgrade the setup visually.
Strong airflow for efficient cooling
Depending on the speed, the XA-120W moves up to 106.03 m³/h of air, thus supporting a constant removal of heat. This is particularly useful in gaming systems, in which graphics card and processor use high heat under load. The fan helps you to control the temperatures in the casing better.
Targeted performance even in narrow air travel
With static pressure of up to 2.46 mmH2O the fan remains effective, also at those places where air needs to be pushed through mesh, dust filter or radiators. This makes it not only suitable as a classic case fan, but also for more demanding cooling positions. You get more flexibility in setting up your system without compromising on air performance.
Clean control and ARGB look
The 4-pin PWM-connection enables you to precisely control the speed and adapt the cooling to your system profile. The separate 3-pin ARGB connection enables synchronized lighting with compatible mainboards and controllers. Thus, the XA-120W combines functional cooling with a clean, chic look.

Hints

Please pay attention to the compatibility information of the manufacturer. You can find an up-to-date overview on the manufacturer's website.
