Name: Jonsbo XA-360 Reverse Blade PC fan Black (W x H x D) 123 x 28 x 362 mm
Brand: Jonsbo
SKU: 3776400

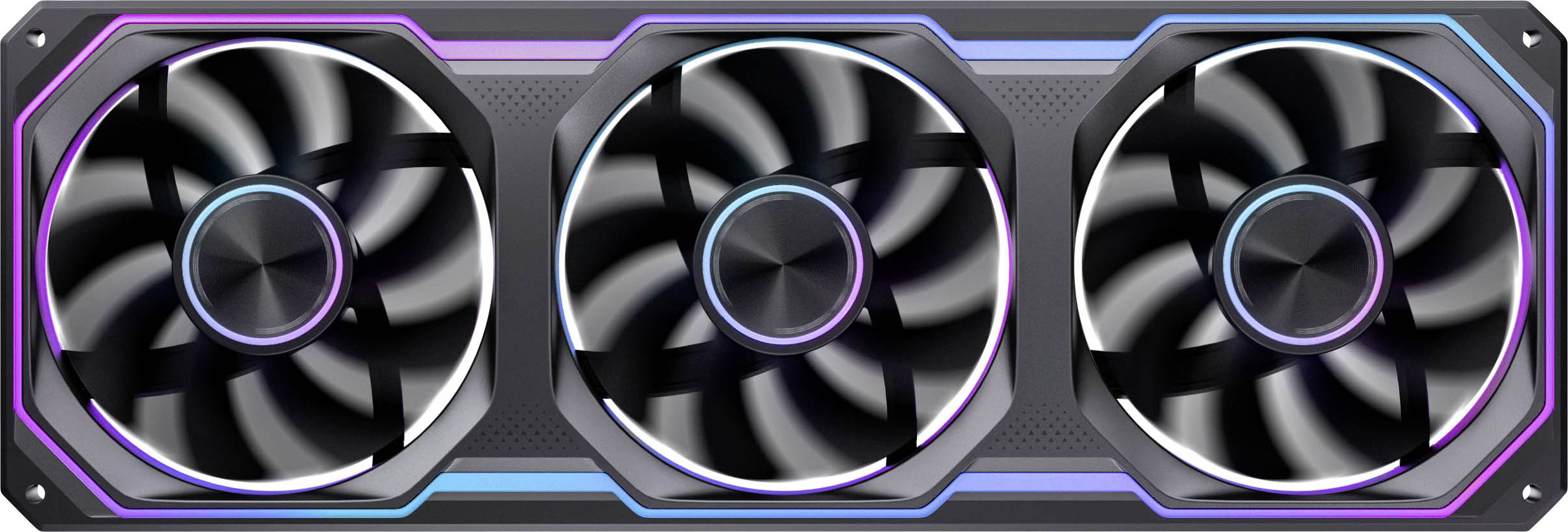

A triple-fan graphics card with three large cooling fans and purple-blue LED trim on a black shroud.

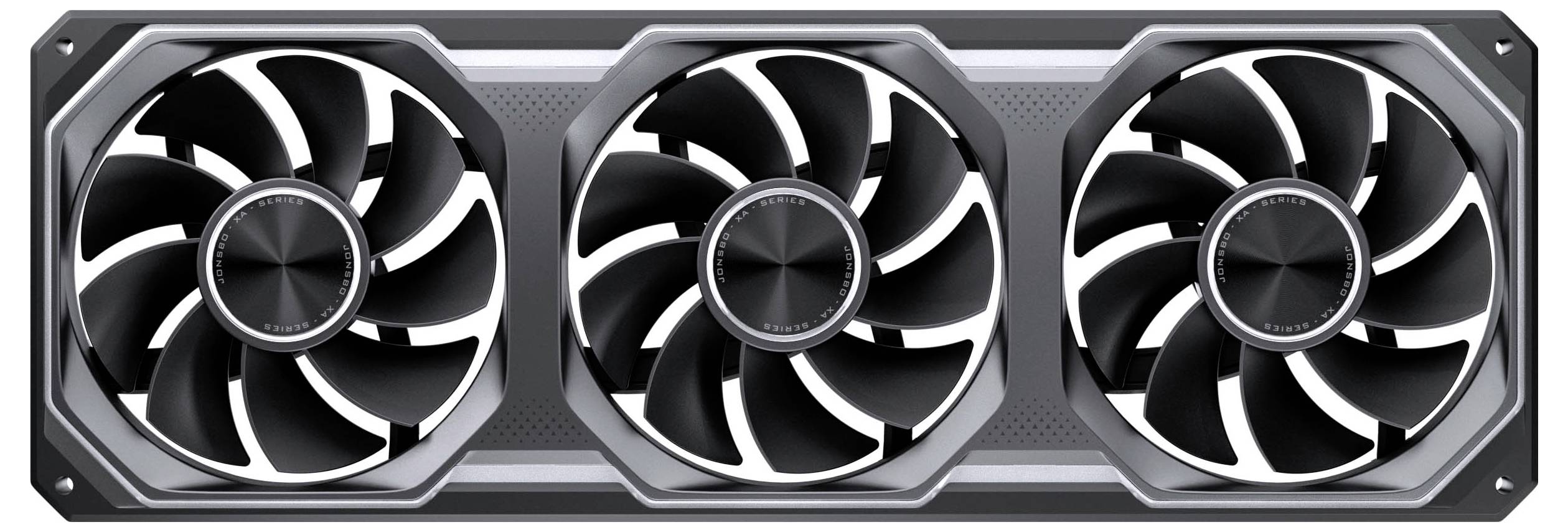

Triple-fan graphics card cooling system shown front-on, with three large black fans in a silver and black shroud.

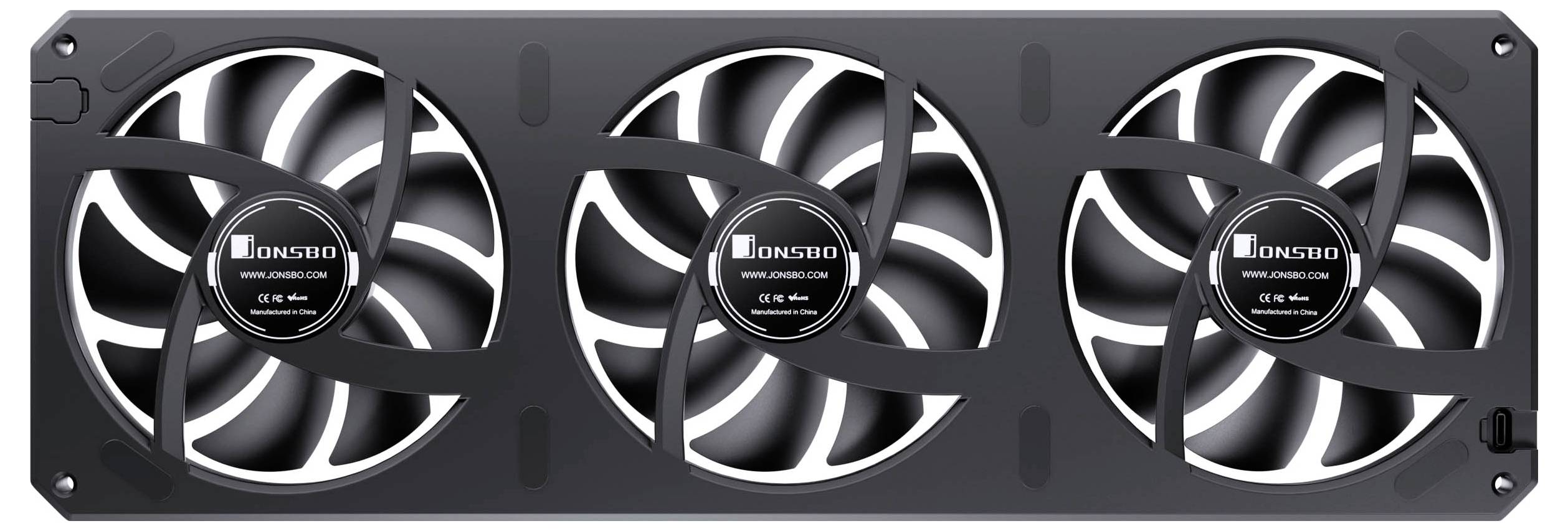

Three-fan computer cooling unit with black frame and white blades, labeled 'ONSBO' on each fan hub.

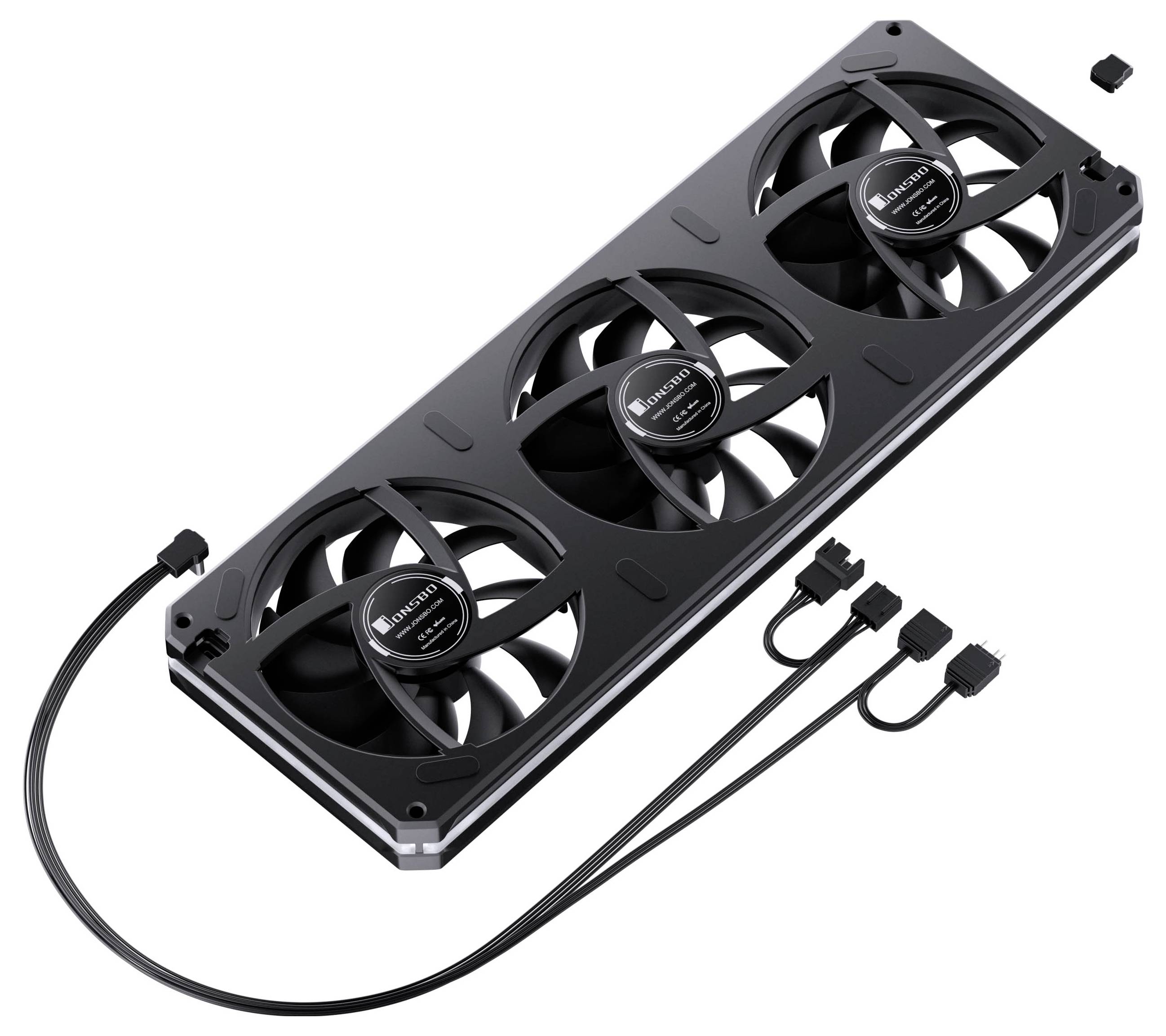

Black triple-fan computer cooling radiator with attached power cables and connectors, shown on a white background.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Jonsbo XA-360 Reverse Blade PC fan

Jonsbo XA-360 fan, reverse Blade, PWM, ARGB - 360mm, black

Technical specifications

Nominal voltage: 12 V
1x digital RGB (3-pin 5VDG)

Product type: PC fan

Fan size: 360 mm

Noise emission (max.): 31.6 dBa

Noise emission: 30.1 dBa - 40 dBa

Rotational speed (min.): 700 U/min

Air discharge: 75.74 m³/h

Rotational speed (max.): 1800 U/min

Type of bearing: Hydraulic bearing

Connection: 4-pin PWM

Factory colour: Black

Weight: 540 g

Width: 123 mm

Height: 28 mm

Depth: 362 mm

Dim: (W x H x D) 123 x 28 x 362 mm

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3776400 Jonsbo XA-360 Reverse Blade PC fan Black (W x H x D) 123 x 28 x 362 mm

Description

PWM-control from 700 to 1,800 rpm adjusts the power to temperature and load
Up to 75.74 m³/h air flow for fast dissipation of heat
Static pressure up to 1.71 mmH2O for directed airflow in demanding setups
Reverse Blade design for a clean finish with visible fan assembly
3-pin 5 V ARGB connection integrates the illumination cleanly into compatible mainboards

This text is machine translated.

Features

The Jonsbo XA-360 is a 360-mm single frame fan in reverse Blade design for PC systems that need to combine strong cooling and a smart ARGB look. It is suitable for users who want to use large cooling surfaces efficiently and thereby want to scene the visible fan page in the build. With 700 to 1,800 rpm, up to 75.74 m³/h air flow and up to 1.71 mmH2O static pressure it offers solid reserves for high-performance systems.
Reverse Blade design for clean show builds
The XA-360 has a reverse Blade design and is thus especially suitable for visible installation positions. This means the more appealing fan side remains in the focus, without having to do without a coherent airflow alignment. This is particularly practical for housing with glass window and neatly planned showcase setups.
Adjustable power for load and everyday life
The PWM-control gives you more control over volume and cooling power. At low loads, the system can operate more smoothly, under load up to 1,800 rpm are available for more air movement. Thus, the fan adapts better to different usage scenarios.
ARGB-optics with clear linking
In addition to the cooling power, the XA-360 also has addressable lighting for aesthetic builds. The ARGB connection allows you to integrate the effects into your existing setup to suit your needs. Thus you combine functional cooling with a tidy, tuned optics.

Hints

Please pay attention to the compatibility information of the manufacturer. You can find an up-to-date overview on the manufacturer's website.
