Joy-it ADS1115 Converter unit
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Highlights & Details
Analogueue-Digital Converter, I2C, 16 Bit ADS1115
- Compatible with all Raspberry PiInterface bus: I2CAnalogue digital converter for the use of analogueue componentsConnection via GPIO of the Pi
Technical specifications
- Special feature: Use analogue peri-pherie with the Raspberry Pi
- Model: ADS1115
- Function: Analogueue Digital Converter
- Interface bus: I2C
- Analogueue input voltage 3.3 V
- Analogueue supply current: 10 mA continuous 100 mA peaks
- 16 bit trigger
- Used I2C address: 0x48 (default) 0x49~0x4B configurable
- program Data rate: 8SPS - 860 SPS
- Operating temperature -30 °C - 80 °C
- Product type
Converter unit
- Suitable for
Raspberry Pi® 2 B
- Height
18 mm
- Length
30 mm
- Width
65 mm
- Suitable for
Raspberry Pi®
- Interfaces
I²C
- Tool type
Converter
- Compatible with
Raspberry Pi
Documents & Downloads
Datasheet
Datasheet 2436024 Joy-it ADS1115 Converter unit
User & Safety Instructions
User & Safety Instructions 2436024 Joy-it ADS1115 Converter unit
Description

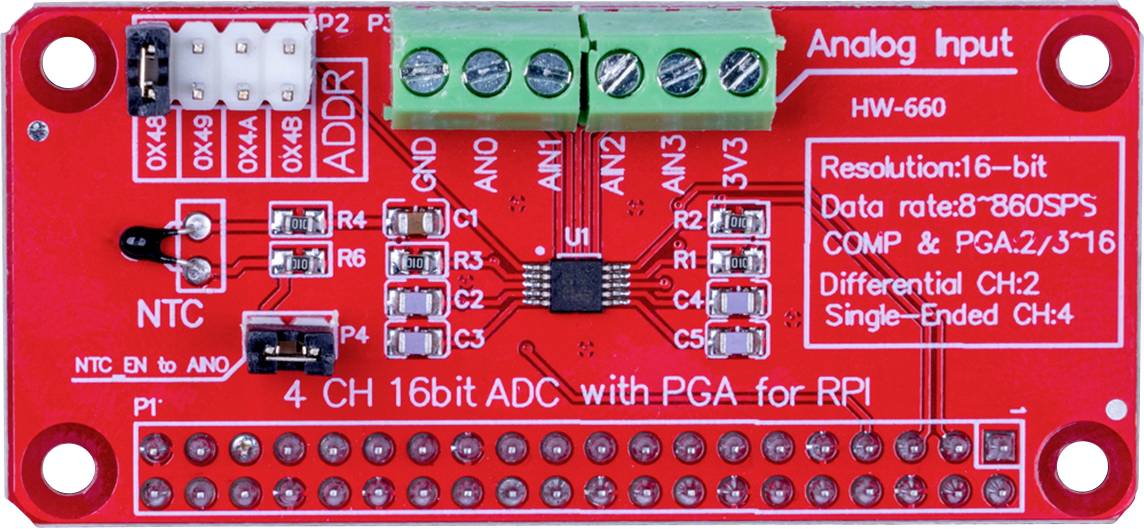

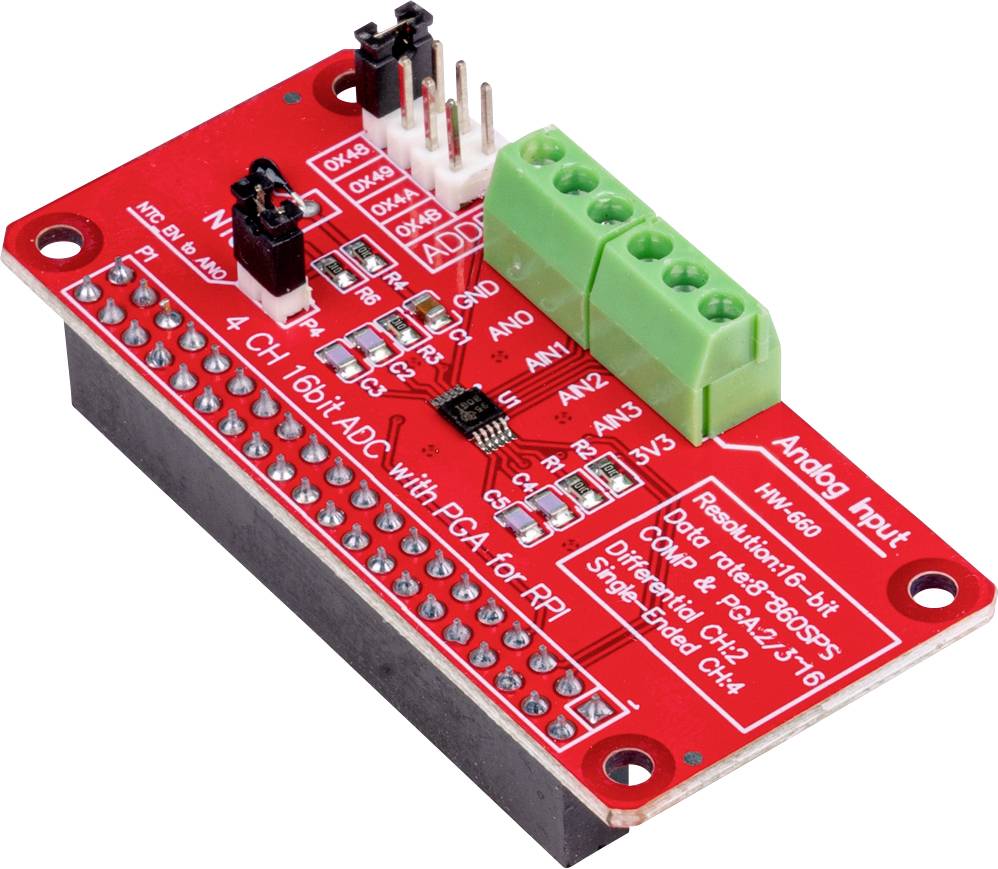

With the help of the RB-ADC01, you can read analogue data with your Raspberry Pi.
The 16-bit chip ADS1115 is an analogueue digital converter that can convert the data and transfer it to the Raspberry Pi via I2C bus.
The ADC module can be simply attached to the GPIO pin strip. This allows analogue sensors and other accessories to be used.
This text is machine translated.
The 16-bit chip ADS1115 is an analogueue digital converter that can convert the data and transfer it to the Raspberry Pi via I2C bus.
The ADC module can be simply attached to the GPIO pin strip. This allows analogue sensors and other accessories to be used.
This text is machine translated.
Scope of delivery
- Module
