Joy-it BO-ESP PCB design board BO-ESP

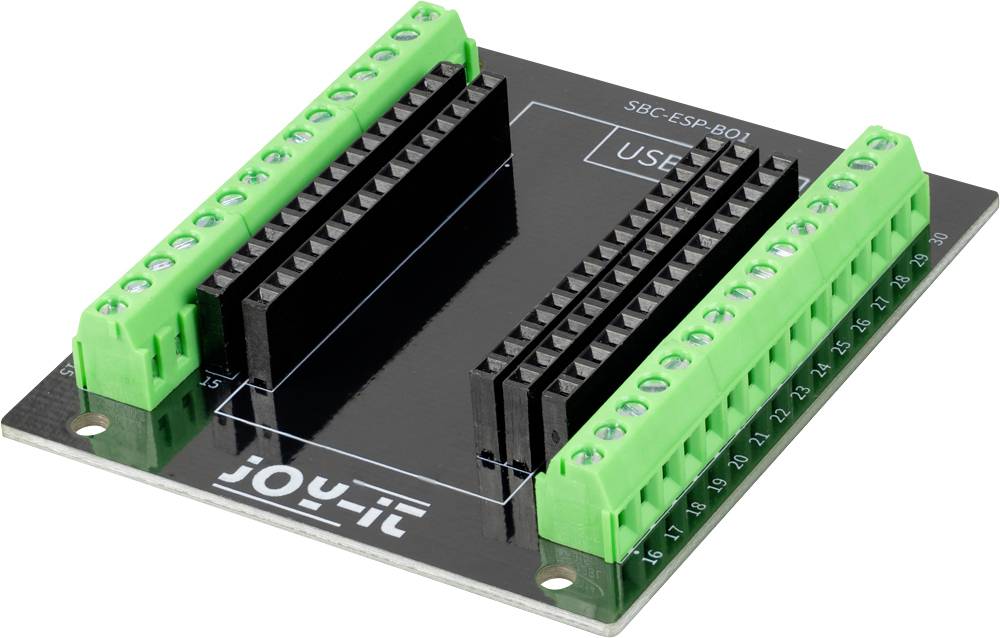

The SBC‑ESP‑BO1 is a versatile breakout board that significantly simplifies the connection, expansion and replacement of ESP development boards. It supports pin spacing of 22.86 mm and 25.4 mm and is therefore compatible with NodeMCU and ESP32 boards. The development board is simply plugged into the integrated socket connector and can be quickly removed or replaced at any time – Ideal for dynamic test and development environments.

Maximum wiring flexibility
Each pin of the inserted board is guided to two additional connection points:

A socket strip for jumper cables and plug-in connectors

A screw terminal for stable, firmly laid cables

The sensors, displays, relays, actuators and other components can be connected securely and without soldering. At the same time, all pins remain fully accessible via the socket strips – perfect for measurements, expansions or parallel connections.

Clear structure for efficient development

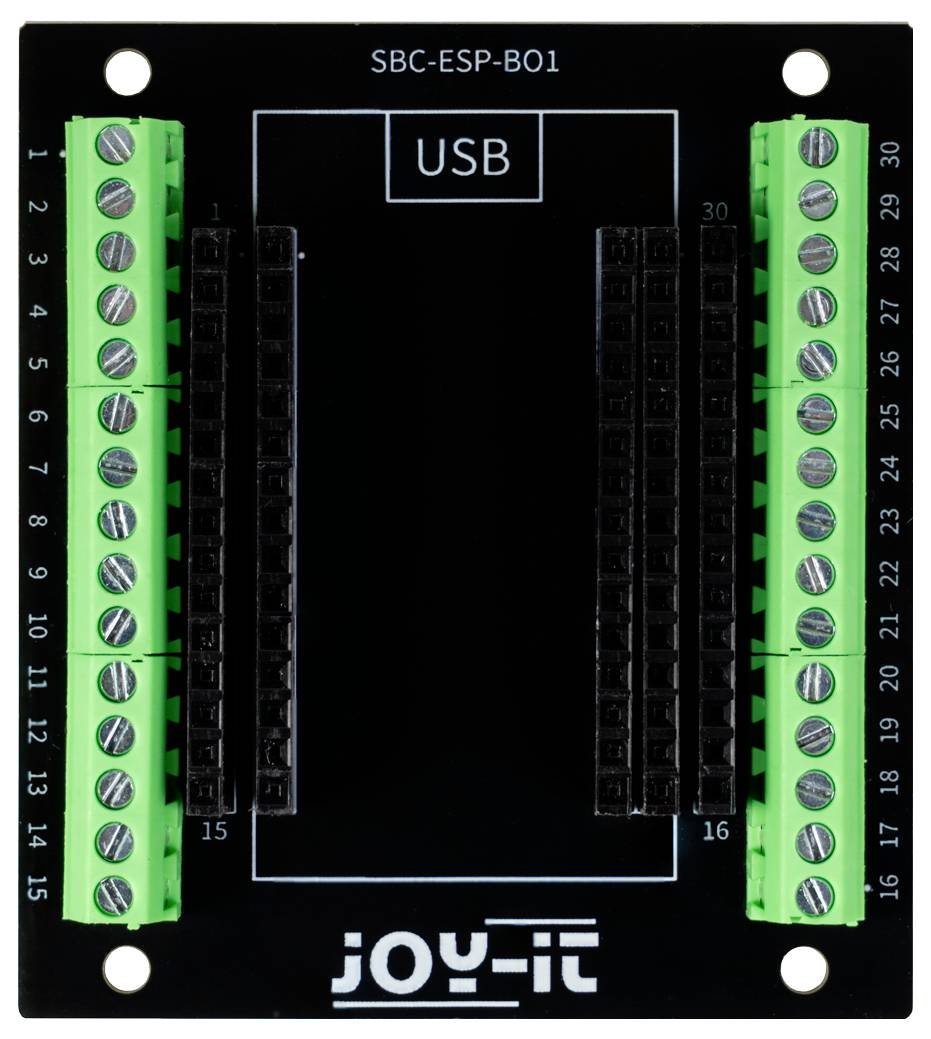

The consecutively numbered connections make it easy to identify the pins and create order, even with complex circuits. Changes to test setups can be made quickly without having to re-establish the entire wiring. This saves time and reduces sources of error in development and laboratory environments.

Ideal for prototyping, education and fixed installations
Thanks to the robust screw terminals, the SBC‑ESP‑BO1 is suitable not only for flexible prototypes, but also for permanent installations. Schools, universities and development departments benefit from a clearly structured, secure and long-term connection solution.

Versatile interface for ESP hardware
With the support of two pin spacing strips and the combination of socket strips and screw terminals, the SBC-ESP-BO1 provides a reliable interface between ESP development boards and external hardware – Ideal for professional IoT, Electronic and Embedded projects.

This text is machine translated.
