Joy-it Breadboard Set Breadboard developing kit Total number of pins 830 (L x W x H) 21 x 22.5 x 7 cm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Breadboard developing kit
Total number of pins
830
Dim
(L x W x H) 21 x 22.5 x 7 cm
Length
21 cm
Width
22.5 cm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.96
3
5% = € 0.79
€ 15.17
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Breadboard developing kit inclusive of universal power supply module
- Compatible with all common controllers (e.g. Arduino, ESP and Raspberry)
- Power module for external power supply to the superstructures ( Wide Range 5 to 12 V )
- Mounting plate and screws for fixing the breadboard and controller
- Alligator clip (10x) and jumper cable (20x 25cm + 20x 50cm + 40 pin adapter)
Technical specifications
- Breadboard:
- Breadboard
- 830 pin (200 pin for power supply)
- Dimensions
- 165 x 55 mm
- Pitch distance
- 2.54 mm
- Power supply board:
- Operating voltage
- Max. 700 mA
- Input 1
- Hollow plug 5.5 / 2.1 mm, DC IN 6 – 12V
- Input 2
- USB 5 V
- Input 3
- Micro USB 5V
- Output
- 3.3V; 5V; earth; USB (see o)
- Dimensions
- Approx. 70 x 15 x 30 mm
- Mounting bracket:
- Materials
- Acrylic
- Dimensions
- 20 x 20 cm
- Connection Cable:
- Alligator clips
- 10 pieces , 50 cm
- Jumper cable (socket)
- 20 pieces , 25 cm , 40 pins (20x connection A, 20x connection B)
- Jumper cable (socket)
- 20 pieces , 50 cm , 40 pins (20x connection A, 20x connection B)
- Storage case:
- Colour
- Black
- Materials
- Plastic
- Product type
Breadboard developing kit
- Total number of pins
830
- Dim
(L x W x H) 21 x 22.5 x 7 cm
- Length
21 cm
- Width
22.5 cm
- Height
7 cm
- Content
1 pc(s)
- Type
Breadboard Set
Documents & Downloads
Datasheet
Datasheet 3344406 Joy-it Breadboard Set Breadboard developing kit Total number of pins 830 (L x W x H) 21 x 22.5 x 7 cm 1 pc(s)
Datasheet 3344406 Joy-it Breadboard Set Breadboard developing kit Total number of pins 830 (L x W x H) 21 x 22.5 x 7 cm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3344406 Joy-it Breadboard Set Breadboard developing kit Total number of pins 830 (L x W x H) 21 x 22.5 x 7 cm 1 pc(s)
Description
Breadboard toolkit including power module (3.3 + 5V)
The breadboard toolkit is the ideal starting point to use the microcontroller of your choice
Test set-ups and electronic experiments.
The mounting bracket supplied has several drilled holes for the installation
To mount most common controllers such as Raspberry Pi, Arduino, BBC Micro:bit and much more securely (screws are included in the set).
In addition to a 830-PIN (200 for power supply ) breadboard and various jumper cables (including pins to configure the cables "male" as required), a power module is also included.
This module allows easy voltage supply of your own experiments or test lab on Breadboards. The board is simply plugged in and supplied, then the breadboard with 3.3 and 5 V, the voltage can be adjusted separately for each side.
In addition, 3.3 as well as 5 V and ground on pins are also available for acceptance. The maximum output current is 700 mA.
The board can be powered via most of the mobile phone chargers thanks to the micro USB port, IN addition, a standard USB and a DC IN input are also available. If the DC IN is used as an input source, the USB ports can also be used to supply current. You can use the switch to select between the input source USB or DC IN.
This text is machine translated.
The breadboard toolkit is the ideal starting point to use the microcontroller of your choice
Test set-ups and electronic experiments.
The mounting bracket supplied has several drilled holes for the installation
To mount most common controllers such as Raspberry Pi, Arduino, BBC Micro:bit and much more securely (screws are included in the set).
In addition to a 830-PIN (200 for power supply ) breadboard and various jumper cables (including pins to configure the cables "male" as required), a power module is also included.
This module allows easy voltage supply of your own experiments or test lab on Breadboards. The board is simply plugged in and supplied, then the breadboard with 3.3 and 5 V, the voltage can be adjusted separately for each side.
In addition, 3.3 as well as 5 V and ground on pins are also available for acceptance. The maximum output current is 700 mA.
The board can be powered via most of the mobile phone chargers thanks to the micro USB port, IN addition, a standard USB and a DC IN input are also available. If the DC IN is used as an input source, the USB ports can also be used to supply current. You can use the switch to select between the input source USB or DC IN.
This text is machine translated.

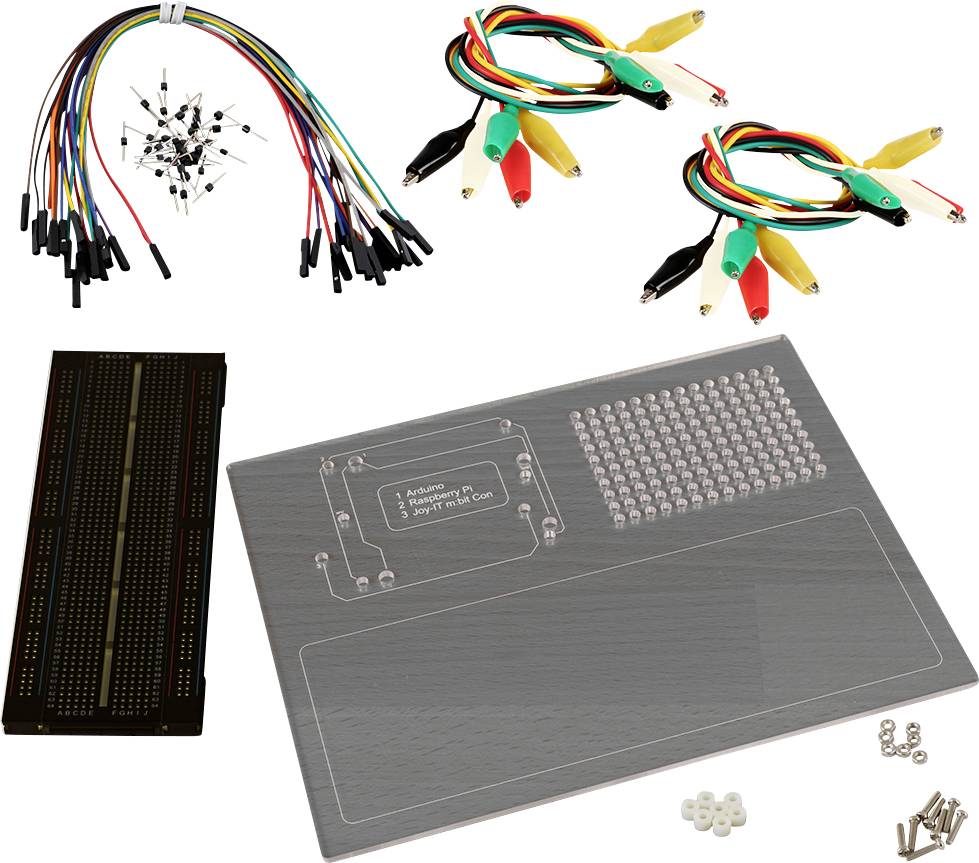

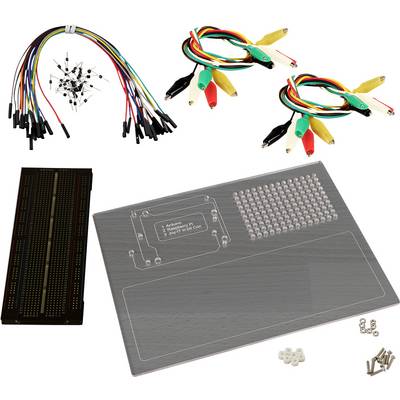

Scope of delivery
- Case, breadboard, cable (50x), power module, mounting plate, Screws
