Joy-it Button12E-01 Button12E-01 Tamper-proof pushbutton latch Green (Ø x H) 12 mm x 26.5 mm IK10, IP67 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Tamper-proof pushbutton
Lighting type
LED
Contact type
2 makers
Connection
Socket
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.46
3
6% = € 0.49
€ 7.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.46 / piece)
€ 8.46
plus VAT.
14-day return policy included
Highlights & Details
Steel button with micro switch, stainless steel, green LED, latch, IP67, IK10

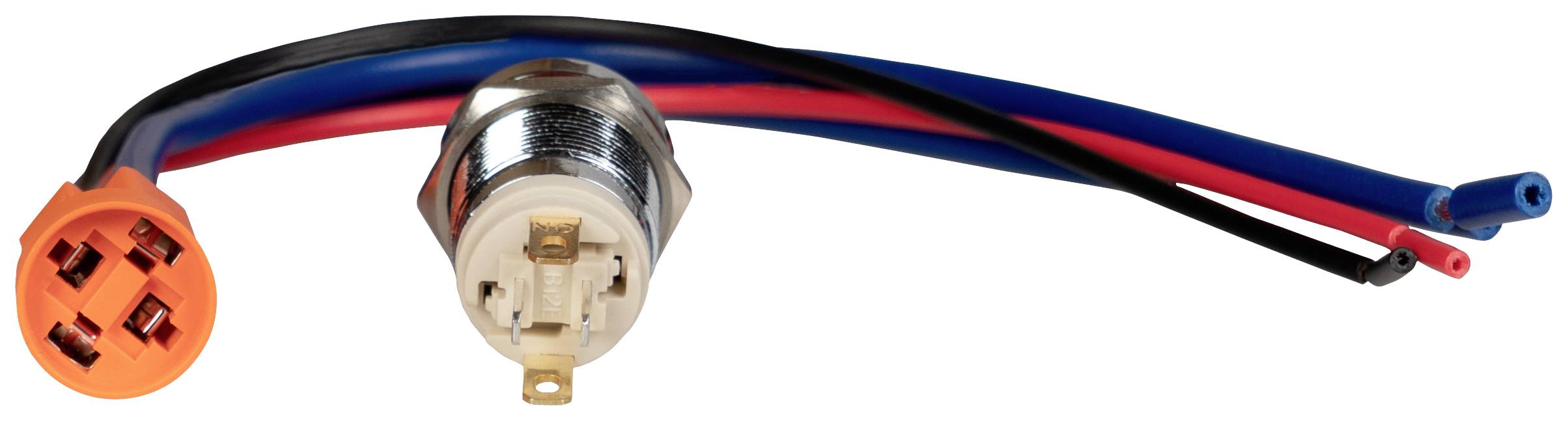

- Stainless steelIndustrial qualityPINS H65 silver/gold coatedIP67IK10Large temperature rangeincl. super smash bros. Connection cable, socket, sealing ring
Technical specifications
- Kern and outer materialStainless steelMaterial of the pinsH65 silver-/gold-coatedKey depth3.5 mmOperating modeLatch or momentaryProtection classIP67 and IK10Key featuresHigh power LED (green/red)Dimensions of mounting holeØ 12 x ≤7.5 mmTotal dimensionsØ 11.9 x 26.5 mmIncluded in the deliveryButton, 5x 150 mm cableRated load0.5 A / 250 V AC 100000X 8 A/250 V AC 30000X 20 A/250 V AC 10000XLED voltage5 - 24 V/DCLED life span40 000 hrsConnectivity2X NO, LED+, LEDInsulating resistance≥ 1000 MΩBreakdown voltage2000 V AC min.Contact resistance≤ 50 mΩTorque nut5 – 14 NmBase materialPA66 flame-retardantAss. Ambient temperature-30 to 80°C.
- Packaging type
Piece
- Product type
Tamper-proof pushbutton
- Switch/button features
illuminable
Recess mount
Front ring (steel)
+ adapter
round
Grid of holes
- Casing/button colour
Silver
- Functions
latch
- Lighting type
LED
- Colour
Green
- Bulb type
LED (monochrome)
- Key type
Snap-in
- Contact type
2 makers
- Material
Stainless steel
- Contact material
Silver with gold plating
- Connection
Socket
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Length
26.5 mm
- Width
11.9 mm
- Height
26.5 mm
- (Ø)
12 mm
- Recess length
26.5 mm
- Button diameter
11.9 mm
- Recess diameter
12 mm
- Front panel cut-out
Ø 12 x ≤7.5 mm
IK10
IP67
- Content
1 pc(s)
- Insulation resistance
1000 MΩ
- Dim
(Ø x H) 12 mm x 26.5 mm
- Industrial packaging
Yes
- Type
Button12E-01
Documents & Downloads
Datasheet
Datasheet 2757879 Joy-it Button12E-01 Button12E-01 Tamper-proof pushbutton latch Green (Ø x H) 12 mm x 26.5 mm IK10, IP67 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2757879 Joy-it Button12E-01 Button12E-01 Tamper-proof pushbutton latch Green (Ø x H) 12 mm x 26.5 mm IK10, IP67 1 pc(s) Piece
Description
The latching/momentary steel pushbutton features high-quality materials, protection classes and ergonomics. It is made of stainless steel and meets the protection classes IP67 (dust and water), IK10 (impact) and PA66 (flame). Our steel pushbutton is suitable for many applications because of its protection classes, large temperature range and long service life. The steel button has a bright LED ring (green).Due to the concave design of the surface, there are no sharp edges. Its small size allows completely new uses than its larger brothers.The required connection cables, bushing, sealing ring and nut are included in the delivery.
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
