Joy-it Button12E-02 Button12E-02 Button latch Red (Ø x L) 12 mm x 26.50 mm IK10, IP67 1 pc(s)
EAN:
Part number:
Item no:
Product type
Button
Lighting type
LED
Connection
Socket
Width
12 mm
Recess diameter
11.90 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.46
3
6% = € 0.49
€ 7.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.46 / piece)
€ 8.46
plus VAT.
14-day return policy included
Highlights & Details
Stainless steel button with micro switch, latch, LED red, IP67, IK10, PA66, 5-24V
- Stainless steelIndustrial qualityIP67, IK10, PA66LED RedWith 6 bits. Cable and socketConcave surface
Technical specifications
- Kern and outer material: Stainless steelMaterial of the pins: H65 silver-/gold-coatedButton depth 3.5 mmDimensions of mounting hole Ø 12 x ≤7.5 mmOverall dimensions Ø 11.9 x 26.5 mmRated load 0.5 A / 250 V AC 100000x 8 A / 250 V AC 30000x 20 A / 250 V AC 10000xLED VOLTAGE 5 - 24 VDCConnections 2x NO, LED+, LED-Insulation resistance ≥ 1000 MΩBreakdown voltage 2000 V AC min.Contact resistance ≤ 50 mΩTorque nut 5 - 14 NmSocket material PA66 flame-retardant
- Product type
Button
- Switch/button features
illuminable
Front ring (steel)
- Casing/button colour
Silver
- Functions
latch
- Lighting type
LED
- Colour
Red
- Bulb type
LED (monochrome)
- Material
Steel
- Connection
Socket
- Contact resistance
50 mΩ
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Length
26.50 mm
- Width
12 mm
- (Ø)
12 mm
- Button diameter
8.5 mm
- Recess diameter
11.90 mm
- Electrical lifespan
40,000 hours
- Front panel cut-out
12 mm
IK10
IP67
- Content
1 pc(s)
- Insulation resistance
1000 MΩ
- Dim
(Ø x L) 12 mm x 26.50 mm
- Industrial packaging
Yes
- RoHS-compliant
Yes
- Board thickness (max.)
7.5 mm
- Type
Button12E-02
Documents & Downloads
Datasheet
Datasheet 2757888 Joy-it Button12E-02 Button12E-02 Button latch Red (Ø x L) 12 mm x 26.50 mm IK10, IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2757888 Joy-it Button12E-02 Button12E-02 Button latch Red (Ø x L) 12 mm x 26.50 mm IK10, IP67 1 pc(s)
Description
Our small latching steel pushbutton impresses through high-quality materials, protection classes and ergonomics. It is made of stainless steel and meets the protection classes IP67 (dust and water), IK10 (impact) and PA66 (flame). Our steel pushbutton is suitable for many applications because of its protection classes, large temperature range and long service life. The steel pushbutton has a bright LED ring (red). Due to the concave design of the surface, there are no sharp edges. Its small size allows completely new uses as if it were larger brothers. The required connection cables, bushing, sealing ring and nut are included in the delivery.
This text is machine translated.
This text is machine translated.
Scope of delivery

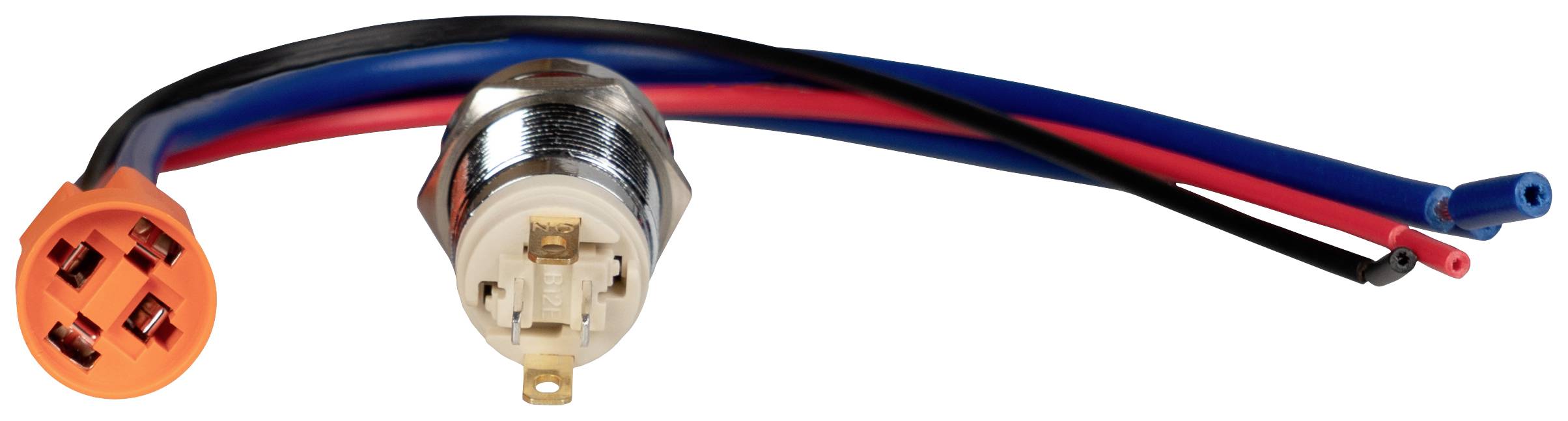

- Switch, cable, socket, sealing ring, nut
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
