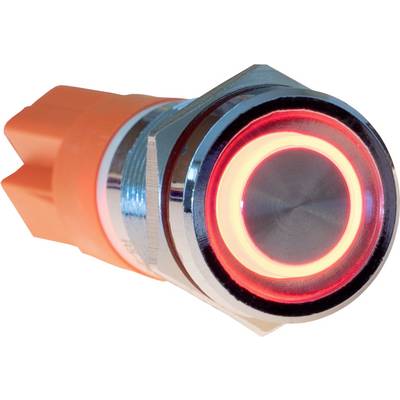

Joy-it Button12E-04 Button12E-04 Button momentary Red (Ø x H) 12 mm x 26.5 mm IK10, IP67 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Button
Lighting type
LED
Contact type
2 makers
Connection
Socket
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.46
3
6% = € 0.49
€ 7.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.46 / piece)
€ 8.46
plus VAT.
14-day return policy included
Highlights & Details
Stainless steel pushbutton, microswitch, IK10, IP67, momentary switch, LED red (5-24V), concave
- Stainless steelIK10, IP67, PA66ConcaveWith 6 bits. Adapter, cable, sealing ringIndustrial quality
Technical specifications
- Kern and outer material: Stainless steelMaterial of the pins: H65 silver-/gold-coatedButton depth 3.5 mmDimensions of mounting hole Ø 12 x ≤7.5 mmOverall dimensions Ø 11.9 x 26.5 mmRated load 0.5 A / 250 V AC 100000x 8 A / 250 V AC 30000x 20 A / 250 V AC 10000xLED VOLTAGE 5 - 24 VDCConnections 2x NO, LED+, LED-Insulation resistance ≥ 1000 MΩBreakdown voltage 2000 V AC min.Contact resistance ≤ 50 mΩTorque nut 5 - 14 NmSocket material PA66 flame-retardant
- Packaging type
Piece
- Product type
Button
- Switch/button features
illuminable
Front ring (steel)
+ adapter
+ lead
+ LED
- Casing/button colour
Silver
- Functions
momentary
- Lighting type
LED
- Colour
Red
- Bulb type
LED (monochrome)
- Contact type
2 makers
- Material
Stainless steel
- Contact material
Silver with gold plating
- Connection
Socket
- Contact resistance
50 mΩ
- Max. switching capacity
5000 VA
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Length
26.50 mm
- Width
11.9 mm
- Height
26.5 mm
- (Ø)
12 mm
- Button diameter
8.50 mm
- Recess diameter
12 mm
- Electrical lifespan
40 000 hours
- Front panel cut-out
Ø 12 x ≤7.5 mm
IK10
IP67
- Content
1 pc(s)
- Insulation resistance
1000 MΩ
- Dim
(Ø x H) 12 mm x 26.5 mm
- Industrial packaging
Yes
- Board thickness (max.)
7.5 mm
- Type
Button12E-04
Documents & Downloads
Datasheet
Datasheet 2757886 Joy-it Button12E-04 Button12E-04 Button momentary Red (Ø x H) 12 mm x 26.5 mm IK10, IP67 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2757886 Joy-it Button12E-04 Button12E-04 Button momentary Red (Ø x H) 12 mm x 26.5 mm IK10, IP67 1 pc(s) Piece
Description
Our small momentary steel pushbutton features high-quality materials, protection classes and ergonomics. It is made of stainless steel and meets the protection classes IP67 (dust and water), IK10 (impact) and PA66 (flame). Our steel pushbutton is suitable for many applications because of its protection classes, large temperature range and long service life. The steel push button has a bright LED ring (red). Due to the concave design of the surface, there are no sharp edges present. Its small size allows completely new uses as if it were larger brothers. The required connection cables, bushing, sealing ring and nut are included in the delivery.
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
