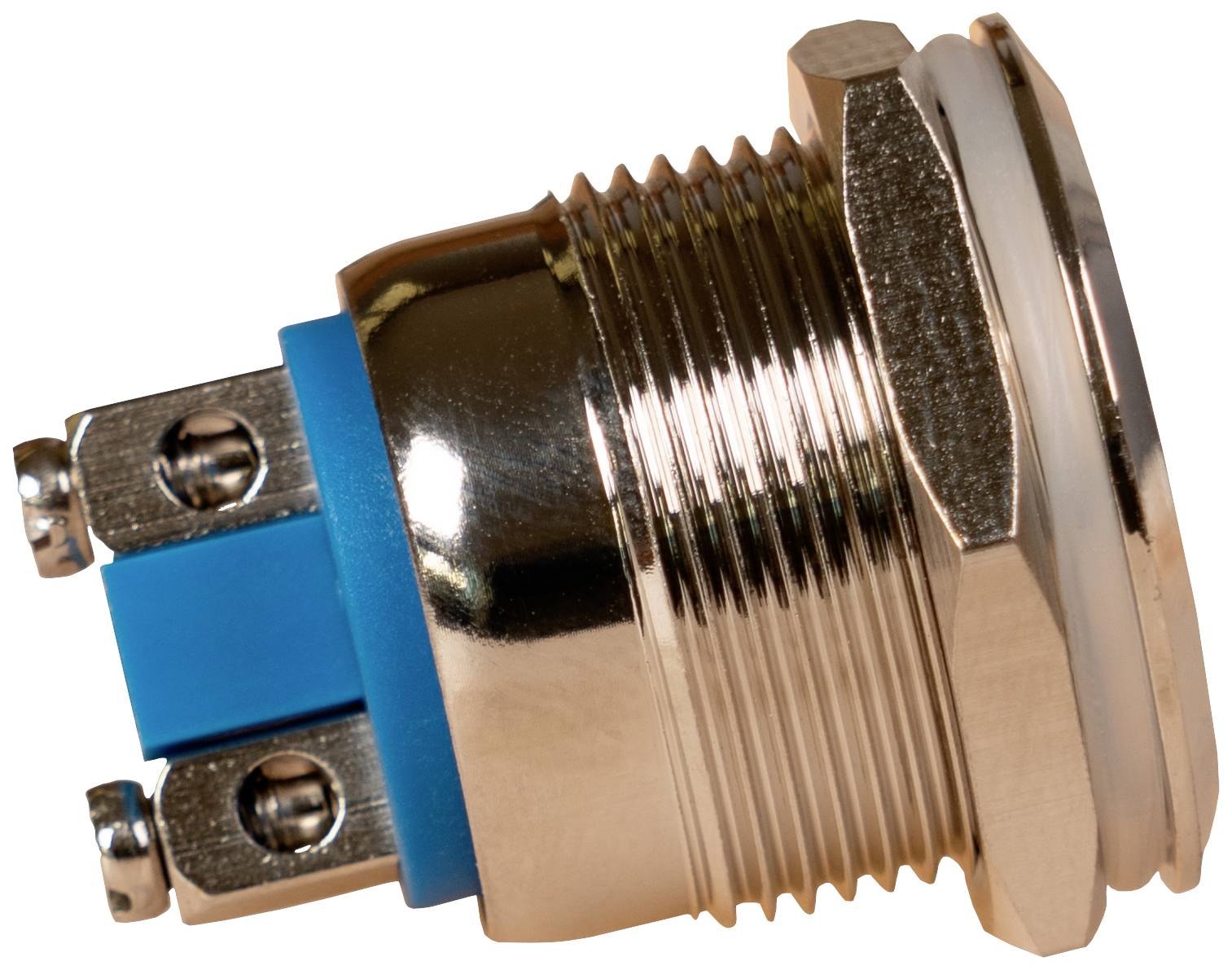

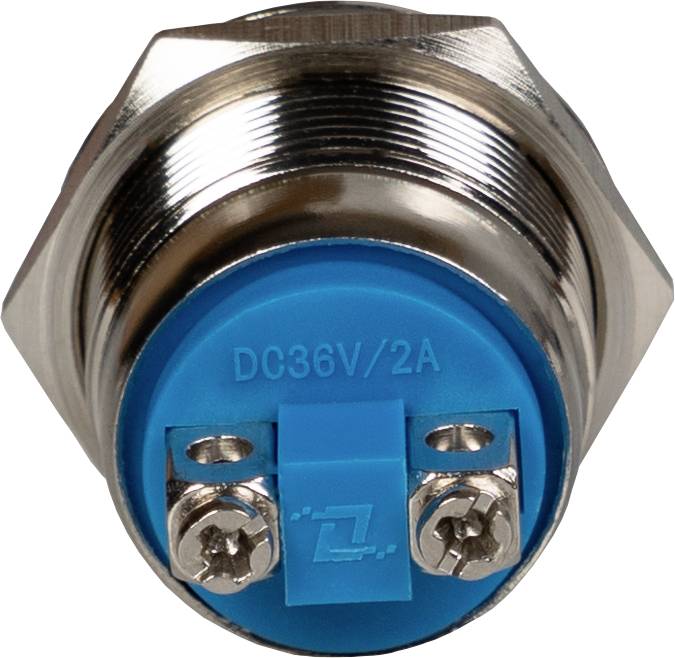

Joy-it Button19C-01 Button19C-01 Button momentary (Ø x H) 19 mm x 27.50 mm IP65 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Button
Contact type
1 maker
Connection
Screw terminal
Width
19 mm
Datasheet (PDF)
Number
Total (€ 4.23 / piece)
€ 4.23
plus VAT.
14-day return policy included
Highlights & Details
Stainless steel pushbutton, 3A, IP65, momentary action, concave, Diameter 19mm
- Stainless steelConcaveIP65, PA66Industrial qualityScrew terminal
Our service for you
Technical specifications
- Max. switching current 3 AKern and outer material: Stainless steelMaterial of the pins: Aluminium oxide, copperButton depth 2.5 mmNominal load 3 A / 250 V resistiveConnections: 1x NOInsulation resistance ≥ 1000 MΩBreakdown voltage 2000 V AC min.Contact resistance ≤ 50 mΩTorque nut 5 - 14 NmSocket material PA66 flame-retardant
- Packaging type
Piece
- Product type
Button
- Switch/button features
Recess mount
Front ring (steel)
+ thread
round
- Casing/button colour
Silver
- Functions
momentary
- Mounting type
Screw thread/nut
- Contact type
1 maker
- Material
Steel
- Connection
Screw terminal
- Contact resistance
50 mΩ
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Length
27.50 mm
- Width
19 mm
- Height
27.50 mm
- (Ø)
19 mm
- Button diameter
22 mm
- Recess diameter
19 mm
IP65
- Content
1 pc(s)
- Insulation resistance
1000 MΩ
- Dim
(Ø x H) 19 mm x 27.50 mm
- Industrial packaging
Yes
- RoHS-compliant
Yes
- Type
Button19C-01
Documents & Downloads
Datasheet
Datasheet 2757884 Joy-it Button19C-01 Button19C-01 Button momentary (Ø x H) 19 mm x 27.50 mm IP65 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2757884 Joy-it Button19C-01 Button19C-01 Button momentary (Ø x H) 19 mm x 27.50 mm IP65 1 pc(s) Piece
Description
Our momentary-action steel pushbutton features high-quality materials, protection class and ergonomic. It is made of stainless steel and meets the protection class IP65 (dust and water). Our steel pushbutton is suitable for many applications due to its design, large temperature range and long life. Due to the design of the surface no sharp edges can be formed. The connection via a screw terminal enables a quick and easy installation in your project.
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
