Joy-it COMAM01 Digital rack-mount meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
14-day return policy included
Highlights & Details
Compact DC meter to 20A, 4-30V DC, 3-digit, RED LED
- 0–20 A DC measuring range
- Supply voltage 4 – 30 VDC
- Built-in calibration potentiometer
- Bright display with red LEDs 0.56 inches per digit
- 4 connection lines
- Compact and robust housing
Technical specifications
- Technical drawing included in data sheet
- Current resolution 0.1 A.
- Screen size: 0.56 inches per digit
- Update rate: 500ms
- Operating temperature -10 to 65 degrees Celsius
- Display color red
- Cable length: 14cm
- Built-in calibration potentiometer
- Cable assignment: See data sheet
- Product type
Digital rack-mount meter
- Reading type
Amperage
- Reading range (min.)
0 A
- Type
COMAM01
- Reading range (max.)
20 A
- Display technology
LED
- Display (counts)
3
- Dim
(L x W x H) 29 x 48 x 22 mm
- Weight
28 g
- Max. operating voltage
30 V
- Min. operating voltage
4 V
- Display lighting
red
- Factory colour
Black
- Width
48 mm
- Height
22 mm
- Length
29 mm
Documents & Downloads
Datasheet
Datasheet 3828248 Joy-it COMAM01 Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 3828248 Joy-it COMAM01 Digital rack-mount meter
Description
The COM-AM01 is a compact and versatile
Digital DC Ampere meter, for precise
And reliable current measurements in a variety of
Low-voltage applications. It works
With a supply voltage between 4 and 30 V DC
And measures currents from 0 to 20 A DC with a fine resolution
Of 0.1 A, which makes it Ideal for laboratories, mobile
Power systems and customer specific
Electronic projects.

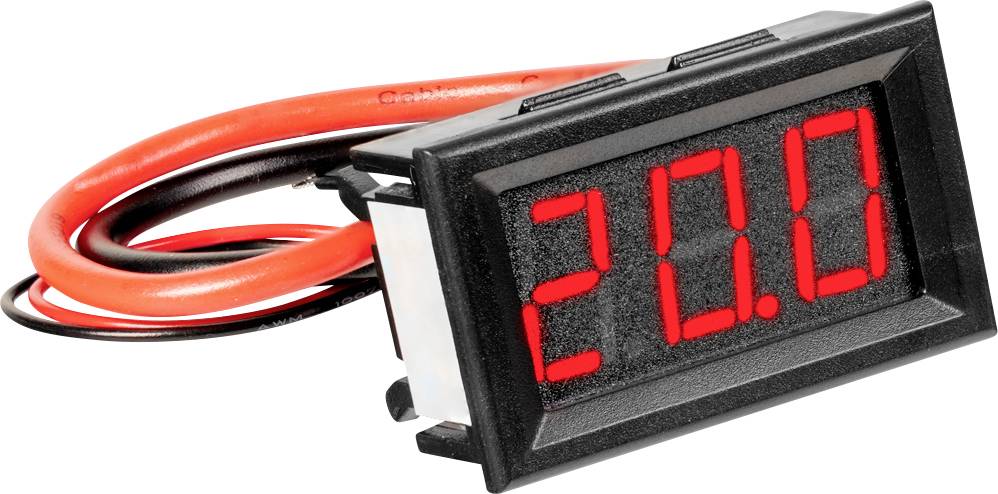

Equipped with a bright red 0.56-inch LED display (PRO
Number) with 3-digit segment display, the module also offers
Excellent readability in bright ambient light.
The update rate of 500 ms provides for a fluid
And responsive display while the accuracy of
±1 % + 2 digits reliable measurement results are ensured.
A special highlight of the COM-AM01 is the integrated
Calibration potentiometer, the display is activated by the user
Fine tune and recalibrate for maximum precision
can be performed. This function makes the module special
Valuable for long-term installations or applications,
Where accurate current values are crucial.

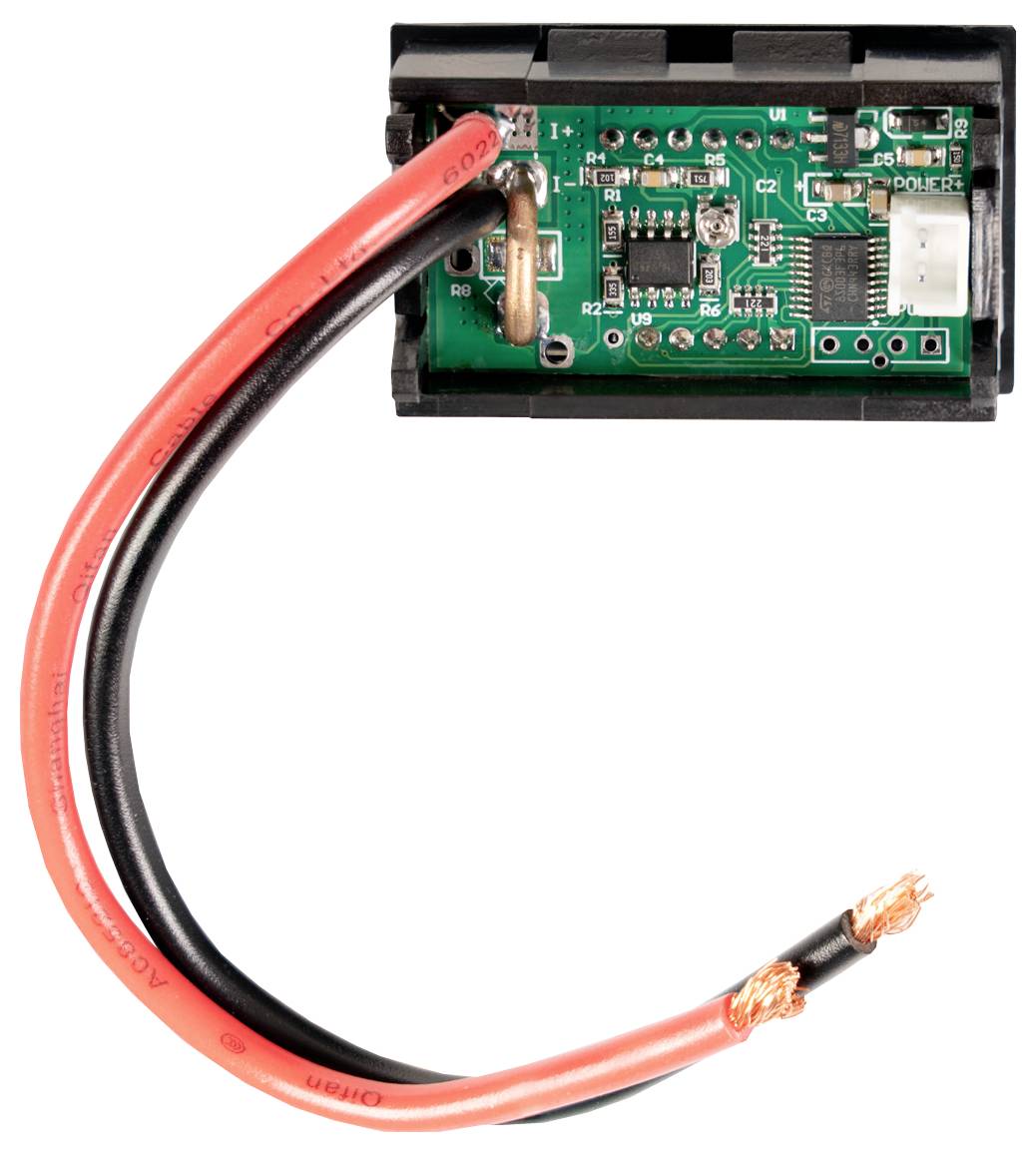

The ammeter works with a four-wire connection system:
You use two thicker cables (red and black)
Current measurement, while two thinner cables are
Supply and ground connection.
This separation minimizes measurement disturbances and ensures
Stable operation even in case of load fluctuations.
With its robust and light built (28 g)
Wide operating temperature range (–10 °C to +65 °C) and
With the compact dimensions (48 × 29 × 22 mm) this can be
COM-AM01 can be easily used in control panels, power distribution boxes,
Lab equipment and embedded systems.
Whether in industry, automotive industry or in education
– The COM-AM01 offers a cost-effective, space-saving and
Highly precise solution for monitoring DC currents, added
By a user-adjustable calibration potentiometer
For optimum long-term performance.
This text is machine translated.
Digital DC Ampere meter, for precise
And reliable current measurements in a variety of
Low-voltage applications. It works
With a supply voltage between 4 and 30 V DC
And measures currents from 0 to 20 A DC with a fine resolution
Of 0.1 A, which makes it Ideal for laboratories, mobile
Power systems and customer specific
Electronic projects.
Equipped with a bright red 0.56-inch LED display (PRO
Number) with 3-digit segment display, the module also offers
Excellent readability in bright ambient light.
The update rate of 500 ms provides for a fluid
And responsive display while the accuracy of
±1 % + 2 digits reliable measurement results are ensured.
A special highlight of the COM-AM01 is the integrated
Calibration potentiometer, the display is activated by the user
Fine tune and recalibrate for maximum precision
can be performed. This function makes the module special
Valuable for long-term installations or applications,
Where accurate current values are crucial.
The ammeter works with a four-wire connection system:
You use two thicker cables (red and black)
Current measurement, while two thinner cables are
Supply and ground connection.
This separation minimizes measurement disturbances and ensures
Stable operation even in case of load fluctuations.
With its robust and light built (28 g)
Wide operating temperature range (–10 °C to +65 °C) and
With the compact dimensions (48 × 29 × 22 mm) this can be
COM-AM01 can be easily used in control panels, power distribution boxes,
Lab equipment and embedded systems.
Whether in industry, automotive industry or in education
– The COM-AM01 offers a cost-effective, space-saving and
Highly precise solution for monitoring DC currents, added
By a user-adjustable calibration potentiometer
For optimum long-term performance.
This text is machine translated.
Scope of delivery
- Measurement device, connection cable
