Joy-it COMAM04 Digital rack-mount meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Highlights & Details
Compact DC meter to 100A, 4-30V DC, 3-digit, LED BLUE
- 0–100 A DC measuring range
- Supply voltage 4 – 30 VDC
- Built-in calibration potentiometer
- Bright 1.56-inch display with blue LEDs
- 4-conductor connection design
- Compact and robust housing
Technical specifications
- Technical drawing included in data sheet
- Current resolution 0.1 A.
- Digit size per digit: 0.56 inches
- Update rate: 500ms
- Operating temperature: -10 to 65 degrees Celsius
- 3-digit segment display
- LED color: Blue
- Cable length: 14cm
- Integrated calibration potentiometer, external shunt resistor
- Product type
Digital rack-mount meter
- Reading type
Amperage
- Reading range (min.)
0 A
- Type
COMAM04
- Reading range (max.)
100 A
- Display technology
LED
- Display (counts)
3
- Dim
(L x W x H) 29 x 48 x 22 mm
- Weight
147 g
- Max. operating voltage
30 V DC/AC
- Min. operating voltage
4 V
- Display lighting
blue
- Factory colour
Black
- Width
48 mm
- Height
22 mm
- Length
29 mm
- Digit height
14,2 mm
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 3828251 Joy-it COMAM04 Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 3828251 Joy-it COMAM04 Digital rack-mount meter
Description
The COM-AM04 is a highly precise digital DC current
Ampere meter, which for the exact measurement of large currents to
To 100 A direct current. Ideal is suitable
For monitoring high-power DC systems,
Battery packs, solar systems or laboratory testing devices included
To which precise current monitoring is essential.
Unlike compact inLine meters used
The COM-AM04 an external shunt resistor, WAS
Provides a safe and reliable measurement of current,
Without excessive force inside the meter
Heat developed. The supplied shunt ensures
Stable and reproducible results and ensures
For simple and flexible installation at the same time.
The device is supplied with a supply voltage of 4 – 30 V.
DC operated and offers a measurement resolution of 0.1 A. That
Bright blue LED display with a digit height of 0.56 inches
And a 3-digit segment layout ensure a
Clear readability under all lighting conditions. With one
Update rate of 500 ms and an accuracy of
±1 % + 2 digits the COM-AM04 provides fast, stable and
Reliable measurements.
For precise calibration and long-term
The accuracy of the module is provided with an integrated
Calibration potentiometer, with the user
The display exactly according to the properties of the
External shunt resistor.
Thanks to its robust design, the wide
Operating temperature range (–10 °C to +65 °C) and DER
Compact design (48 × 29 × 22 mm), that allows
COM-AM04 easily in front panels, control boxes
Or portable measurement systems. It offers one
Reliable, economical and space saving solution
For the exact DC-monitoring in industrial,
Automotive and laboratory environments.
This text is machine translated.
Ampere meter, which for the exact measurement of large currents to
To 100 A direct current. Ideal is suitable
For monitoring high-power DC systems,
Battery packs, solar systems or laboratory testing devices included
To which precise current monitoring is essential.
Unlike compact inLine meters used
The COM-AM04 an external shunt resistor, WAS
Provides a safe and reliable measurement of current,
Without excessive force inside the meter
Heat developed. The supplied shunt ensures
Stable and reproducible results and ensures
For simple and flexible installation at the same time.
The device is supplied with a supply voltage of 4 – 30 V.
DC operated and offers a measurement resolution of 0.1 A. That
Bright blue LED display with a digit height of 0.56 inches
And a 3-digit segment layout ensure a
Clear readability under all lighting conditions. With one
Update rate of 500 ms and an accuracy of
±1 % + 2 digits the COM-AM04 provides fast, stable and
Reliable measurements.
For precise calibration and long-term
The accuracy of the module is provided with an integrated
Calibration potentiometer, with the user
The display exactly according to the properties of the
External shunt resistor.
Thanks to its robust design, the wide
Operating temperature range (–10 °C to +65 °C) and DER
Compact design (48 × 29 × 22 mm), that allows
COM-AM04 easily in front panels, control boxes
Or portable measurement systems. It offers one
Reliable, economical and space saving solution
For the exact DC-monitoring in industrial,
Automotive and laboratory environments.
This text is machine translated.
Scope of delivery

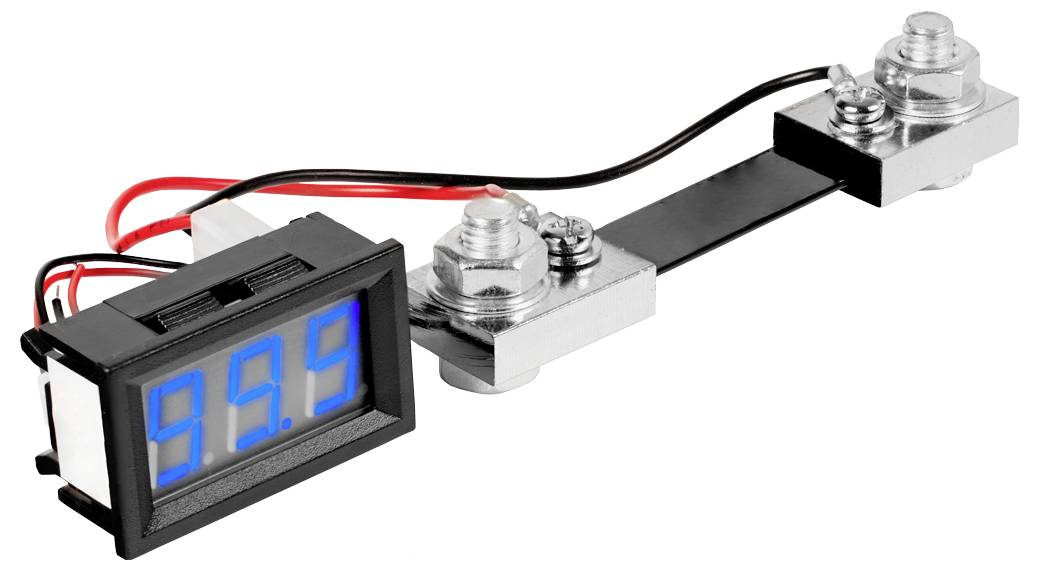

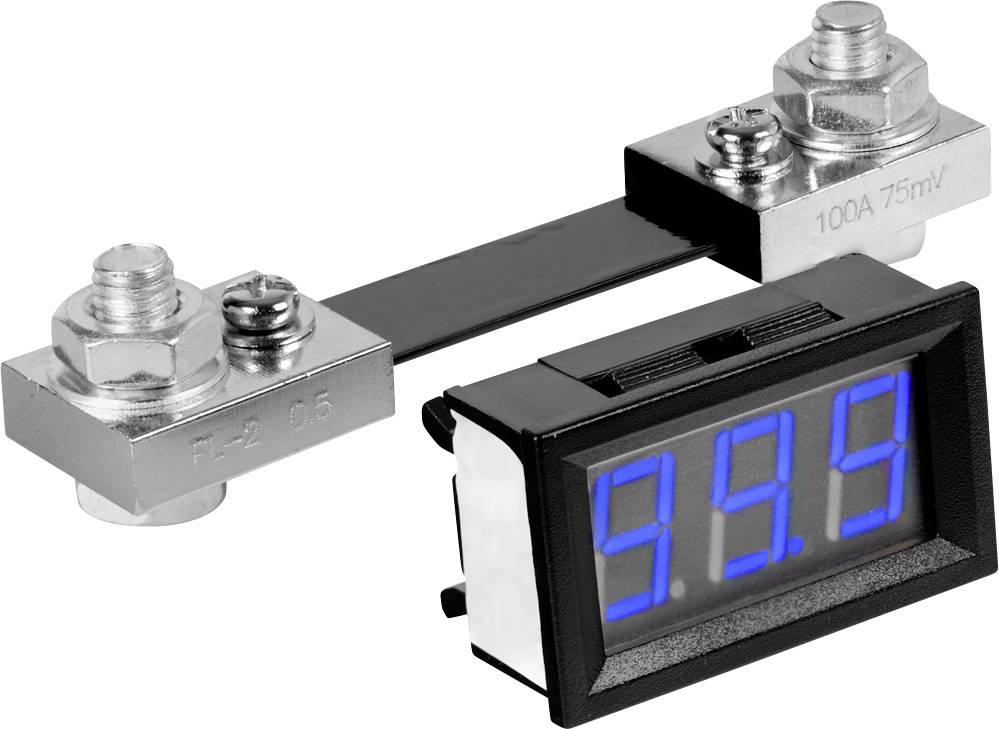

- 1x built-in ammeter, 1x shunt-resistor, cable
