Joy-it COMVAM01 Digital rack-mount meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Highlights & Details
DC & current meter, up to 100V, up to 100A, 2x3 LED RED/GREEN, 48x29x22mm
- Measures 0–100 VDC and 0–100 A DC simultaneously
- External shunt resistor for the precise measurement
- High currents
- Built-in calibration potentiometer for fine adjustment
- Two 3 digit LED indicators - red (voltage), green
- (Current)
- Compact design with dimensions of only 48 × 29 ×
- 22 mm
- Wide supply voltage range (3.5–30 VDC) and
- Fast update rate of 500 ms
Technical specifications
- Red LED: Voltmeter
- Green LED: Ammeter
- Measures 0–100 VDC and 0–100 A DC simultaneously
- External shunt resistor for the precise measurement
- High currents
- Built-in calibration potentiometer for fine adjustment
- Two 3 digit LED indicators - red (voltage), green
- (Current)
- Compact design with dimensions of only 48 × 29 ×
- 22 mm
- Wide supply voltage range (3.5–30 VDC) and
- Fast update rate of 500 ms
- Voltage resolution: 0.1A
- Update rate: 500ms
- Operating temperature -10 to +60 oC
- 3-digit segment display per measurement value
- Integrated potentiometer for current calibration,
- External shunt resistor
- Product type
Digital rack-mount meter
- Reading type
Voltage
Amperage
- Reading range (min.)
0 V
0 A
- Type
COMVAM01
- Reading range (max.)
100 V
100 A
- Display technology
LED
- Operating voltage
3.5 V
30 V
- Dim
(L x W x H) 29 x 48 x 22 mm
- Weight
79 g
- Max. operating voltage
30 V
- Min. operating voltage
3.50 V
- Display lighting
red
green
- Features
Dual reading dial
- Factory colour
Black
- Width
48 mm
- Height
22 mm
- Length
29 mm
- Digit height
7,1 mm
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 3828252 Joy-it COMVAM01 Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 3828252 Joy-it COMVAM01 Digital rack-mount meter
Description
The COM-VAM01 is a versatile and precise
Digital panel-mounted meter for simultaneous
Measurement of direct voltage and current It was
For reliable use in laboratories, industry and
Mobile DC systems
Offers a large measurement range as well as a simple one
Integration into a variety of applications such as
Power supplies, battery systems or solar controller.
The device supports an operating voltage of 3.5 – 30
V DC, measures voltages up to 100 V DC and currents up to
100 A DC with a fine resolution of 0.1 V / 0.1 A. Both
Measured values are separately on bright, high-contrast
3-digit LED segment display with a digit height
Of 0.28″ per display. The red indicator shows the
Voltage while the green indicator indicates the current.

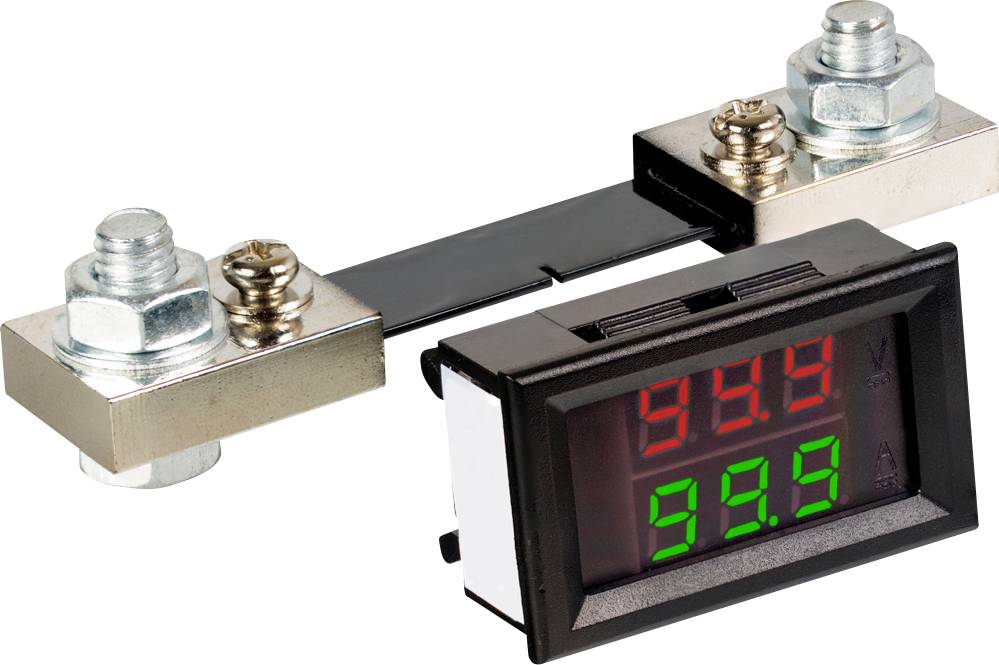

For high-current measurements, the COM-VAM01 uses
An external precision shunt resistor, which also applies
High load currents for a safe and low-loss measurement

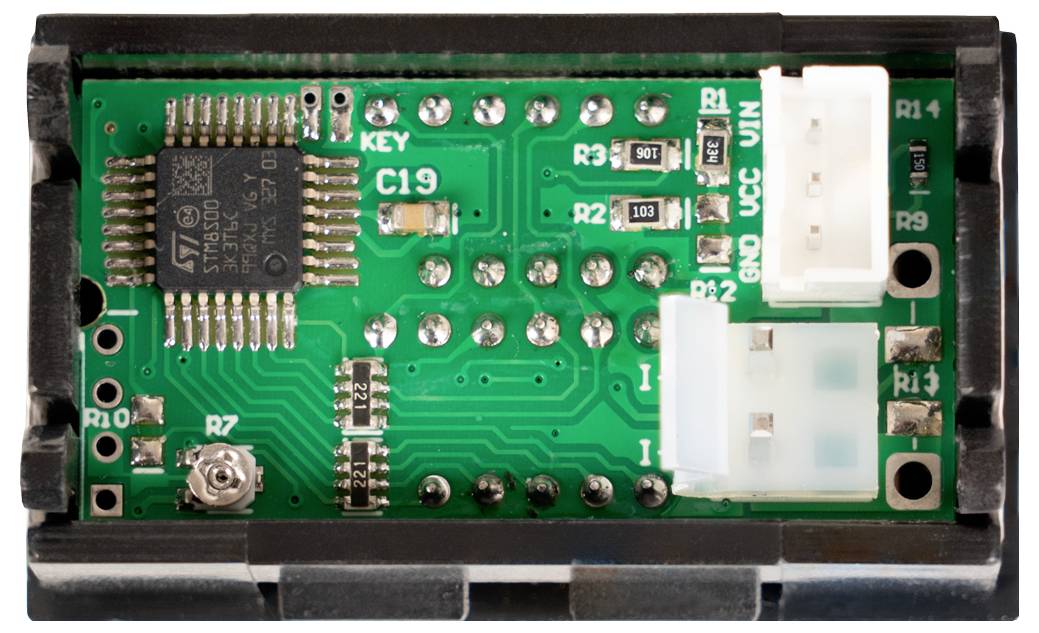

enables. The integrated calibration potentiometer
Allows you to fine-tune the current reading in order to
Ensure long-term measurement accuracy.
With an update rate of 500 ms and one
That's what ±1% + 2 digits make of
Device fast and reliable measurements for the
Real-time monitoring The compact design (48 × 29 × 22
Mm) and the light-weight design facilitate the integration
In front panels or casings, while the large one
Stable operating temperature range (-10 °C to +60 °C)
Performance under demanding conditions.

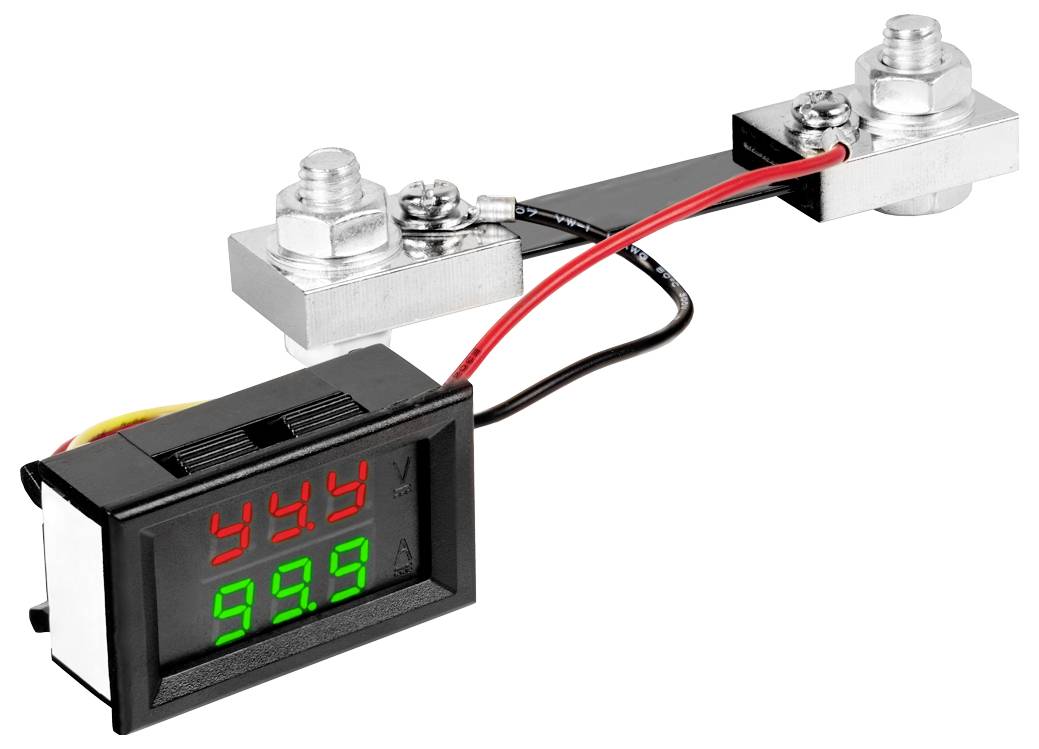

Thanks to its four-wire system for current measurement
And an additional voltage test lead is the
Installation is simple and safe. That's the COMVAM01
a robust, precise and user-friendly
Measuring device with two displays, Ideal for engineers, technicians
And developers who provide a reliable measurement solution for
DC applications.
This text is machine translated.
Digital panel-mounted meter for simultaneous
Measurement of direct voltage and current It was
For reliable use in laboratories, industry and
Mobile DC systems
Offers a large measurement range as well as a simple one
Integration into a variety of applications such as
Power supplies, battery systems or solar controller.
The device supports an operating voltage of 3.5 – 30
V DC, measures voltages up to 100 V DC and currents up to
100 A DC with a fine resolution of 0.1 V / 0.1 A. Both
Measured values are separately on bright, high-contrast
3-digit LED segment display with a digit height
Of 0.28″ per display. The red indicator shows the
Voltage while the green indicator indicates the current.
For high-current measurements, the COM-VAM01 uses
An external precision shunt resistor, which also applies
High load currents for a safe and low-loss measurement
enables. The integrated calibration potentiometer
Allows you to fine-tune the current reading in order to
Ensure long-term measurement accuracy.
With an update rate of 500 ms and one
That's what ±1% + 2 digits make of
Device fast and reliable measurements for the
Real-time monitoring The compact design (48 × 29 × 22
Mm) and the light-weight design facilitate the integration
In front panels or casings, while the large one
Stable operating temperature range (-10 °C to +60 °C)
Performance under demanding conditions.
Thanks to its four-wire system for current measurement
And an additional voltage test lead is the
Installation is simple and safe. That's the COMVAM01
a robust, precise and user-friendly
Measuring device with two displays, Ideal for engineers, technicians
And developers who provide a reliable measurement solution for
DC applications.
This text is machine translated.
Scope of delivery
- 1x measuring device, 1x shunt resistor, connecting cable
