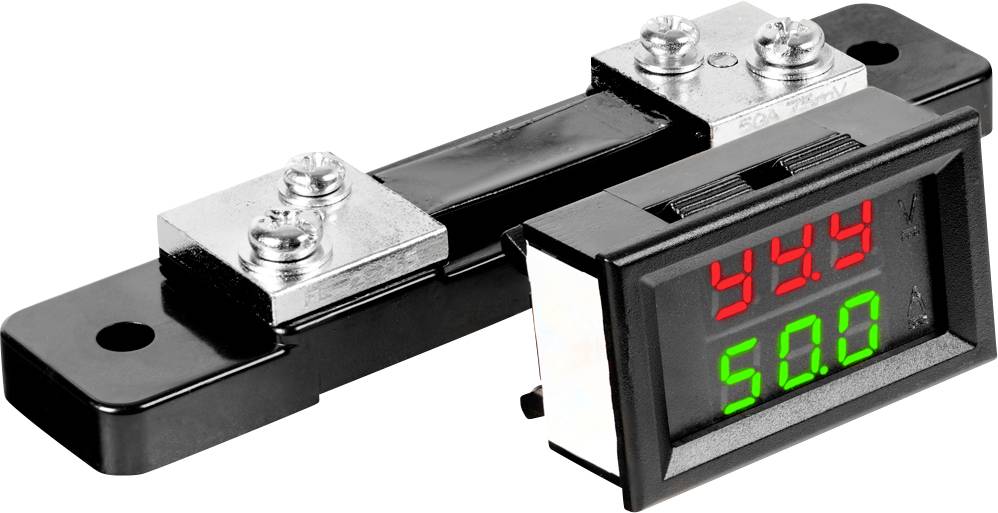

Joy-it COMVAM02 Digital rack-mount meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
14-day return policy included
Highlights & Details
DC & power meter, up to 100V, up to 50A, 2x3, LED RED/GREEN
- Measures 0–100 VDC and 0–50.0 A DC simultaneously
- External shunt resistor for the precise measurement
- High currents
- Built-in calibration potentiometer for fine adjustment
- Two 3 digit LED indicators - red (voltage), green
- (Current)
- Compact design with dimensions of only 48 × 29 ×
- 22 mm
- Wide supply voltage range (3.5–30 VDC) and
- Fast update rate of 500 ms
Technical specifications
- Red LED: Voltmeter
- Green LED: Ammeter
- Measures 0–100 VDC and 0–50 A DC simultaneously
- External shunt resistor for the precise measurement
- High currents
- Built-in calibration potentiometer for fine adjustment
- Two 3 digit LED indicators - red (voltage), green
- (Current)
- Compact design with dimensions of only 48 × 29 ×
- 22 mm
- Wide supply voltage range (3.5–30 VDC) and
- Fast update rate of 500 ms
- Voltage resolution: 0.1A
- Update rate: 500ms
- Operating temperature -10 to +60 oC
- 3-digit segment display per measurement value

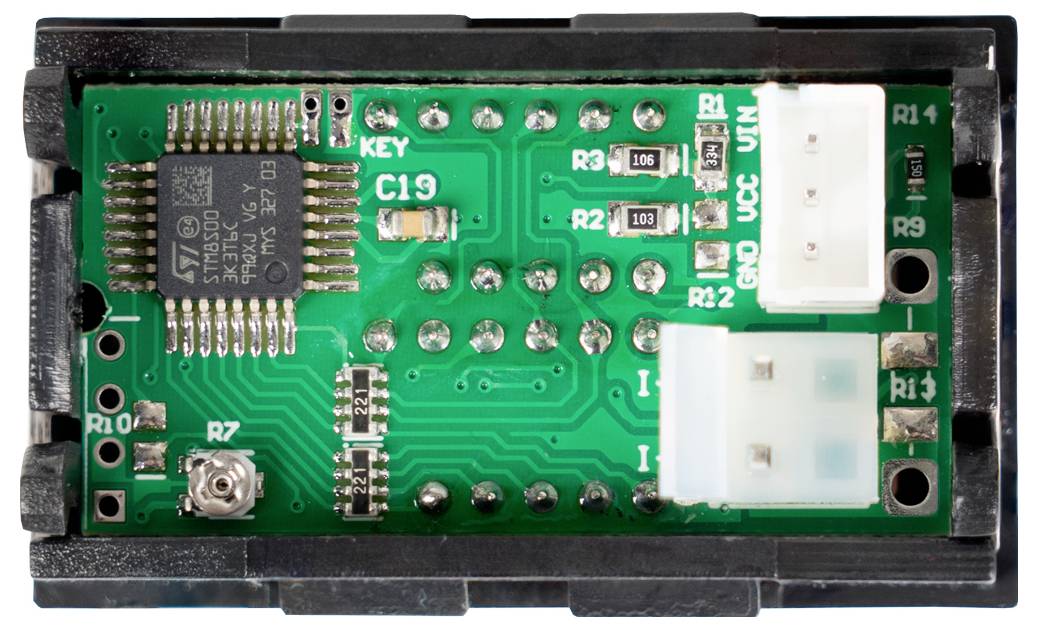

- Integrated potentiometer for current calibration,
- External shunt resistor
- Product type
Digital rack-mount meter
- Reading type
Amperage
Voltage
- Reading range (min.)
0 A
0 V
- Type
COMVAM02
- Reading range (max.)
50 A
100 V
- Display technology
LED
- Operating voltage
3.5 V
30 V
- Dim
(L x W x H) 29 x 48 x 22 mm
- Weight
146 g
- Max. operating voltage
3.50 V
- Min. operating voltage
30 V
- Display lighting
red
green
- Features
Dual reading dial
- Factory colour
Black
- Width
48 mm
- Height
22 mm
- Length
29 mm
- Digit height
7.1 mm
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 3828253 Joy-it COMVAM02 Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 3828253 Joy-it COMVAM02 Digital rack-mount meter
Description
The COM-VAM02 is a compact and precise digital
DC voltage and current meter, the for
The exact monitoring of voltage and current
In low-voltage systems. with
Its integrated dual display, the external shunt
It offers resistance and the calibration function
A reliable and easy-to-use solution for
Laboratories, industrial facilities and mobile applications.
The device works in the range of 3.5 to 30 V DC and
Measures voltages up to 100 V DC as well as currents up to
50 A DC with a high resolution of 0.1 V / 0.1 A. Two
Separate 3-digit LED displays represent both measured values
Clear - the red display for the voltage and
The green display for the current. Each display has it
A digit height of 0.28″, WAS also in bright environments
Ensures excellent readability.
Through the use of an external precision shunt
Resistance enables the COM-VAM02 safe and
Stable high current measurements without any excessive internal
Heating or voltage drop. The integrated
Calibration potentiometer enables fine tuning
Current value, thereby ensuring a long-term value
Accuracy even after long use.
With an update rate of 500 ms and one
Accuracy of ±1 % + 2 digits is supplied by the device
Fast, stable and reliable measurements. Thanks
Its compact dimensions (48 × 29 × 22 mm)
And the wide operating temperature range (-10°C)
Up to +60 °C), it can be easily integrated in control panels,
Install test benches or portable systems.
The COM-VAM02 is the ideal solution for all who need one
Precise, robust and cost-effective double measuring device
For DC voltage and current – it combined
Easy installation with reliable performance in the daily routine
Application.
This text is machine translated.
DC voltage and current meter, the for
The exact monitoring of voltage and current
In low-voltage systems. with
Its integrated dual display, the external shunt
It offers resistance and the calibration function
A reliable and easy-to-use solution for
Laboratories, industrial facilities and mobile applications.
The device works in the range of 3.5 to 30 V DC and
Measures voltages up to 100 V DC as well as currents up to
50 A DC with a high resolution of 0.1 V / 0.1 A. Two
Separate 3-digit LED displays represent both measured values
Clear - the red display for the voltage and
The green display for the current. Each display has it
A digit height of 0.28″, WAS also in bright environments
Ensures excellent readability.
Through the use of an external precision shunt
Resistance enables the COM-VAM02 safe and
Stable high current measurements without any excessive internal
Heating or voltage drop. The integrated
Calibration potentiometer enables fine tuning
Current value, thereby ensuring a long-term value
Accuracy even after long use.
With an update rate of 500 ms and one
Accuracy of ±1 % + 2 digits is supplied by the device
Fast, stable and reliable measurements. Thanks
Its compact dimensions (48 × 29 × 22 mm)
And the wide operating temperature range (-10°C)
Up to +60 °C), it can be easily integrated in control panels,
Install test benches or portable systems.
The COM-VAM02 is the ideal solution for all who need one
Precise, robust and cost-effective double measuring device
For DC voltage and current – it combined
Easy installation with reliable performance in the daily routine
Application.
This text is machine translated.
Scope of delivery

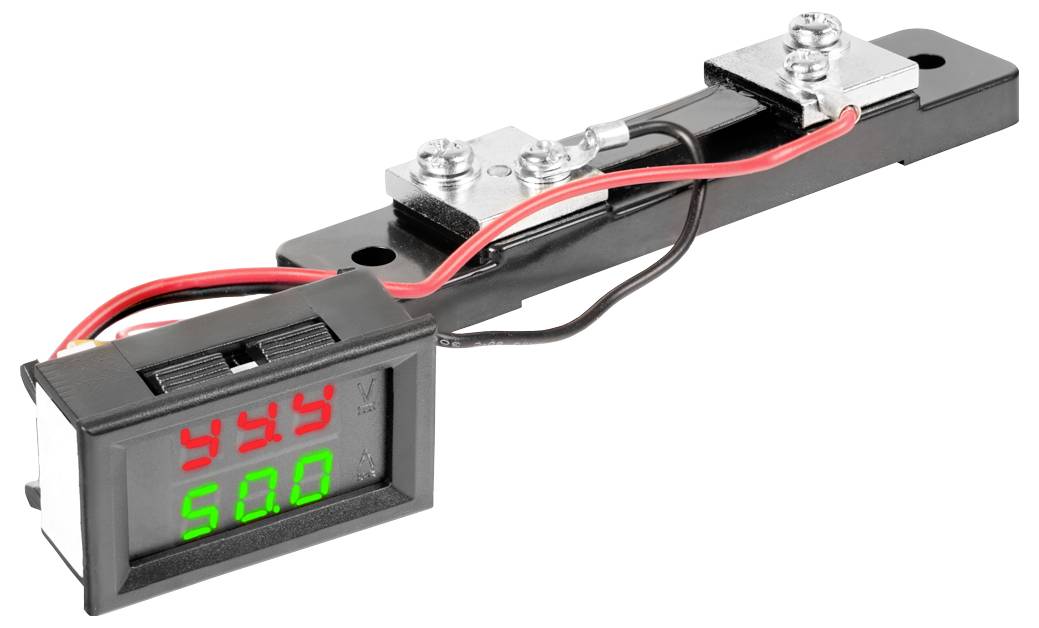

- 1x measuring device, 1x shunt resistor, connecting cable
