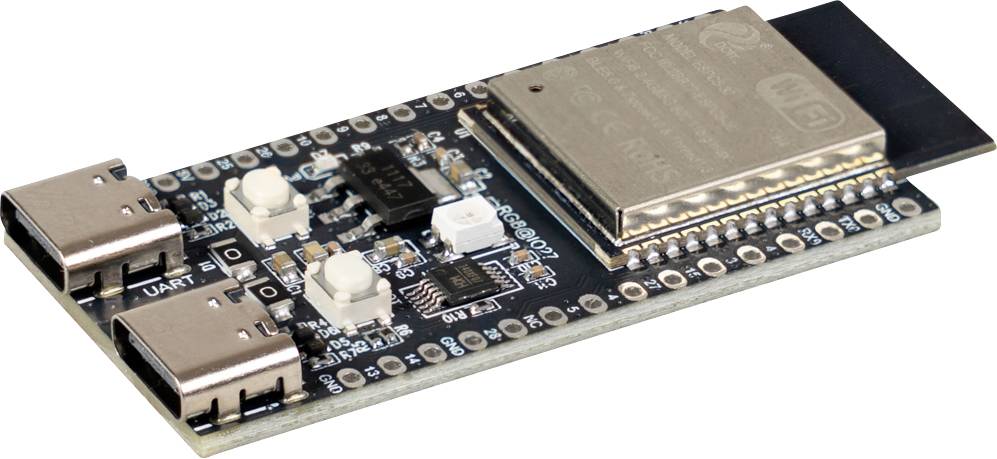

Joy-it ESP32C5 PCB design board ESP32C5
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 12.52 / piece)
€ 12.52
plus VAT.
14-day return policy included
Highlights & Details
ESP32‑C5 – Dual Band‑Wi‑Fi‑6 module, 2.4 & 5GHZ, USB-C, 5V/3V
- 32-bit RISC-V single-core microprocessor with extremely low power consumption at 240 MHz
- Dual band WLAN 6 (2.4 GHz and 5 GHz) for fast and reliable wireless communication
- Integrated support for BTLE, Zigbee, and thread
- Flexible power supply: 5 V via USB or 5 V pin, 3.3 V via 3 V pin
- USB Type-C interface for easy programming and troubleshooting
- 22 GPIO pins with integral reset function, boot keys, RGB LED and Power LED
Technical specifications
- Ultra-low Power-SoC with 32-bit RISC-V single-core microprocessor
- @240 MHz
- 2.4 and 5 GHz dual band WLAN 6 (802.11ax), BT 5 (LE), Zigbee and
- Thread (802.15.4)
- ROM: 320KB
- SRAM:400KB
- INTERFACES: USB, UART, SPI, I²C, I²S, PWM, ADC
- Programming interfaces:
- ESP32-C5 USB type C connector, USB type C to UART connector
- Reset button, boot button, RGB LED (GPIO 27), Power LED

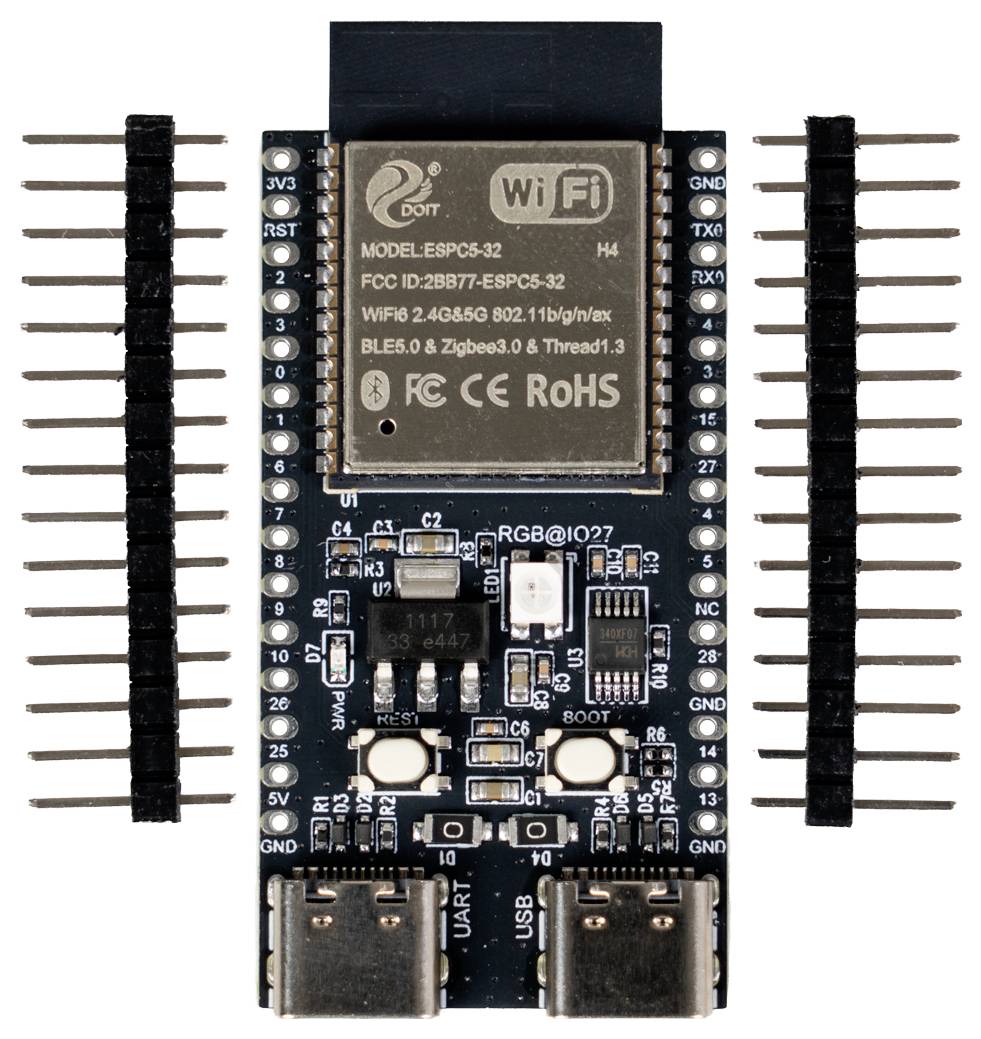

- Included in delivery: ESP32-C5-module, 2x 15-pin header
400 kB
- Bluetooth
5.0
- Wi-Fi
built-in
- Length
53.60 mm
- Width
25.30 mm
- Height
4.8 mm
- Product type
PCB design board
Documents & Downloads
Datasheet
Datasheet 3802363 Joy-it ESP32C5 PCB design board ESP32C5
User & Safety Instructions
User & Safety Instructions 3802363 Joy-it ESP32C5 PCB design board ESP32C5
Description
ESP32‑C5 Dual Band‑Wi‑Fi‑6 module for professional IoT and Embedded applications
The ESP32‑C5 module is a compact, highly integrated development platform for modern IoT, Smart Home and Industrial Automation projects. With its efficient 32-bit RISC-V single-core processor, it offers a powerful combination of performance, low power consumption and flexible integration into custom hardware designs.
Modern wireless technologies for reliable connectivity
The module supports dual band‑Wi‑Fi 6 (2.4 / 5 GHz) as well as Bluetooth LE, Zigbee and thread. This makes Ideal suitable for applications requiring robust, future-proof wireless communication – from networked sensors to automation devices to complex IoT systems.
Flexible power supply & easy integration
The ESP32‑C5 can be supplied via USB‑C, the 5‑V‑pin or the 3.3‑V‑pin. The integrated USB‑C interface enables convenient programming and debugging, while 22 GPIO pins provide adequate connectivity for external components.
Development-friendly onboard features
The following functions are available for efficient development:
Reset and boot buttons
RGB status LED
Power LED
Compact dimensions for projects with limited available space
This equipment facilitates Rapid prototyping, testing and status monitoring during operation.
Ideal for professional B2B applications
Thanks to its modern radio architecture, flexible supply and compact design, the ESP32‑C5 module is particularly suitable for:
Smart home gateways and automation devices
Industrial and building automation
IoT sensors and networked embedded systems
Development and Prototyping environments
Detailed technical details and specifications are given in the official Espressif ESP32‑C5 data sheet.
This text is machine translated.
The ESP32‑C5 module is a compact, highly integrated development platform for modern IoT, Smart Home and Industrial Automation projects. With its efficient 32-bit RISC-V single-core processor, it offers a powerful combination of performance, low power consumption and flexible integration into custom hardware designs.
Modern wireless technologies for reliable connectivity
The module supports dual band‑Wi‑Fi 6 (2.4 / 5 GHz) as well as Bluetooth LE, Zigbee and thread. This makes Ideal suitable for applications requiring robust, future-proof wireless communication – from networked sensors to automation devices to complex IoT systems.
Flexible power supply & easy integration
The ESP32‑C5 can be supplied via USB‑C, the 5‑V‑pin or the 3.3‑V‑pin. The integrated USB‑C interface enables convenient programming and debugging, while 22 GPIO pins provide adequate connectivity for external components.
Development-friendly onboard features
The following functions are available for efficient development:
Reset and boot buttons
RGB status LED
Power LED
Compact dimensions for projects with limited available space
This equipment facilitates Rapid prototyping, testing and status monitoring during operation.
Ideal for professional B2B applications
Thanks to its modern radio architecture, flexible supply and compact design, the ESP32‑C5 module is particularly suitable for:
Smart home gateways and automation devices
Industrial and building automation
IoT sensors and networked embedded systems
Development and Prototyping environments
Detailed technical details and specifications are given in the official Espressif ESP32‑C5 data sheet.
This text is machine translated.
Scope of delivery
- ESP32-C5-module, 2x 15-pin strip
