Joy-it ESP32C6 PCB design board ESP32C6 ESP32-C6
EAN:
Part number:
Item no:
Number
Total (€ 9.20 / piece)
€ 9.20
plus VAT.
14-day return policy included
Highlights & Details

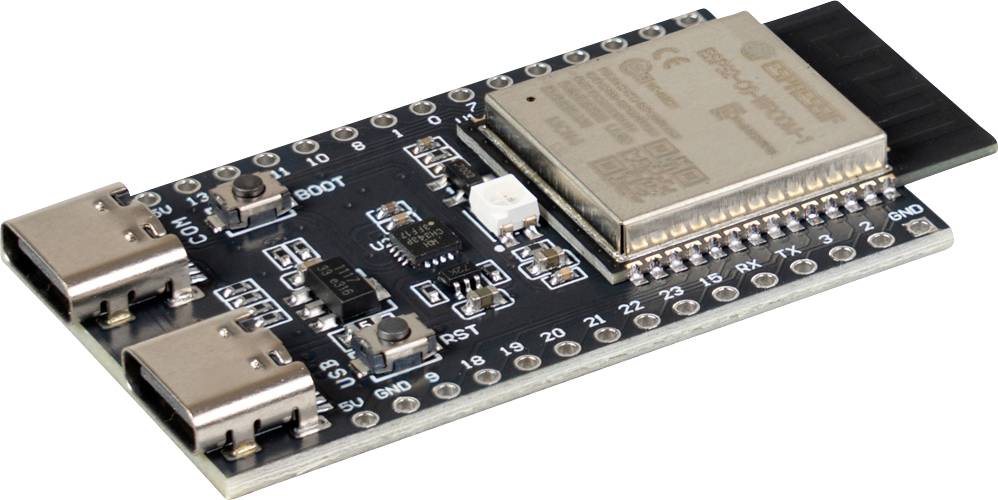

ESP32-C6 board, 2x USB-C, BT5, WLAN 802.11ax, Zigbee, thread, 3.3 & 5V
- 32-bit RISC-V single-core processor with a clock speed of up to 160 MHz
- Integrated support for 2.4 GHz Wi-Fi 6 (IEEE 802.11ax)
- Built-in BTLE, Zigbee, and thread connectivity
- Flexible power supply: 5 V via USB or 5 V pin, 3.3 V via 3 V pin
- USB Type-C interface for easy programming and troubleshooting
- 23 GPIO pins with built-in reset and boot buttons and RGB LED
Technical specifications
- ESP32-C6
- 32-bit RISC-V single-core microprocessor with 160 MHz
- WLAN IEEE 802.11ax 2.4 GHz, BT 5 (LE), Zigbee and
- Thread (802.15.4)
- ROM: 320KB
- RAM 512KB+
- INTERFACES: USB, UART, SPI, I²C, I²S, PWM, ADC
- Supply voltage 5 V via USB or 5 V pin, 3.3 V via 3 V pin
- Programming interfaces:
- ESP32-C6 USB type C connector, USB type C to UART connector
- GPIO pins 23
- Reset button, boot button, RGB LED (GPIO 8)
- Series
ESP32-C6
512 kB
- Bluetooth
5.0
- Wi-Fi
b/g/n/ax
- Length
53 mm
- Width
27.8 mm
- Height
4.8 mm
- Product type
PCB design board
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3802364 Joy-it ESP32C6 PCB design board ESP32C6 ESP32-C6
Description
ESP32‑C6 - Compact Wi‑Fi‑6 development board for professional IoT and Embedded projects
The ESP32‑C6 development board is a versatile platform for modern IoT, Smart Home and Industrial Automation applications. With its efficient 32-bit RISC-V single-core processor (up to 160 MHz), it offers reliable performance for power-saving embedded designs.
Future-proof radio technologies
With integrated 2.4 GHz Wi-Fi 6, Bluetooth LE, Zigbee and thread, the board enables seamless communication across a variety of wireless ecosystems. Ideal is suitable for interoperable devices, mesh networks and Matter-enabled applications.
Flexible supply & easy development
The board can be operated via USB‑C, the 5‑V pin or the 3.3‑V pin and can therefore be integrated without problems in development environments or customer-specific hardware setups. The USB‑C interface offers convenient programming and debugging, including USB‑to‑UART functionality.
Extensive connection options
With 23 GPIO pins, there are numerous options for sensors, actuators and external peripherals. Additional onboard features such as reset and boot keys as well as an RGB LED support development, test and status display.
Ideal for compact designs
Due to its small dimensions and the 2.54-mm pin spacing, the ESP32‑C6‑board is ideal for Rapid prototyping and space-critical embedded projects.
For detailed technical details, see the official Espressif ESP32‑C6 datasheet.
This text is machine translated.
The ESP32‑C6 development board is a versatile platform for modern IoT, Smart Home and Industrial Automation applications. With its efficient 32-bit RISC-V single-core processor (up to 160 MHz), it offers reliable performance for power-saving embedded designs.
Future-proof radio technologies
With integrated 2.4 GHz Wi-Fi 6, Bluetooth LE, Zigbee and thread, the board enables seamless communication across a variety of wireless ecosystems. Ideal is suitable for interoperable devices, mesh networks and Matter-enabled applications.
Flexible supply & easy development
The board can be operated via USB‑C, the 5‑V pin or the 3.3‑V pin and can therefore be integrated without problems in development environments or customer-specific hardware setups. The USB‑C interface offers convenient programming and debugging, including USB‑to‑UART functionality.
Extensive connection options
With 23 GPIO pins, there are numerous options for sensors, actuators and external peripherals. Additional onboard features such as reset and boot keys as well as an RGB LED support development, test and status display.
Ideal for compact designs
Due to its small dimensions and the 2.54-mm pin spacing, the ESP32‑C6‑board is ideal for Rapid prototyping and space-critical embedded projects.
For detailed technical details, see the official Espressif ESP32‑C6 datasheet.
This text is machine translated.
Scope of delivery

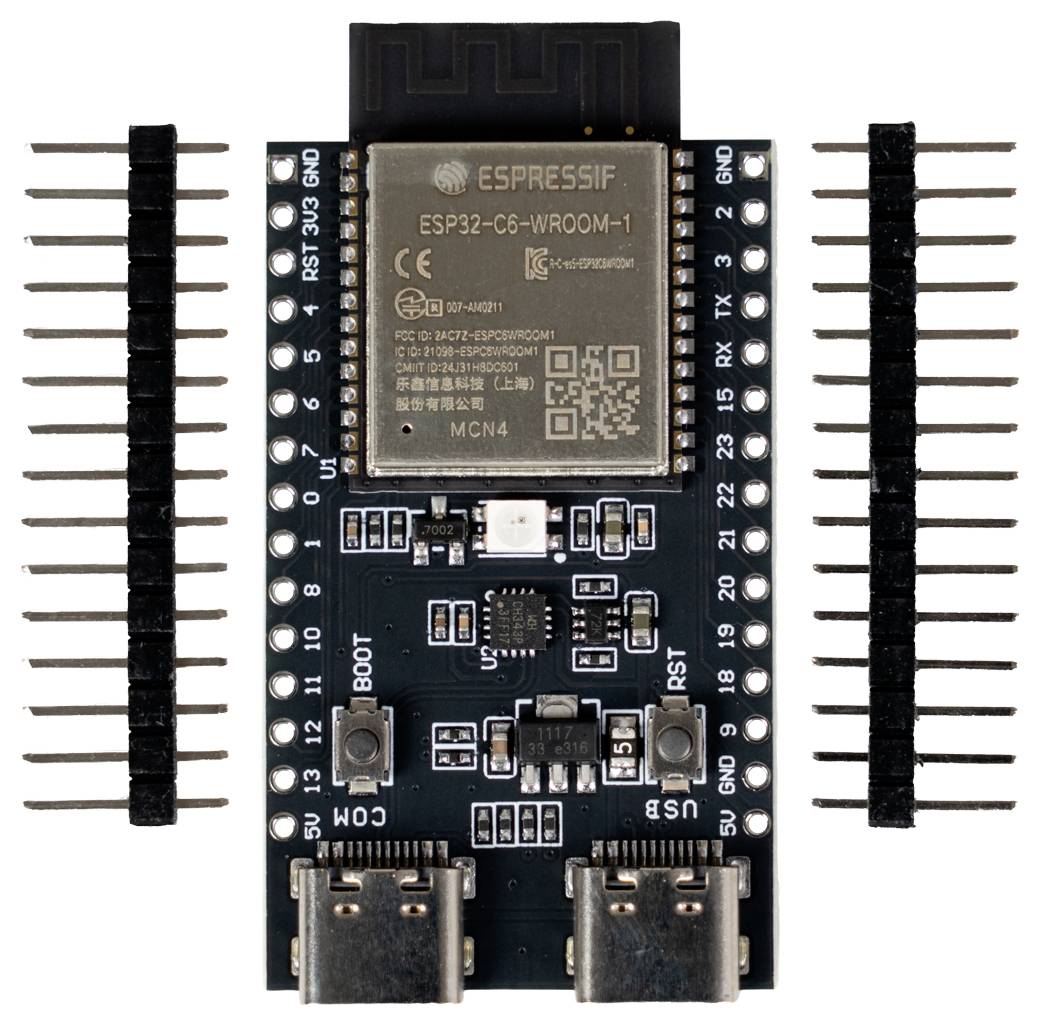

- Board, multi-pin connector
