Joy-it ESP32CP Programmer ESP32CP
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 4.19 / piece)
€ 4.19
plus VAT.
14-day return policy included
Highlights & Details
USB-C PROGRAMMING AND UART COMMUNICATION BOARD FOR SBC-ESP32-CAM
- Easy programming via USB type C.
- Designed for the Joy-it SBC ESP32-CAM
- Switchable Programming - and communication modes
- Integrated CH340C USB to UART converter
- RX and TX status LEDs
- 5 V power supply and 3.3 V logic level
Technical specifications
- More details can be found in the data sheet.
- Length
38 mm
- Width
27 mm
- Height
12 mm
- Product type
Programmer
Documents & Downloads
Datasheet
Datasheet 3802366 Joy-it ESP32CP Programmer ESP32CP
User & Safety Instructions
User & Safety Instructions 3802366 Joy-it ESP32CP Programmer ESP32CP
Description

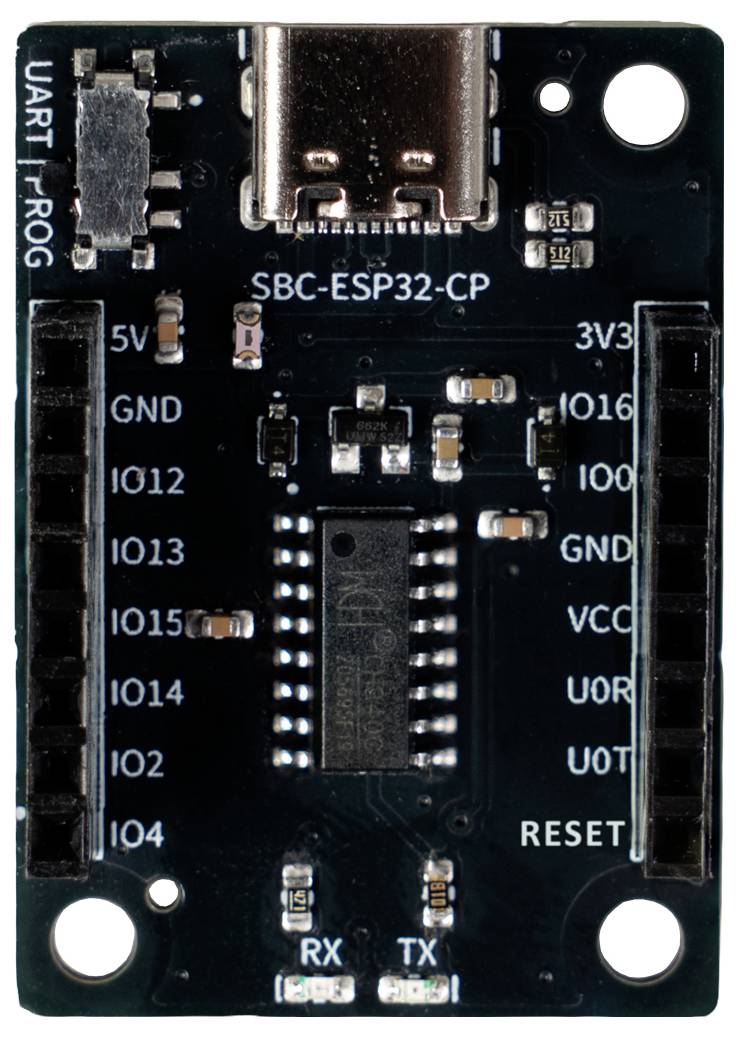

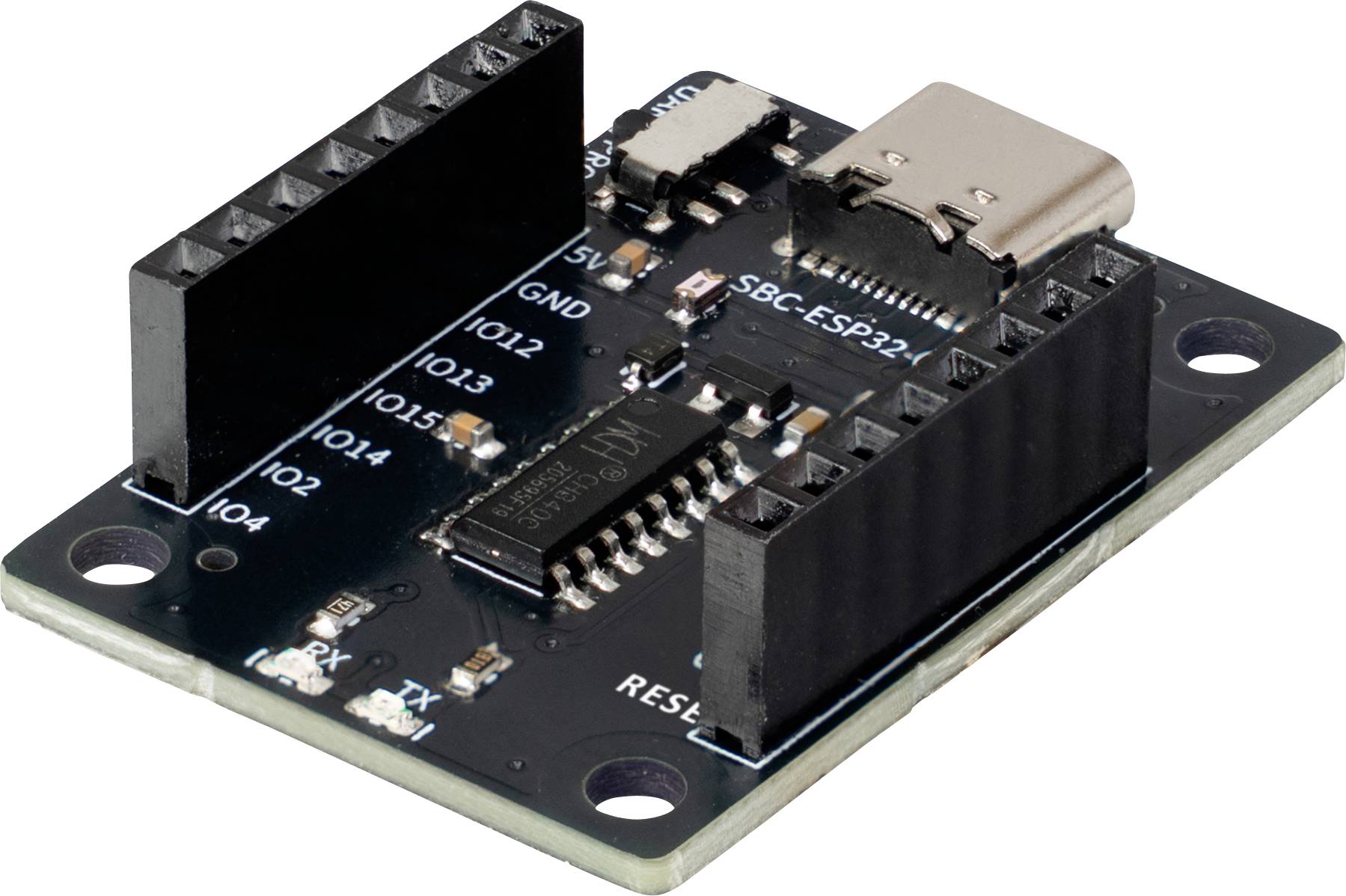

The SBC-ESP32-CP module is a compact one
Programming and communication board, for
The Joy-it SBC-ESP32-CAM board has been developed.
It enables easy programming of the
Camera module via the integrated USB type C interface,
So no additional USB-to-serial
Adapter is required. The integrated CH340C USB-to-
UART converters provide a reliable connection
Between the computer and the ESP32-CAM.
A convenient switch makes the fast possible
Switching between programming mode and UART communication mode.
This allows new software
Simply to the connected SBC-ESP32-CAM
upload and then directly via the serial
Interface with the module or
monitor this. Separate RX and TX status
LEDs clearly indicate active data transfer
And simplify monitoring during the
Programming, Development, and Troubleshooting.
The SBC-ESP32-CP module is powered by USB-C with 5 V.
And works with 3.3 V logic levels. Its good
Accessible connections and those especially on the SBCESP32
CAM enable coordinated pin assignment
Quick and easy setup. It
Ideal is therefore suitable for development projects,
Prototypes, test setups and applications
Cameras, WLAN or IoT functionality.
This text is machine translated.
Programming and communication board, for
The Joy-it SBC-ESP32-CAM board has been developed.
It enables easy programming of the
Camera module via the integrated USB type C interface,
So no additional USB-to-serial
Adapter is required. The integrated CH340C USB-to-
UART converters provide a reliable connection
Between the computer and the ESP32-CAM.
A convenient switch makes the fast possible
Switching between programming mode and UART communication mode.
This allows new software
Simply to the connected SBC-ESP32-CAM
upload and then directly via the serial
Interface with the module or
monitor this. Separate RX and TX status
LEDs clearly indicate active data transfer
And simplify monitoring during the
Programming, Development, and Troubleshooting.
The SBC-ESP32-CP module is powered by USB-C with 5 V.
And works with 3.3 V logic levels. Its good
Accessible connections and those especially on the SBCESP32
CAM enable coordinated pin assignment
Quick and easy setup. It
Ideal is therefore suitable for development projects,
Prototypes, test setups and applications
Cameras, WLAN or IoT functionality.
This text is machine translated.
Scope of delivery
- Module
