Buy Joy-it HX71160KG HX71160KG 60 KG load cell and amplifier circuit board, HX711-60 Calibrated to Manufacturer's standards

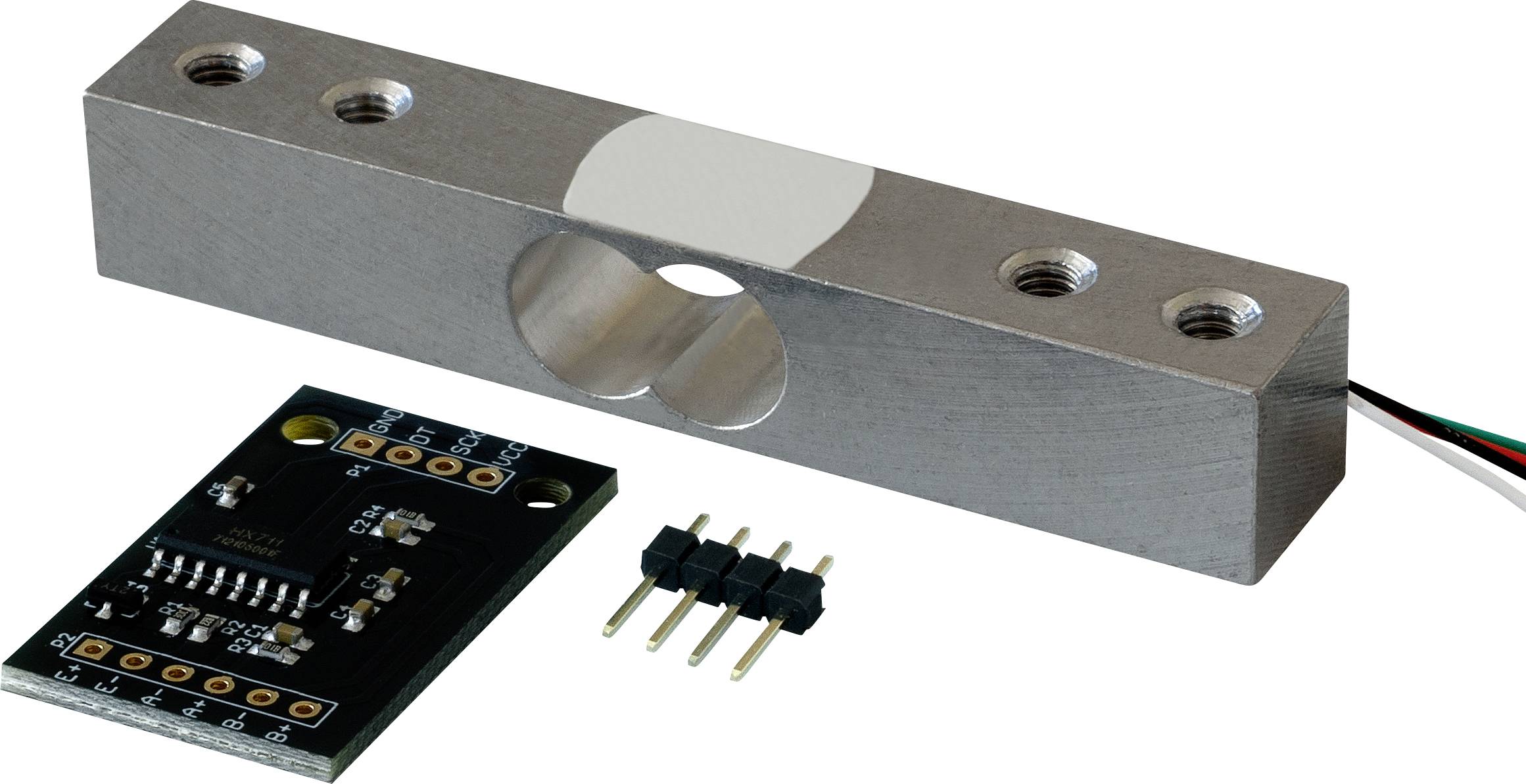

A metal load cell sensor with wires next to a small electronic circuit board, used for measuring weight in industrial applications.

Joy-it HX71160KG HX71160KG 60 KG load cell and amplifier circuit board, HX711-60 Calibrated to Manufacturer's standards -1

1/2

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

100 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 6.29 / piece)

€ 6.29

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

60 KG load cell and amplifier circuit board, HX711-60

Integrated 24-bit A/D converter
HX711-60
Accuracy +/-0.02% FS
Supply voltage 2.6 5.25 V
Power consumption: Less than 1.5 mA
Technical drawing in the download portal

Technical specifications

Integrated 24-bit A/D converter
HX711-60
Accuracy +/-0.02% FS
Supply voltage 2.6 5.25 V
Power consumption: Less than 1.5 mA
Dimensions PCB 34 x 20 x 3 mm
Load cell dimensions 80 x 15 x 14.2 mm
Interface: Serial; 2-wire
Cable length: 200mm
Weight: 34 g

Product type: Load cell

Weighing plate: Aluminium wrought alloy

Height: 15 mm

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 3451299 Joy-it HX71160KG HX71160KG 60 KG load cell and amplifier circuit board, HX711-60 Calibrated to Manufacturer's standards

User & Safety Instructions

User & Safety Instructions 3451299 Joy-it HX71160KG HX71160KG 60 KG load cell and amplifier circuit board, HX711-60 Calibrated to Manufacturer's standards

Description

You can use this load cell and amplifier board to build your own balance in conjunction with a microcontroller or single board computer.
The amplifier board contains an HX711 24-bit A/D converter, which converts the analogue signal of the load cell into a weight with high accuracy.
Because of its great popularity there are a lot of application examples for this converter on the Internet.

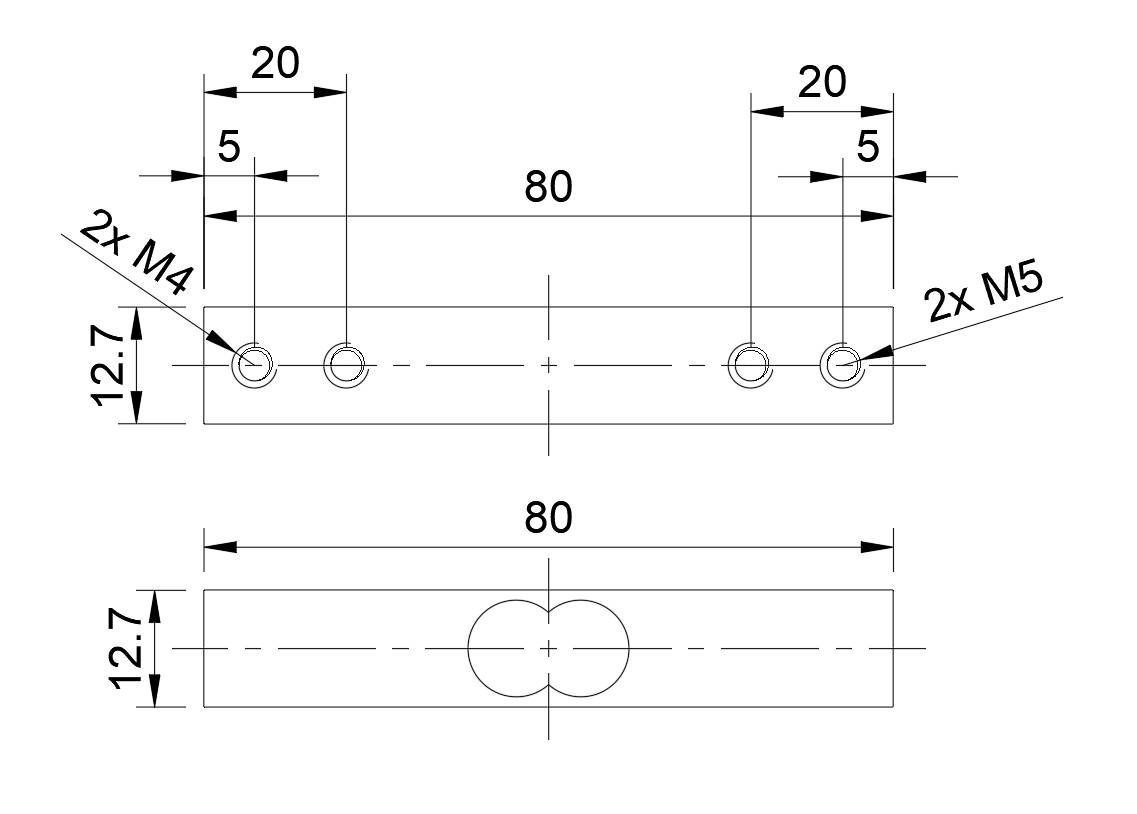

A detailed technical drawing with exact dimensions is available in the download area.

This text is machine translated.
