Name: Joy-it JDS-2960-60MHz Mains-powered, Signal generator 0 Hz - 60 MHz 2-channel Arbitrary, Triangle, Lorentz curve, Pulse,
Brand: Joy-it
SKU: 3345689

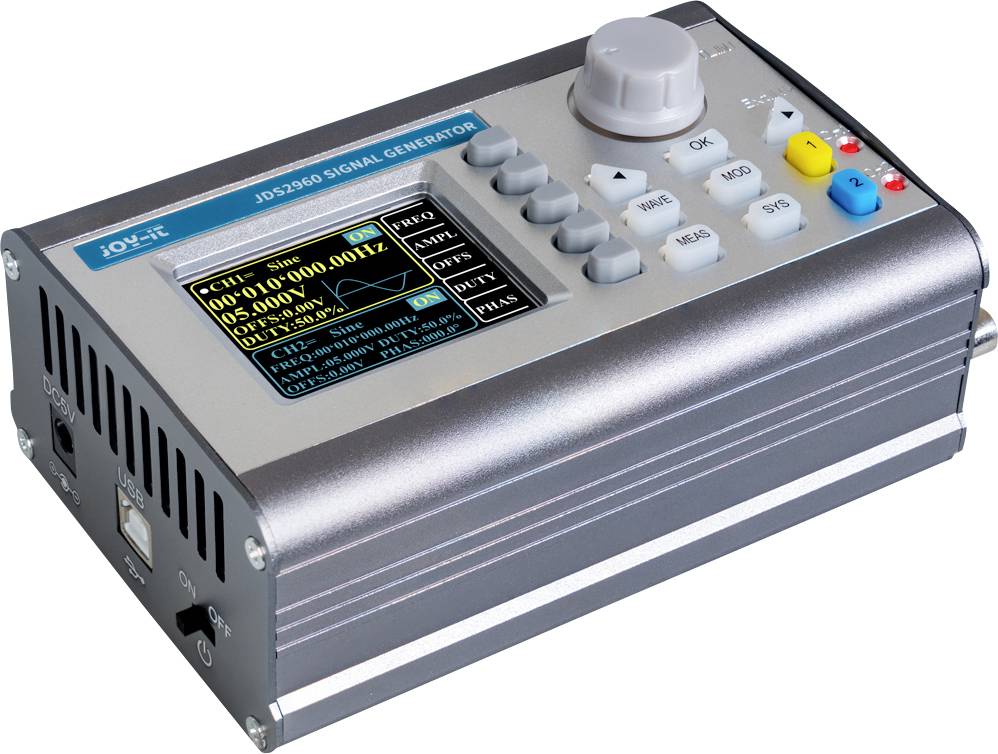

Digital signal generator with display and control buttons for adjusting frequency and waveform. Device for electronic measurements.

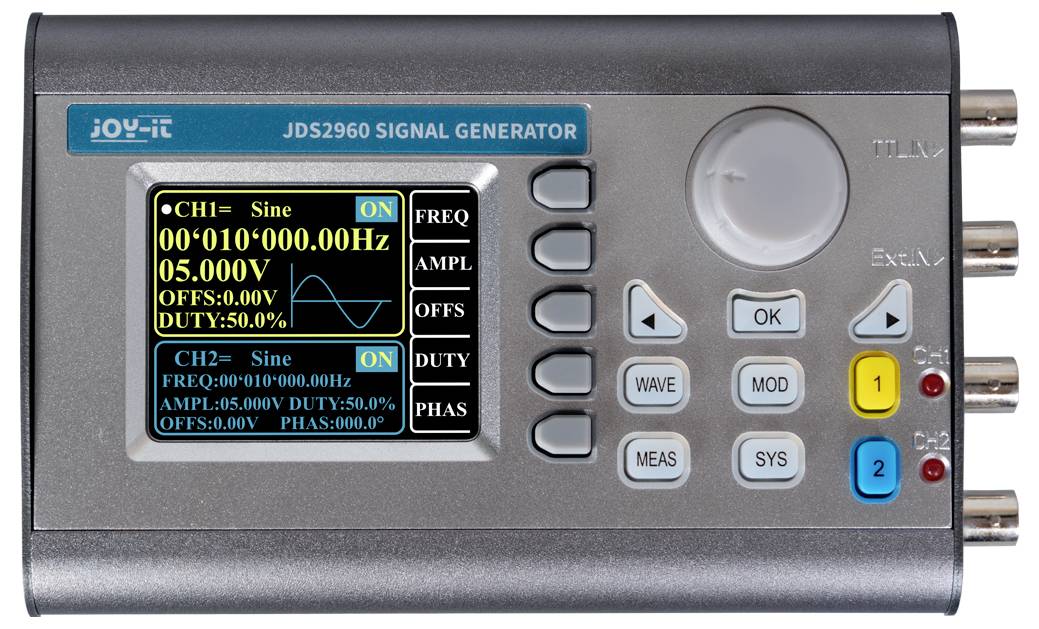

Signal generator with display showing frequency and amplitude. Control knobs for adjusting frequency, offset, and duty cycle.

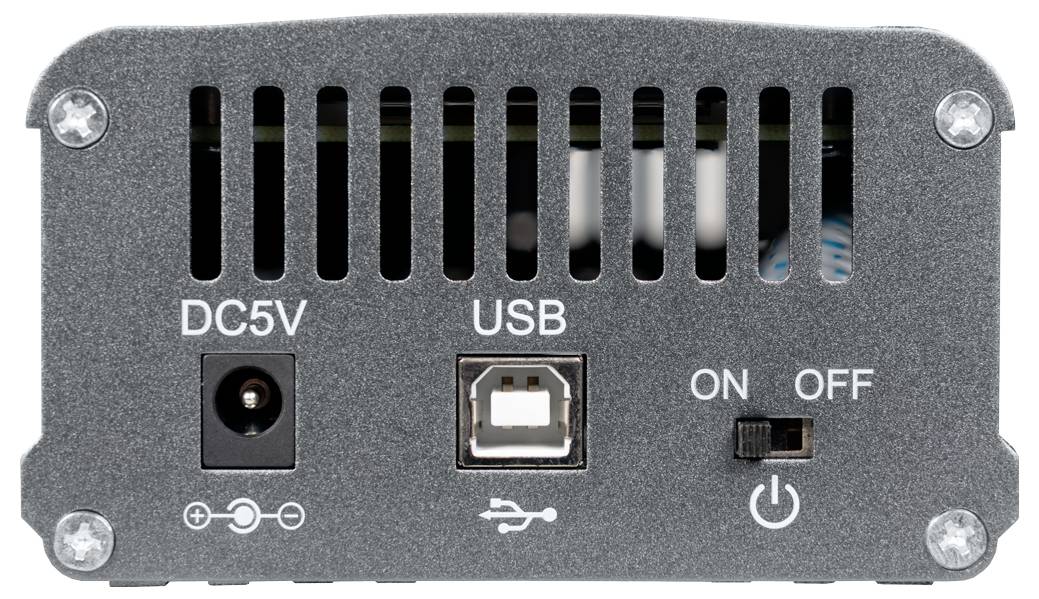

Device connection with ventilation slots. Shows DC5V power connection, USB-B socket, on/off switch.

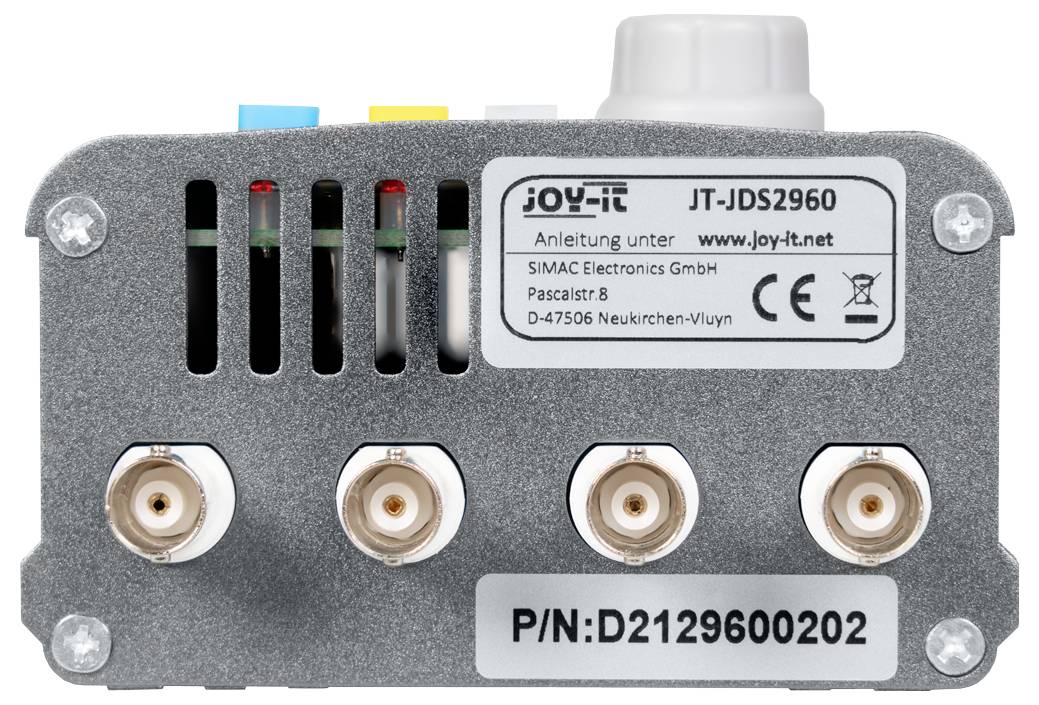

A grey electronic device with three coaxial connectors at the bottom, ventilation slots at the top, and a label displaying company information.

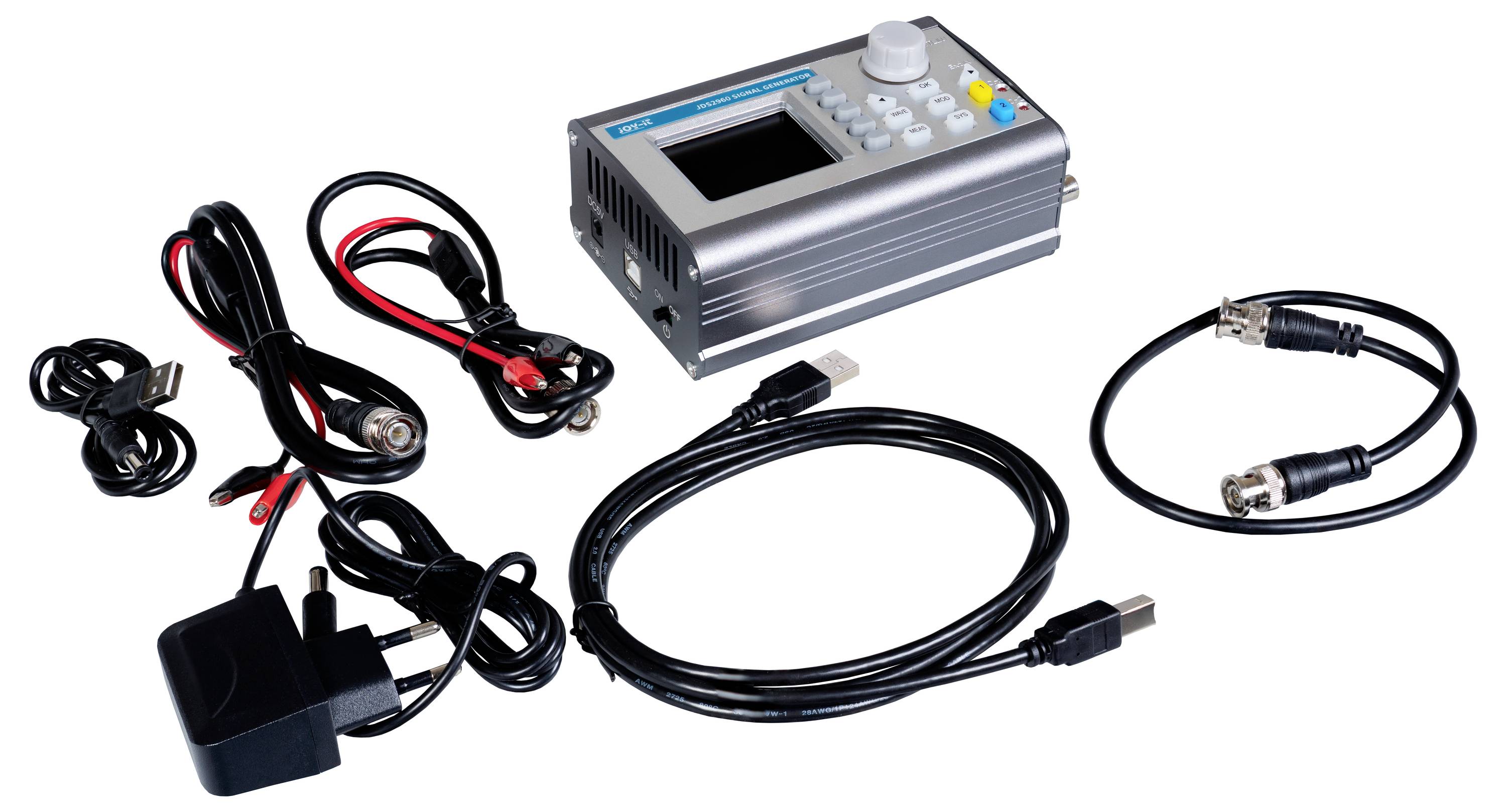

Various cables and an electronic charger with display and buttons, for technical use in power supply.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Mains-powered

Frequency range: 0 Hz - 60 MHz

Signal output types: Arbitrary
Triangle
Lorentz curve
Pulse
Ramp
Noise
Rectangle
Waveform
Sinus

Frequency range (sine): 0 - 60 MHz

Distortion factor (sine): kleiner 1% %

Frequency range square wave: 25 MHz

Square wave slew rate: unter10 ns

Display: LCD

Frequency range triangle: 25 MHz

ARB frequency range: 6 MHz

: Manufacturer's standards (no certificate)

Dim: (W x H) 145 mm x 55 mm

Weight: 900 g

No. of channels: 2-channel

Max. frequency: 60 MHz

Min. frequency: 0 Hz

Features: incl. cycle counter

Width: 145 mm

Height: 55 mm

Interfaces: USB

Voltage supply: Mains
USB

Type: JDS-2960-60MHz
